SHEL LAB CO2 Incubators serve a wide range of bacterial and cell growth applications using innovative technology to ensure uniform temperature and humidity levels within small error margins.

Features

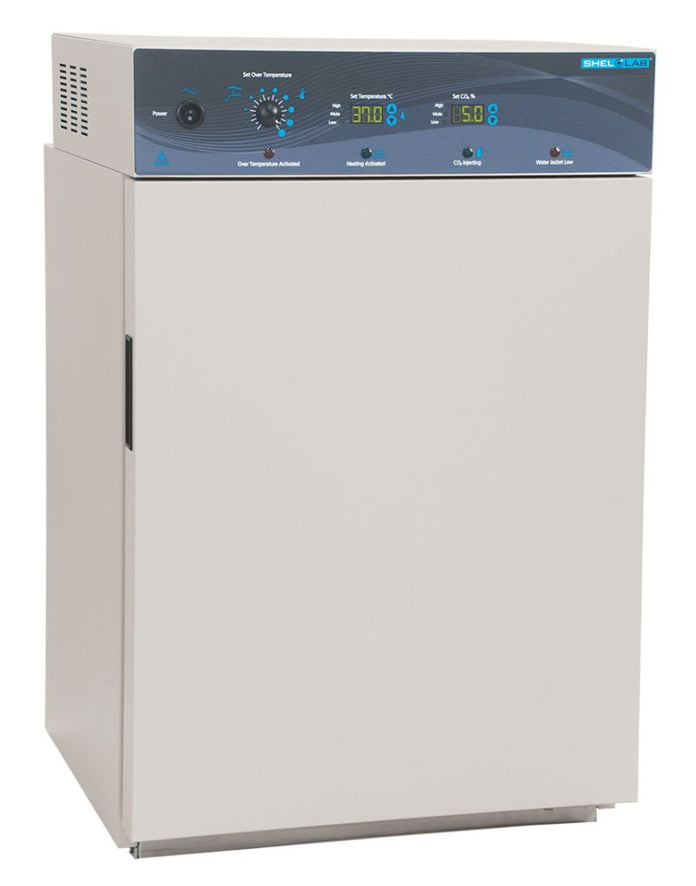

Model SCO6WE is our basic water-jacketed CO2 incubator and is ideal for laboratories with tight budgets. It provides the benefits of contamination control and uncompromising temperature uniformity for even the most demanding incubation needs. Although they do not have a humidity display, the extremely stable temperature environment maintains constant humidity through evaporation at up to 95%.



Standard Design Features



  • Infrared (IR) CO2 Sensor is extremely quick to recover CO2 levels after door openings and ensures superior pH stability
  • Unique water jacket design provides excellent temperature uniformity of +/-0.2°C at 37°C
  • Data logging capabilities



Designed to minimize contamination



  • Durable stainless steel chamber for easy cleaning
  • Heated door to ensure superior temperature uniformity and also reduce the potential for condensation to form on the inner glass door
  • Exclusive heated copper CO2 inlet not only promotes temperature uniformity but also prevents moisture from being introduced into the chamber
  • Copper shelving option
  • Autoclavable shelving system
  • Industry best warranty - 5 years parts and labor in the USA, 7 years on the IR sensor

Specifications

Overview

  • Nominal Height:
    40.3" (102.36 cm)
  • Nominal Width:
    26" (66.04 cm)
  • Nominal Length:
    26.3" (66.8 cm)
  • Internal Height:
    25.3" (64.26 cm)
  • Internal Width:
    20.3" (51.56 cm)
  • Internal Length:
    19.8" (50.29 cm)
  • Capacity:
    5.9

Technical Data

  • Shelf Dimensions (W x D):
    19.1 x 19.1 (485 mm x 485 mm)
  • Unit Weight:
    260 lbs (117.9 kg)
  • Interior Metal:
    300 SST
  • Exterior Metal:
    Painted Cold Roll Steel
  • Operating Temperature Range:
    Amb +5°C - 60°C
  • Temperature Uniformity - Midrange:
    0.2°C
  • Temperature Stability - Midrange:
    0.1°C
  • Controller Type:
    Digital
  • Display Resolution:
    0.1°C
  • Power Voltage, Frequency and Current:
    110-120 VAC, 50/60 Hz, 5.0 Amps
  • Safety Certifications:
    UL 61010-1, EN 61010-1, CSA 61010-1, CE
  • Exterior Construction:
    20 gauge steel, powder coated
  • Shelves (See Accessories):
    3 standard, 8 total
  • Maximum Weight Per Shelf:
    35 lb/15.8 kg
  • Permitted Total Load:
    200 lb/90.7 kg

Selection

  • Voltage:
    110V-120V
  • Full Load Amps:
    5.0
  • Nominal Power (watts @37°C):
    420
  • Recommended Breaker, Amps:
    15
  • Plug Supplied:
    NEMA5-15P
  • CO2 Range:
    1-20%
  • Recovery CO2 at 5%:
    < 5 min.
  • Sensor Type:
    Infrared
  • Humidity Range Passive (Ambient 95%):
    Yes
  • Temperature Uniformity At 37°C:
    ± 0.2°C
  • Temperature Range Recovery 37°C:
    Recovery to 37°C after 30 sec, Door Opening 4.0 min.

Accessories

  • CO2 Cylinder Regulator, Dual Stage:
    9740558
  • Caster Platform:
    9000538
  • Stacking Rack:
    9751223
  • Copper Shelf Kit (Includes 3 Shelves, 6 Shelf Slides):
    9750582
  • Extra Shelf ,Copper (Max Weight 35 lbs (15.8kg)):
    5820504
  • Extra Slide, Copper:
    5820505
  • Extra Stainless Steel Shelf and Slide Kit, (Max. Weight 35 lb (15.8kg)):
    9751235
