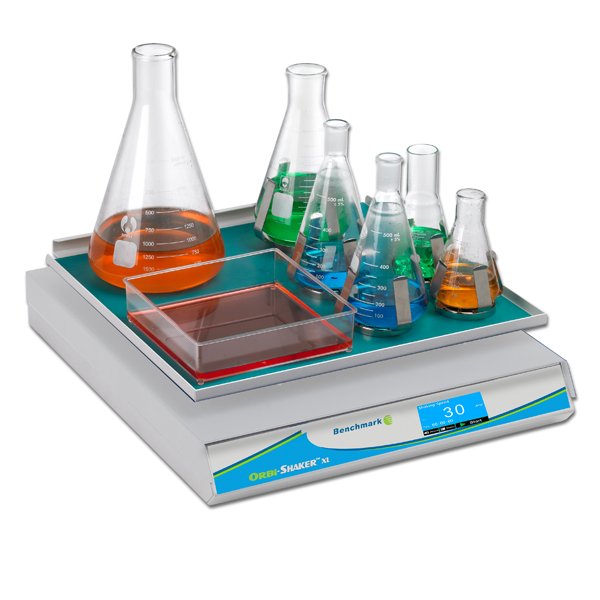

Benchmark Scientific - BT1011 - Orbi-Shaker™ XL with Touch Screen Display and Rubber Mat Platform (18"x18")
Features
The Orbi-Shaker XL offers flask capacity that far exceeds that of most benchtop models. With a large 18x18 inch platform and a powerful, beltless motor drive, the Orbi-Shaker XL is capable of mixing up to five 2L flasks or nine 1L flasks simultaneously. The included, non-slip rubber mat platform is ideal for low speed applications, while the convenient MAGic Clamp™ platform is also available for high speed mixing of Erlenmeyer flasks, tube racks or microplates. The MAGic Clamp™ allows for instant flask clamp exchange without the use of tools, screws or any other hardware.
- Large 18x18", up to 5x2L
- Convenient, Benchtop design
- Horizontally circular 19mm orbit for aeration & mixing
- Instantly change flask clamps with MAGic Clamp™ accessories (PATENTED)
Specifications
Overview
-
Nominal Height:5" (12.7 cm)
-
Nominal Width:18.5" (46.99 cm)
-
Nominal Length:21.25" (53.98 cm)
Technical Data
-
Speed Range:Variable 30 to 300 rpm
-
Speed Increment:1 rpm
-
Orbit:19mm
-
Timer:1 min to 99 hr or countinous
-
Platform Size:18 x 18 in (45 x 45 cm)
-
Load Capacity:5 x 2L or 9 x 1L / 65 lbs (30 kg)
-
Ambient Operating Temperature:+4°C to +65°C
-
Weight:65 lbs (30 kg)
-
Electrical:120 or 230V 50-60Hz
-
Power Consumption:50W
-
Warranty:2 years
Downloads
-
Orbi-Shaker™ XL with Touch Screen Display and rubber mat platform (18"x18") BrochureDownload
