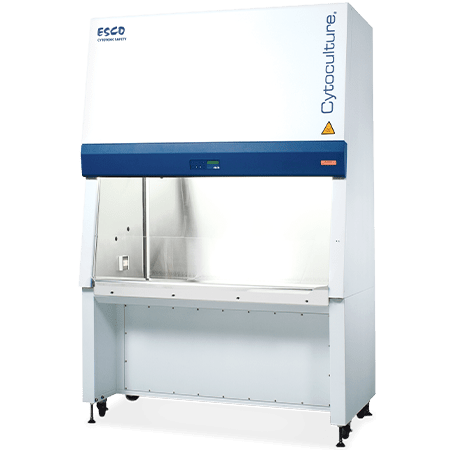

ESCO - CYT-6A2 - Cytotoxic Safety Cabinet

ESCO - CYT-6A2 - Cytotoxic Safety Cabinet

ESCO - CYT-6A2 - Cytotoxic Safety Cabinet

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Cytotoxic safety cabinet, 6ft/1.8m, 115VAC, 60 HZ, with additional HEPA filter underneath the work zone for safe filter changing, microprocessor controller & airflow monitor, external 79.9"W x 32.1"D x 86.2"H (2030 x 815 x 2190 mm).

Features

Esco's Cytoculture® Cytotoxic Safety Cabinet is the premium solution for cytotoxic/antineoplastic drug processing; providing the highest level of patient, pharmacist, and environmental protection. This revolutionary product builds on Esco's experience of more than 20 years as a global leader in biological safety containment technology.



The unique demands of handling and preparing cytotoxic drugs for use in chemotherapy require a specialized cabinet. With this in mind, Esco has developed a highly specialized cabinet designed especially for the preparation of these potentially dangerous drugs.



  • Sentinel™ Microprocessor controller supervises all functions
  • Meets the requirements of the European Standard EN 12469 for microbiological safety cabinets
  • Provides you with the highest level of operator safety to protect you and your personnel from the cytotoxic and other hazardous compounds
  • Motorized sash helps simplify transfer of materials into the work zone
  • Highest level of cleanliness within the work zone for patient safety and product cleanliness
  • Esco Isocide™ antimicrobial coating on all painted surfaces minimizes contamination
  • Dual long-life ULPA filters for supply and exhaust airflow
  • Additional secondary HEPA exhaust filter
  • Filters can be changed without exposing the ambient environment and service personnel to potential hazards
  • Spacious knee room maximizes operator comfort, 245mm (9.6") inward
  • Angled front improves reach into the work zone and prevents glare off the sliding sash
  • Available in 1.2 and 1.8m models (4' and 6')



Key Benefits



  • Safe filter changing
  • Safer dual exhaust filters
  • HEPA certified to EN 12469



Principle



  • Air enters the cabinet through perforations located in front of the work zone before mixing with used downflow air in a common chamber below the work zone (this air does not mix with the filtered downflow air in the cabinet's main chamber). This mixed air then passes through the HEPA filter located beneath the work zone.
  • The HEPA filtered air then passes through the internal ducting, in the back wall of the cabinet, to a common air plenum where 35% is exhausted through the ULPA exhaust filter and 65% is forced evenly through the ULPA supply filter. This sterilized air serves as the supply downflow, flushing all contaminants from the cabinet's work zone.
  • The supply laminar air in the work zone splits and enters the perforations, located at the front and rear-side of the chamber, to reach the common air plenum beneath the work zone; wherein the cycle is repeated.



Accessories



  • Anti-Blowback Valve
  • Carbon Filter Option – alternative option to V-shaped HEPA filter
  • Thimble Exhaust Collar – 10 inches in diameter
  • UV Lamp
  • Electrical outlet
  • Service fixtures

Specifications

Overview

  • Nominal Height:
    86.2" (218.95 cm)
  • Nominal Width:
    79.9" (202.95 cm)
  • Nominal Length:
    33.3" (84.58 cm)
  • Internal Height:
    26.4" (67.06 cm)
  • Internal Width:
    73.6" (186.94 cm)
  • Internal Length:
    24.4" (61.98 cm)

Technical Data

  • Nominal Size:
    1.8 meters (6')
  • Usable Work Area:
    0.90 m2 (9.7 sq.ft.)
  • Tested Opening:
    203 mm (8.0")
  • Maximum Sash Opening:
    440 mm
  • ULPA Filter Typical Efficiency - Downflow:
    >99.9995% for particle size at 0.3 µm as per IEST-RP-CC001.3 USA
  • ULPA Filter Typical Efficiency - Exhaust:
    99.999% for particle size at 0.1 to 0.2 µm as per IEST-RP-CC001.3 USA
  • HEPA V-bank Filter Typical Efficiency - Exhaust:
    99.999% at 0.3 µm as per IEST-RP-CC001.3 USA
  • Sound Emission Per EN 12469:
    63 dBA
  • LED Lamp Intensity at Zero Ambient:
    >1000 Lux (>93 foot candles)
  • Net Weight:
    500 kg (1102 lbs)
  • Shipping Weight:
    578 kg (1274 lbs)
  • Shipping Dimensions, Maximum (W x D x H):
    2170 x 930 x 2230 mm (85.4" x 36.6" x 87.8")
  • Shipping Volume, Maximum:
    4.49 m3 (158.6 ft³)

Average Airflow Velocity - Exhaust Volume with Ducting

  • Average Airflow Velocity - Inflow:
    0.45 m/s (90 fpm)
  • Average Airflow Velocity - Downflow:
    0.30 m/s (60 fpm)
  • Exhaust Volume with Ducting - Inflow:
    0.45 m/s (90 fpm)
  • Exhaust Volume with Ducting - Downflow:
    0.30 m/s (60 fpm)
  • Exhaust Volume with Ducting - CBV Exhaust Volume:
    931 m3/h (548 cfm)
  • Exhaust Volume with Ducting - Static Pressure at CBV Exhaust Volume:
    63 Pa/0.25 in H2O

Cabinet Construction - Electrical (110-120V,AC, 60 Hz, 1Ø)

  • Cabinet Construction - External:
    1.5 mm (0.06") 16 gauge electrogalvanized steel with Isocide white oven-baked epoxy powder-coating
  • Cabinet Construction - Internal:
    Stainless steel Type 304 with No.4 finish, 1.5 mm (0.06")/16 gauge thick
  • Electrical - Cabinet Full Load Amps (FLA):
    11.5A
  • Electrical - Optional Outlets FLA:
    5A
  • Electrical - Cabinet Nominal Power:
    793W
  • Electrical - Cabinet BTU:
    2706 BTU/hr
