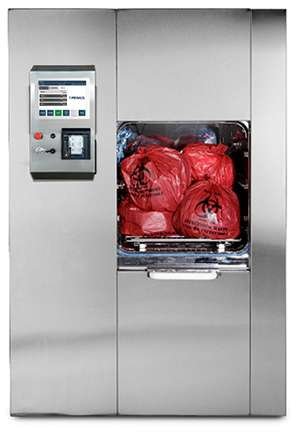

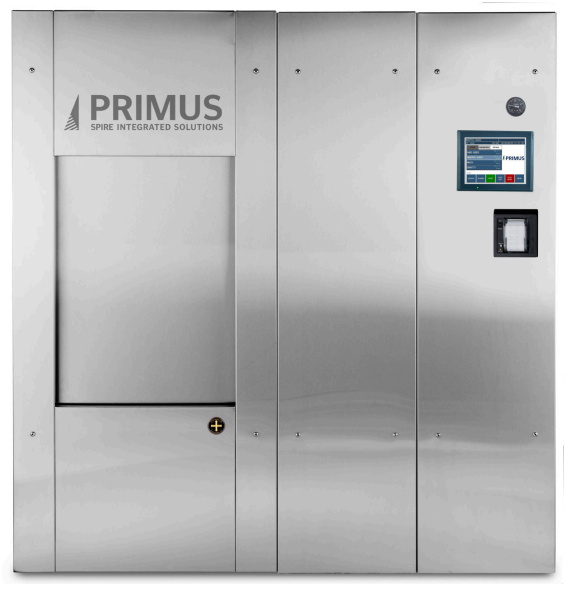

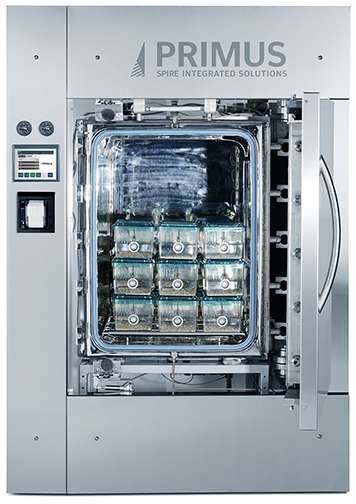

Spire PRIMUS - PSS11-H-ME-DD - Medium Laboratory Boiler Sterilizers Double Door Model H

Features
PRIMUS® medium sterilizers come in multiple chamber configurations for your application. Designed for simplicity in operation and serviceability, these models are ideal for use in research laboratories, bio-containment environments, and animal care facilities.
Intelligent design focuses on ease of use, simplified diagnostics, and clear service access for maximum uptime.
- Vessel design features a stainless steel, fully-jacketed 316L chamber. The vessel is insulated and mounted on a steel frame, which offers adjustable feet on self-centering floor pads.
- Horizontally sliding doors are energy-efficient, safe, and operated by simple touchscreen activation
- Rectangular chamber eliminates wasted space and reduces high utility costs common to cylindrical or elliptical designs
- All chambers are polished to a mirror finish of 10 Ra for enhanced corrosion resistance and optimal stainless steel performance
- Non-proprietary parts allow for immediate diagnostics and easy replacement of worn components
- Gravity, vacuum, and liquid cycles come standard with additional test cycles for process challenge, low temperature and effluent decontamination cycles available
- Configurable controls adapt to meet a variety of applications
- Water conservation system (PRI-Saver®) offers up to 95% water savings
- Predictive maintenance functionality via PLC-based controls increases uptime by monitoring critical components
- Ease of service designed into the system and supported by PRIMUS Authorized Service Agents
Specifications
Overview
-
Nominal Height:86" (218.44 cm)
-
Nominal Width:97" (246.38 cm)
-
Nominal Length:79.38" (201.63 cm)
-
Capacity:53
Dimensions Chart Double Door
-
Chamber Size (in/mm):36 x 42 x 60 / 914.4 x 1066.8 x 1524
-
Knockdown Width:52.06 / 1322.3
-
Wall Opening Width:100.00 / 2540
-
Wall Opening Height:85.00 / 2159
-
Wall Opening Length:74.19 / 1884.4
-
Fascia Width:102.00 / 2590.8
-
Fascia Height:86.00 / 2184.4
-
Floor to Chamber:24.00 / 609.6
Downloads
-
Medium Steam Sterilizers BrochureDownload
