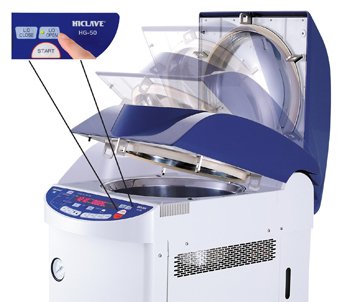

Hirayama HG-Series autoclaves with an innovative feature. Just press a button to automatically open the lid, or close and lock it.

Features

The HG-Series include 4 models with innovative features and functions. The chamber diameter of the HG-50 and HG-80 is 14.3" (36.4 cm) while the chamber diameter of the larger HG-113 and HG-133 is 19.7" (50.0 cm). Features and functions include the following:



  • Automatic Lid Opening Button replaces a foot pedal.
  • Automatic Lid Closing Button closes lid conveniently and safely.
  • Safety Interlock senses pressure and temperature and prevents lid from opening during a cycle, when the chamber is pressurized, and when the high temperature can cause boil over.
  • Programmable Auto-Start for running a cycle from 1 to 99 hours later.
  • Large (15 liters) / Efficient Steam Condenser ensures no steam exhausts into the lab. The HG-113 and HG-133 incorporate a radiator for this.
  • Over-Flow Lamp indicates that the drain bottle is full and ready to be emptied.
  • Built-in Cooling Fan for faster post-sterilization cooling and shorter completion time.
  • Selectable Rate of steam venting after sterilization.
  • Programmable Time for air removal before sterilization.
  • Twelve Programs Cycles can be stored.

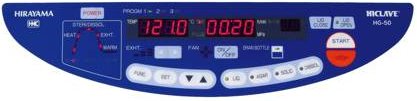

  • Large Control and Display Panel improves functionality and shows the progress of the sterilization cycle.

Specifications

Overview

  • Nominal Height:
    35" (88.9 cm)
  • Nominal Width:
    19.7" (50.04 cm)
  • Nominal Length:
    27.2" (69.09 cm)

Technical Data

  • Chamber (D x H):
    50 liters, 14.3" x 28.7" (36.4 x 73.0 cm)
  • Temperature Range:
    105°C to 135°C
  • Sterilization Timer:
    1 to 300 minutes
  • Agar Warming Range:
    After sterilization, agar can be maintained from 45°C to 60°C (programmable) for up to 24 hours to prevent coagulation
  • Delayed Auto-Start:
    Program autoclave to start 1 to 99 hours later
  • Cooling Fan:
    Switch to turn fan on or off
  • Air Removal Timer:
    Programmable, 3 to 9 minutes after temperature has reached 97°C
  • Steam Venting - Selectable From:
    No venting and three other venting rates
  • Steam Condenser:
    15L water tank
  • Drain Water Bottle:
    2 liters
  • Power Requirements:
    120V or 220V, 50/60 Hz, single phase
  • Power Consumption:
    2.0kW, optional 3.0kW for 220V only
  • Shipping Weight:
    180 lb (82 kg)
