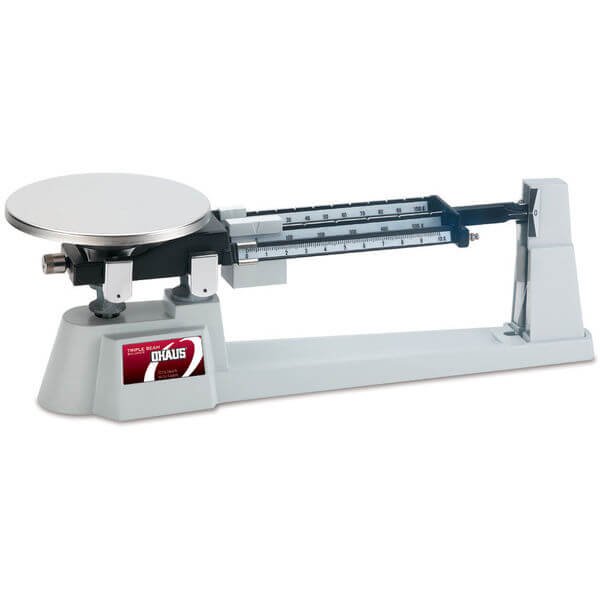

Ohaus - 80000013 - Triple Beam Balance 700 Series Mechanical Scale, 760-00

Ohaus - 80000013 - Triple Beam Balance 700 Series Mechanical Scale, 760-00

Ohaus - 80000013 - Triple Beam Balance 700 Series Mechanical Scale, 760-00

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
The Standard by Which All Other Mechanical Balances Are Measured.

Features

The OHAUS Triple Beam continues to set the standard for accuracy and durability for mechanical balances. The Triple Beam is recognized around the world as the number one mechanical balance for precise weight determination and long-term use.


Applications


Weighing


Display


Easy to-read deep-notched, tiered beams and dial plates


Construction


Metal base and beam, stainless steel pan


Design Features


Easy-to-read notched and tiered beams, self-aligning beam design, magnetic dampening to minimize oscillation and speed weighing, zero adjust compensator

Specifications

Overview

  • Nominal Height:
    6.62" (16.81 cm)
  • Nominal Width:
    6.35" (16.13 cm)
  • Nominal Length:
    17.76" (45.11 cm)

Technical Data

  • Maximum Capacity:
    610 g
  • Readability:
    0.1 g
  • Pan Size:
    2.38 in x 6 in (60.5 mm x 152 mm)
  • Pan Type:
    Fixed Pan
  • Linearity ±:
    0.1 g
  • Net Weight:
    2.3 kg
  • Pan Construction:
    Stainless Steel
  • Power:
    No Power Required
  • Tare Range:
    0g-225g
  • Units of Measurement:
    Gram
