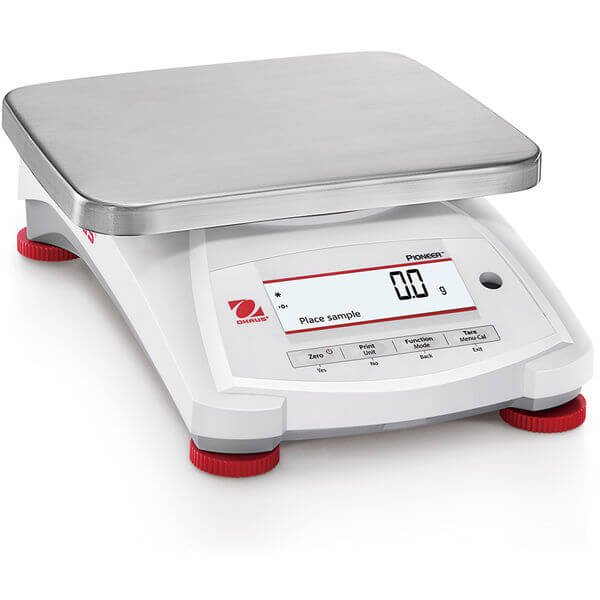

Ohaus - 30868076 - Pioneer™ Precision High CapacityBalance PX12001/E

Ohaus - 30868076 - Pioneer™ Precision High CapacityBalance PX12001/E

Ohaus - 30868076 - Pioneer™ Precision High CapacityBalance PX12001/E

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Affordable Balance to Achieve Reliable Results.

Features

The Pioneer PX Series combines essential weighing functionality with competitive performance, offering high accuracy and repeatability for applications in laboratory, industrial and educational settings. The PX is affordably priced, and intuitively designed for intelligent operation with a second line display for additional information, and USB and RS232 connectivity for easy communication.


Applications


Basic Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination, Formulation.


Display


2-Line LCD with Backlight


Operation


Power Adaptor


Communication


RS232, USB


Construction


Metal base, plastic top housing, removable stainless steel pan, weigh-below-hook


Design Features


User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, userselectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator, four operating languages.

Specifications

Overview

  • Nominal Height:
    3.98" (10.11 cm)
  • Nominal Width:
    8.23" (20.9 cm)
  • Nominal Length:
    12.64" (32.11 cm)

Technical Data

  • Maximum Capacity:
    12,000 g
  • Readability:
    0.1 g
  • Pan Size:
    248 mm x 193 mm
  • Auxiliary Display Model:
    Available as an Accessory
  • Communication:
    USB, RS232
  • Display:
    2-Line LCD with Backlight
  • In-Use Cover:
    Included
  • Linearity ±:
    0.2 g
  • Minimum Weight (USP, 0.1%, Typical):
    160 g
  • Net Weight:
    7.7 lb (3.5 kg)
  • Pan Construction:
    Stainless Steel
  • Power:
    AC Adapter (Included)
  • Repeatability, Typical:
    0.1 g
  • Stabilization Time:
    1 s
  • Tare Range:
    To capacity by subtraction
  • Units of Measurement:
    Singapore Tael, Pennyweight, Ounce Troy, Kilogram, Grain, Tical, Custom, Milligram, Newton, Momme, Taiwan Tael, Baht, Gram, Hong Kong Tael, Pound, Tola, Mesghal, Ounce, Carat
  • Working Environment:
    operability guaranteed between 41°F and 104°F, 50°F - 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C, 10°C - 30°C, 80%RH, non-condensing)
