Portable Precision Ready for the Field.

Features

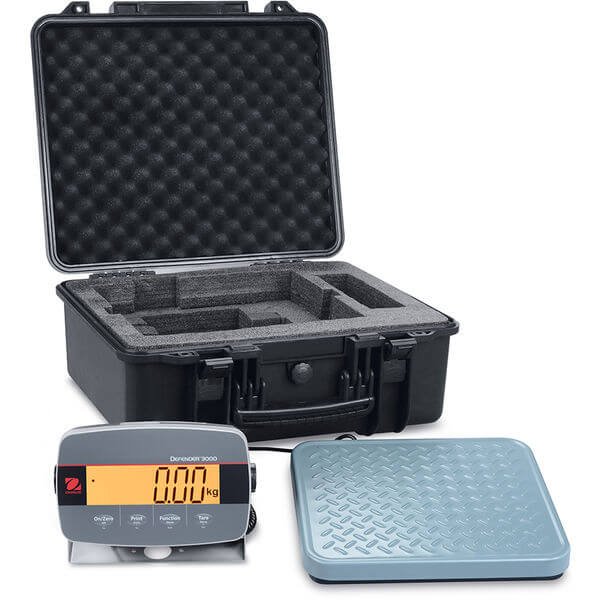

The OHAUS Digital Field Test Scale is designed for precision material testing in the construction industry. With a capacity of 150lb and readability up to 0.05lb, you won’t have to sacrifice precision for portability. Key features include the durable plastic carrying case and dry cell battery with power for up to 150 hours, making the Field Test Scale a powerful addition to any job site.


Applications


Weighing, Parts Counting, Checkweighing, and Totalization.


Display


Segment LCD with Multicolor Backlight.


Operation


Internal power supply with power cord (included), 6C (LR14) batteries (not included) or rechargeable battery (optional).


Communication


Standard RS232 and optional USB Device or Ethernet.


Construction


ABS plastic indicator and case, powder-coated steel base.


Design Features


Flexible coiled cable (extendable up to 9 ft.), 125% overload protection, selectable span calibration points, auto-zero tracking, battery-saving auto-off, Geo Code geographical gravity calibration adjustment, and software menu lockouts.

Specifications

Overview

  • Nominal Height:
    8.3" (21.08 cm)
  • Nominal Width:
    19.3" (49.02 cm)
  • Nominal Length:
    16.9" (42.93 cm)

Technical Data

  • Maximum Capacity:
    150 lb (75 kg)
  • Readability:
    0.05 lb (0.02 kg)
  • Platform Size (LxW):
    12.4 in x 11 in (316 mm x 280 mm)
  • Legal for Trade:
    Not Applicable
  • Power:
    6 C (LR14) Batteries (Not Included), Rechargeable Battery (Not Included), AC Power (Included)
  • Battery Life:
    72 Hours with Rechargeable Battery, 120 Hours with Disposable Batteries
  • Communication:
    Ethernet (Available as an Accessory), RS232 (Included), USB (Available as an Accessory)
  • Display:
    7 Segment LCD with multicolor backlight
  • Net Weight:
    19.8 lb (9 kg)
  • Outputs:
    Not Applicable
  • Platform Construction:
    Painted Steel Diamond Plate
  • Protection Rating:
    Not Applicable
  • Second Scale Input:
    Not Applicable
  • Tare Range:
    To capacity by subtraction
  • Units of Measurement:
    Metric Tons, Gram, Kilogram, Pound, Ounce
  • Working Environment:
    -10°C - 40°C, 85%RH, non-condensing (14°F - 104°F, 85%RH, non-condensing)
