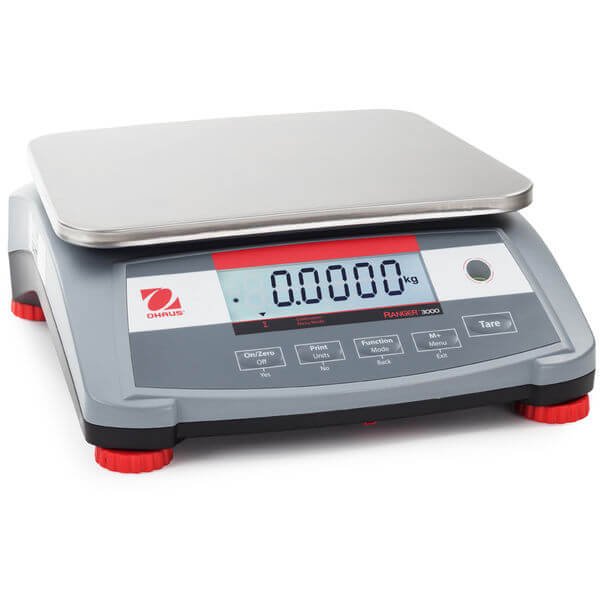

Ohaus - 30031711 - Ranger™ 3000 Compact Scale, R31P30 AM

Ohaus - 30031711 - Ranger™ 3000 Compact Scale, R31P30 AM

Ohaus - 30031711 - Ranger™ 3000 Compact Scale, R31P30 AM

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Multi-Purpose Compact Bench Scales for Industrial Weighing Applications.

Features

The multipurpose Ranger 3000 has all of the capabilities to produce precise results rapidly for a variety of applications. With seven application modes, Ranger 3000 is the ideal scale to meet many industrial weighing needs. Portable and equipped with a rechargeable battery, this scale is beneficial in every corner of the factory and is equipped with functions and features that elevate the Ranger 3000 to a class of its own.


Applications


Weighing, Parts Counting, Checkweighing, Percent Weighing, Animal/Dynamic Weighing, Display Hold, Accumulation


Display


Backlit liquid crystal display (LCD), 3 color checkweighing LEDs


Operation


AC power (included) or rechargeable battery (included)


Communication


Easy access communication port including standard RS232 (included) and second RS232, USB or Ethernet (accessories sold separately)


Construction


ABS housing, stainless steel platform, menu lock switch, up-front level indicator, integral weigh-below hook, transportation handle


Design Features


210 hours of battery life, 3 LED checkweighing lights with selectable operation and audible signal settings, selectable environmental and auto-print settings, auto shut-off, auto tare

Specifications

Overview

  • Nominal Height:
    4.6" (11.68 cm)
  • Nominal Width:
    12.9" (32.77 cm)
  • Nominal Length:
    12.2" (30.99 cm)

Technical Data

  • Maximum Capacity:
    60 lb (30 kg)
  • Readability:
    0.002 lb (1 g)
  • Readability (Certified):
    0.02 lb (10 g)
  • Platform Size:
    8.9 in x 11.8 in (225 mm x 300 mm)
  • Legal for Trade:
    NTEP Certified, Measurement Canada Approved
  • Power:
    AC Power (Included), Rechargeable Battery (Included)
  • Battery Life:
    210 Hours with Rechargeable Battery
  • Communication:
    2nd RS232 (Available as an Accessory), Ethernet (Available as an Accessory), RS232 (Included), USB (Available as an Accessory)
  • Display:
    LCD with white LED backlight + 3 LED
  • In-Use Cover:
    Available as an Accessory
  • Linearity ±:
    2 g
  • Net Weight:
    9.2 lb (4.2 kg)
  • Platform Construction:
    Stainless Steel
  • Protection Rating:
    Not Applicable
  • Tare Range:
    To capacity by subtraction
  • Transportation Case:
    Available as an Accessory
  • Units of Measurement:
    Gram, Kilogram, Pound, Ounce, Pound, Ounce
  • Working Environment:
    14°F - 104°F, 85%RH, non-condensing (-10°C - 40°C, 85%RH, non-condensing)
