Lab Research Products - CRT-LRP-HC-UCFS-0204G - 2.5 Cu. Ft. Undercounter Controlled Room Temperature Cabinet, Freestanding, Glass Door

Features
The Undercounter Controlled Room Temperature Cabinets feature a microprocessor temperature controller and display which allows for precise temperature control, verification, and recovery. An interior fan-driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. Medications are secured with an extensive package of audible and visual alarms.
A controlled temperature environment will ensure approved storage, preventing unnecessary expenses and product recalls.
Lab Research Products is Going Green! We are an industry leader in providing a variety of Refrigerators and Freezers built with Hydrocarbon Refrigerants, R290 or R600a.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
These models are designed with cooling functionality only. They are NOT designed with a heating function to protect against temperatures below 68ºF (20ºC).
Freestanding models require 4" of clearance around the back and sides of the unit for proper ventilation. Improper installation will void the warranty and lead to temperature maintenance issues, overheating, and possible failure.
Details
- Four adjustable shelves (two large, two small) with guard rail on back to prevent product from being pushed against the back wall
- Back wall evaporator cover
- Vaccine storage power cord warning label
- Forced draft circulation
- Keyed door lock
- Magnetic door gasket for positive seal
- Leveling legs
- LED interior light
- HFC-free refrigerant (R600a), foam insulation, and packaging
- Two-year parts and labor warranty, plus an additional three-year compressor parts only warranty
- Energy Star Certified
- Note: This unit must have 4" clearance on sides and back for adequate ventilation
Controller

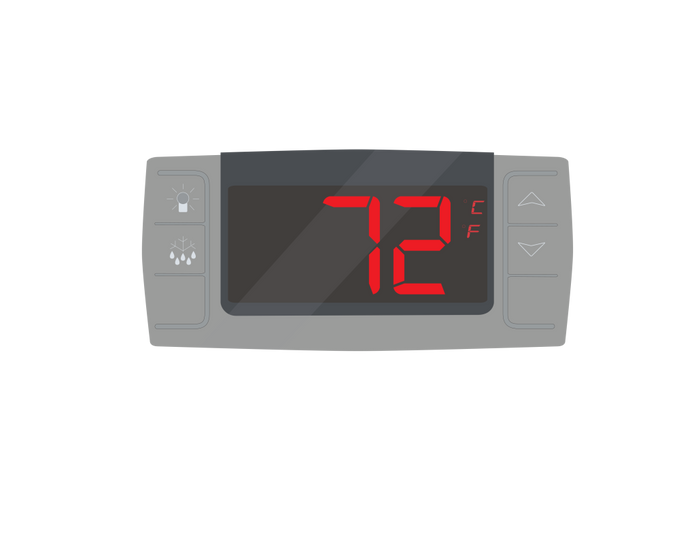

- Microprocessor temperature controller
- Adjustable operating temperature range: 68°F to 77°F (20°C to 25°C)
- Digital temperature display
- Audible and visual high and low temperature alarms
- Remote alarm contacts
- 2 probes; 1 in air and 1 in sample bottle
- Temperature monitor device (TMD) complies with the current CDC guidelines, with 3 years certification of calibration, "buffered" probe in the product simulated solution, min/max memory. F/C switchable, field installable, and visual & audible temp alarm
Specifications
Overview
-
Nominal Height:28.8" (73.15 cm)
-
Nominal Width:17.75" (45.09 cm)
-
Nominal Length:19.5" (49.53 cm)
-
Internal Height:23.25" (59.06 cm)
-
Internal Width:14.25" (36.2 cm)
-
Internal Length:13.25" (33.66 cm)
-
Capacity:2.5
Technical Data
-
Defrost:Cycle
-
Door:1 Glass
-
Int Door:0
-
Shelves:4 Adj.
-
Refrigerant:R600a
-
H.P.:0.12
-
Amps:.90
-
Weight:68 lbs.
Drawings
-
CRT-LRP-HC-UCFS-0204G Ext CutsheetVisit Link
-
CRT-LRP-HC-UCFS-0204G Int CutsheetVisit Link
Useful Links
-
CRT-LRP-HC-UCFS-0204G SpecSheetVisit Link
