American Biotech Supply - PH-ABT-HC-S72G - 72 Cu. Ft. Standard Pharmacy Glass Door Refrigerator

Features

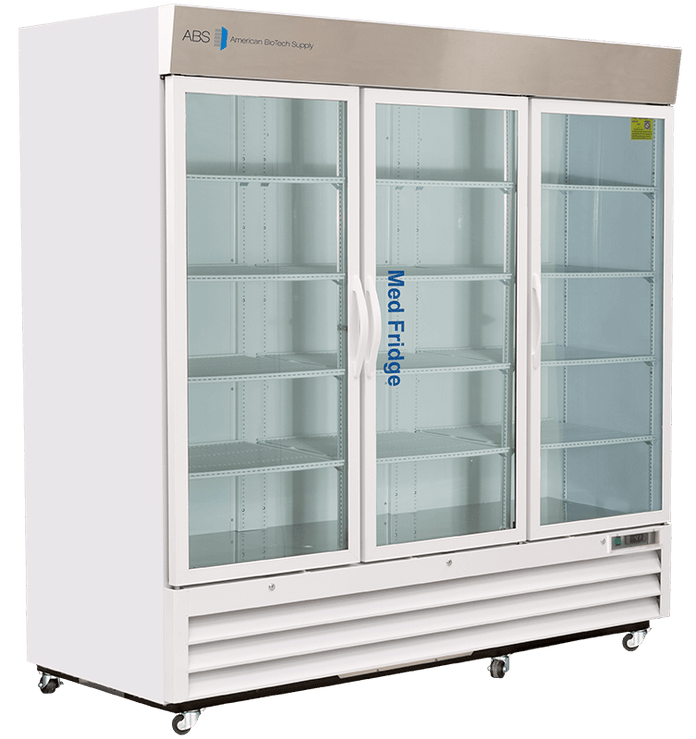

The Pharmacy Standard Glass Laboratory Refrigerators are purpose built for scientific and medical applications. Standard Series Glass Door Laboratory Refrigerators feature a digital microprocessor temperature controller allowing for the precise temperature management necessary for critical samples and supplies. A forced air directional refrigeration system provides superior temperature uniformity and recovery after door openings.
The temperature display and alarm module offers product security with a monitoring and alarm system. Real-time sample simulated temperatures are constantly displayed and supported by audible/visual high and low temperature alarms.
The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C and 8°C) in the refrigerator and -58°F to 5°F (or -50°C to -15°C) in the freezer.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details
- Keyed door lock
- Magnetic door gasket for positive seal
- Heavy duty door handles
- Swivel Casters (3.5")
- LED interior lights are safety shielded and switch controlled
- Hydrocarbon, natural refrigerant (R290)
- Pharmacy refrigerator/freezer toolkit and temperature logs
- One year parts and labor warranty, plus an additional four year compressor parts warranty

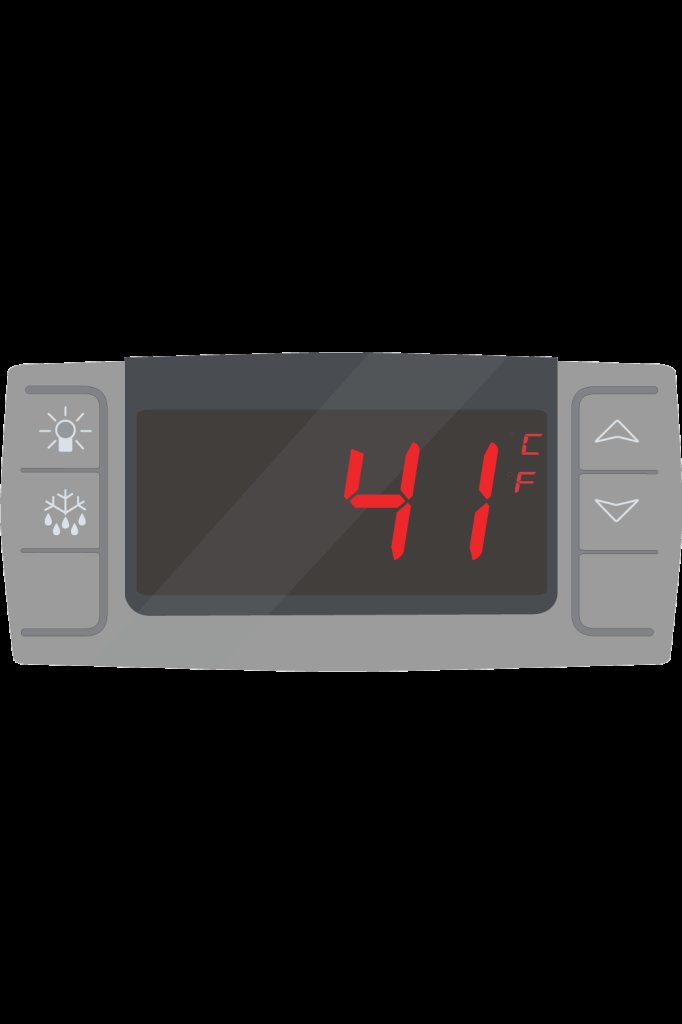

Temp Controller
- Microprocessor temperature controller
- Digital temperature display
- Audible and visual high and low temperature alarms
- Remote alarm contacts
- 2 probes; 1 in air and 1 in sample bottle
- Adjustable operating temperature range: 36°F to 46°F (2°C to 8°C)
- Temperature monitor device (TMD) complies with the current CDC guidelines, with 3 years certification of calibration, "buffered" probe in the product simulated solution, min/max memory. F/C switchable, field installable, and visual & audible temp alarm
Specifications
Overview
-
Nominal Height:81.75" (207.65 cm)
-
Nominal Width:81" (205.74 cm)
-
Nominal Length:34" (86.36 cm)
-
Internal Height:52.25" (132.72 cm)
-
Internal Width:76" (193.04 cm)
-
Internal Length:24.75" (62.87 cm)
-
Capacity:72
Specifications
-
Defrost:Cycle
-
Door:3 Glass
-
Int Door:0
-
Shelves:12 Adj
-
Refrigerant:R290
-
H.P.:0.5
-
Amps:7.5
-
Weight:693 lbs.
Drawings
-
PH-ABT-HC-S72G Ext CutsheetVisit Link
-
PH-ABT-HC-S72G Int CutsheetVisit Link
Useful Links
-
PH-ABT-HC-S72G SpecSheetVisit Link
