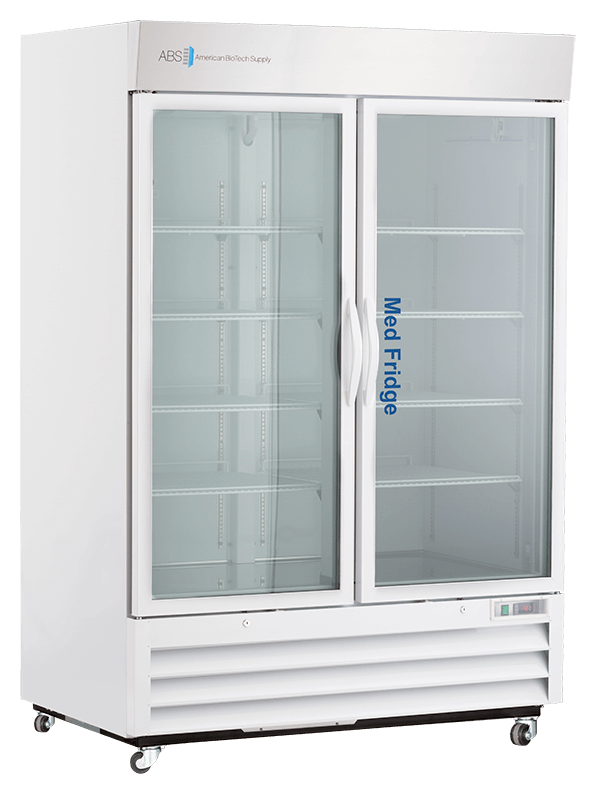

American Biotech Supply - PH-ABT-HC-S49G - 49 Cu. Ft. Swing Glass Door Upright Pharmacy Refrigerator

American Biotech Supply - PH-ABT-HC-S49G - 49 Cu. Ft. Swing Glass Door Upright Pharmacy Refrigerator
American Biotech Supply - PH-ABT-HC-S49G - 49 Cu. Ft. Swing Glass Door Upright Pharmacy Refrigerator

American Biotech Supply - PH-ABT-HC-S49G - 49 Cu. Ft. Swing Glass Door Upright Pharmacy Refrigerator

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
The Pharmacy Standard Glass Laboratory Refrigerators are purpose built for scientific and medical applications. Standard Series Glass Door Laboratory Refrigerators feature a digital microprocessor temperature controller allowing for the precise temperature management necessary for critical samples and supplies. A forced air directional refrigeration system provides superior temperature uniformity and recovery after door openings.

Features

The Pharmacy Standard Glass Laboratory Refrigerators are purpose-built for scientific and medical applications. Standard Series Glass Door Laboratory Refrigerators feature a digital microprocessor temperature controller, allowing for the precise temperature management necessary for critical samples and supplies. A forced air directional refrigeration system provides superior temperature uniformity and recovery after door openings.



The temperature display and alarm module offers product security with a monitoring and alarm system. Real-time sample simulated temperatures are constantly displayed and supported by audible/visual high and low-temperature alarms.



The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C to 8°C) in the refrigerator and -58°F to 5°F (or -50°C to -15°C) in the freezer.



Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.



Details



  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Heavy-duty door handles
  • Swivel casters (3.5")
  • LED interior lights are safety shielded and switch-controlled
  • High-density urethane foam cabinet insulation
  • Hydrocarbon, natural refrigerant (R290)
  • Pharmacy refrigerator/freezer toolkit and temperature logs
  • One-year parts and labor warranty, plus an additional four-year compressor parts warranty

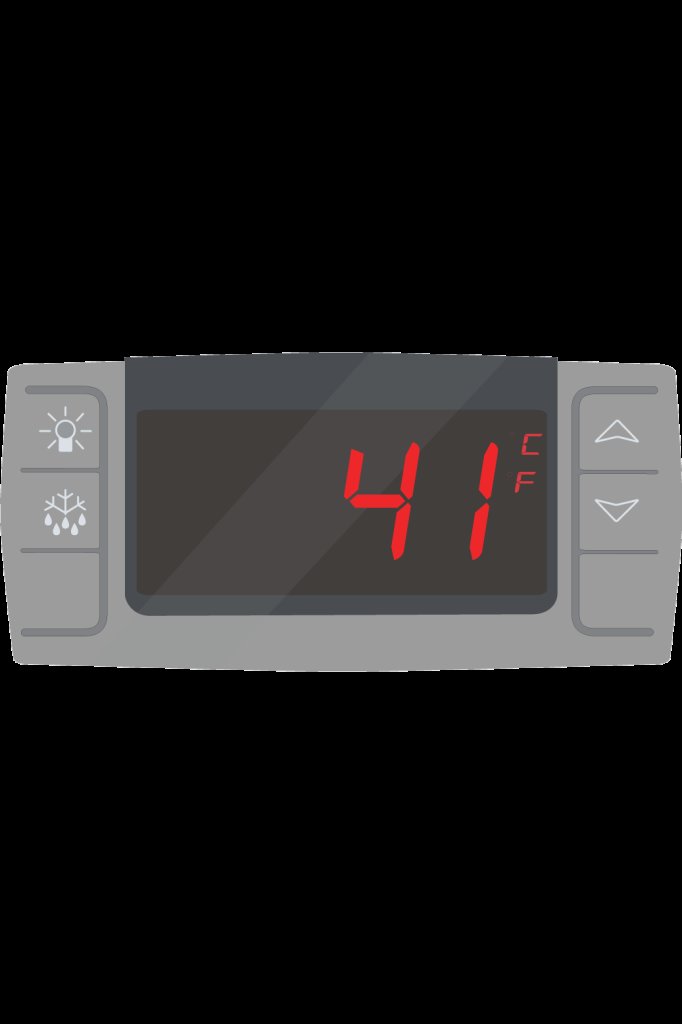

Temp Controller



  • Microprocessor temperature controller
  • Digital temperature display
  • Audible and visual high and low-temperature alarms
  • Remote alarm contacts
  • 2 probes: 1 in air and 1 in sample bottle
  • Adjustable operating temperature range: 36°F to 46°F (2°C to 8°C)
  • Temperature monitoring device (TMD) complies with current CDC guidelines
  • 3 years certification of calibration
  • "Buffered" probe in product simulated solution
  • Min/max memory
  • F/C switchable
  • Field installable
  • Visual and audible temperature alarms

Specifications

Overview

  • Nominal Height:
    81.75" (207.65 cm)
  • Nominal Width:
    54" (137.16 cm)
  • Nominal Length:
    34.75" (88.27 cm)
  • Internal Height:
    52.5" (133.35 cm)
  • Internal Width:
    49" (124.46 cm)
  • Internal Length:
    24.63" (62.56 cm)
  • Capacity:
    49

Technical Data

  • Defrost:
    Cycle
  • Door:
    2 Glass
  • Int Door:
    0
  • Shelves:
    8 Adj
  • Refrigerant:
    R290
  • H.P.:
    0.25
  • Amps:
    4.5
  • Weight:
    488 lbs.
