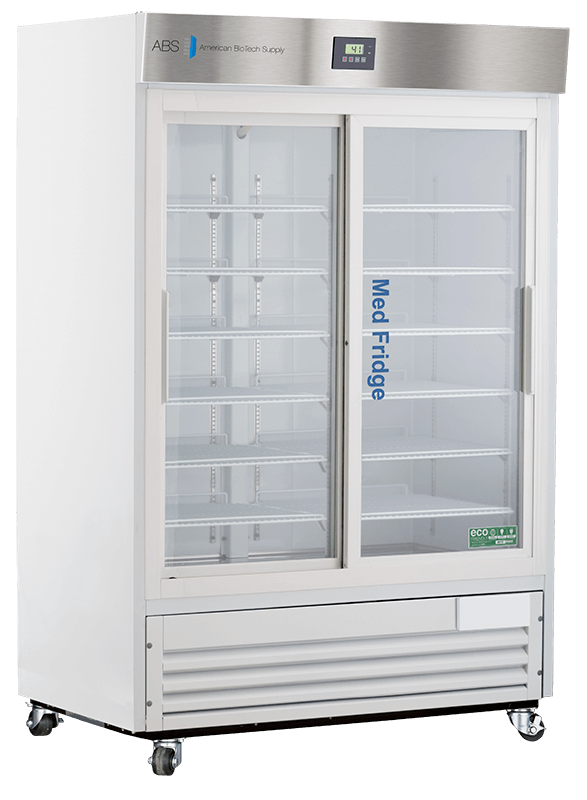

American Biotech Supply - PH-ABT-HC-47G - 47 Cu. Ft. Pharmacy Glass Door Refrigerator

Features
Pharmacy Premier Series Refrigerators are Large Capacity Refrigerator Units for High Volume Pharmacies. Standard features include a microprocessor temperature controller and display for superior temperature control, verification, and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. An extensive package of audible and visual alarms is provided to protect critical samples and vaccines.
The temperature display and alarm module offers an array of robust security features with a monitoring and alarm system that is 100% independent of a microprocessor temperature controller for additional product security.
The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C to 8°C) in the refrigerator and -58°F to 5°F (or -50°C to -15°C) in freezers.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details
- Sensor error alarm
- Power failure alarm
- Resettable 1-point Min/Max History
- Remote alarm contacts
- Alarm validation (audible, visual, and remote alarm)
- Alarm mute with ring back
- Vaccine storage power cord warning label
- 12 total shelves, 8 adjustable plus 4 additional
- Forced draft air circulation
Temp Controller
- Microprocessor Temperature Controller
- Adjustable operating temperature range: 36°F to 46°F (2°C to 8°C)
- Temperature monitor device (TMD) complies with the current CDC guidelines, with 3 years certification of calibration, "buffered" probe in the product simulated solution, min/max memory. F/C switchable, field installable, and visual & audible temp alarm

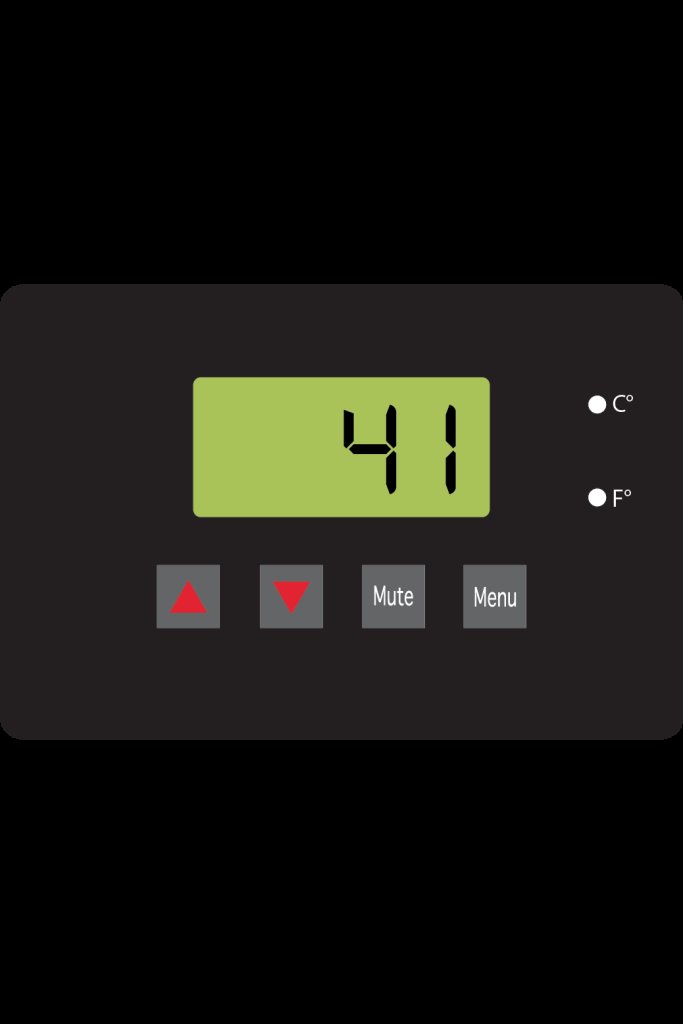

- Standard Digital Temperature Display and Alarm Module with battery back-up to support temperature monitoring and alarms
- Sample simulated digital temperature display; .1° Resolution
- Adjustable temperature display in Celsius or Fahrenheit
- Audible and visual high/low temperature alarms
- 2 probes; 1 in air and 1 in sample bottle
Specifications
Overview
-
Nominal Height:81.75" (207.65 cm)
-
Nominal Width:54.13" (137.49 cm)
-
Nominal Length:33.25" (84.46 cm)
-
Internal Height:52.5" (133.35 cm)
-
Internal Width:48.63" (123.52 cm)
-
Internal Length:23" (58.42 cm)
-
Capacity:47
Technical Data
-
Defrost:Cycle
-
Door:2 Glass (Sliding)
-
Int Door:0
-
Shelves:12 Adj
-
Refrigerant:R290
-
H.P.:0.25
-
Amps:4.5
-
Weight:458 lbs.
Drawings
-
PH-ABT-HC-47G Ext CutsheetVisit Link
-
PH-ABT-HC-47G Int CutsheetVisit Link
Useful Links
-
PH-ABT-HC-47G SpecSheetVisit Link
