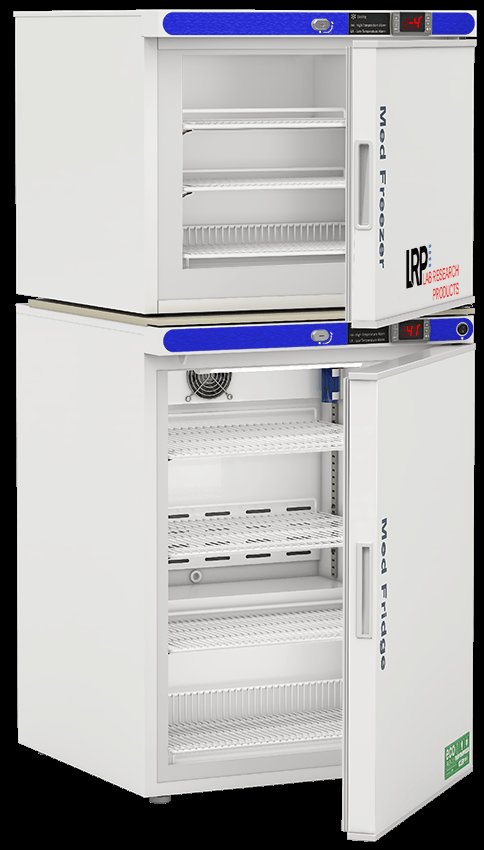

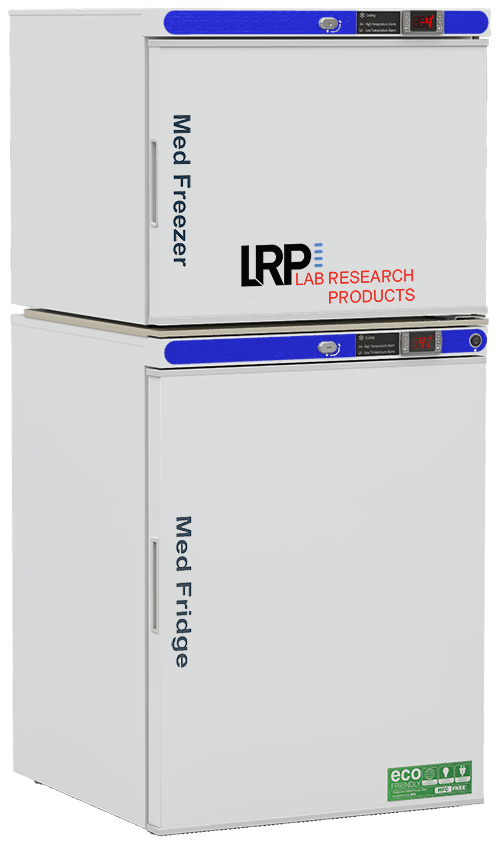

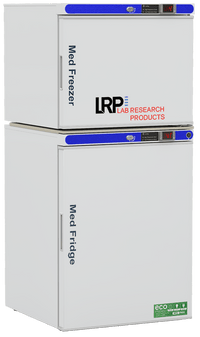

Lab Research Products - PH-LRP-HC-RFC7S - 7 Cu. Ft. Pharmacy Refrigerator & Freezer Solid Door Combination

Features
The Plus Series Pharmacy Dual Temp Combination Refrigerator/Freezers feature separate microprocessor temperature controller allowing for precise temperature control, verification and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings refrigerators only. Critical samples and supplies are security backed with an extensive package of audible and visual alarms.
Please note this unit requires 2 outlets.
Models require 4" of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.
Lab Research Products is Going Green! We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants, R290 or R600a.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details:
- Two exterior swing doors (solid door refrigerator/solid door freezer), right hinged, not reversible
- 3 adjustable shelves refrigerator/2 adjustable shelves freezer, shelves have back rails to prevent product from being pushed against back wall
- Footed bottom shelf refrigerator, and freezer
- Forced draft air circulation, refrigerator
- Vaccine storage power cord warning label
- Keyed door locks
- Magnetic door gasket for positive seal
- Integrated door handles
- Leveling legs
- Stacking kit
- Two probe access ports (3/8"); one, refrigerator/one, freezer
- White powder coated exterior
- HFC-free refrigerant (R600a), foam insulation and packaging
- Pharmacy refrigerator/freezer toolkit and temperature logs
- Two year parts and labor warranty, plus an additional three year compressor parts warranty
Temp Controller:
- Microprocessor temperature controller, refrigerator and freezer
- Digital temperature display, refrigerator and freezer
- Adjustable operating temperature range: Refrigerator: 36°F - 46°F (2°C -8°C); Freezer: 5°F - -13°F (-15°C - -25°C)
- Temperature monitor device (TMD) complies with the current CDC guidelines, with 3 years certification of calibration, "buffered" probe in the product simulated solution, min/max memory. F/C switchable, field installable, and visual & audible temp alarm
- Audible and visual high and low temperature alarms, refrigerator and freezer
- Remote alarm contacts, refrigerator and freezer
- 2 probes; 1 in air and 1 in sample bottle, in both Refrigerator and Freezer
Specifications
Overview
-
Nominal Height:53.1" (134.87 cm)
-
Nominal Width:23.75" (60.33 cm)
-
Nominal Length:24" (60.96 cm)
-
Capacity:7
Specifications-Freezer
-
Cu. Ft.:1.7
-
Defrost:Manual
-
Door:1 Solid
-
Int Door:0
-
Shelves:2 Adj
-
Interior Dim. W:17.75"
-
Interior Dim. D:16"
-
Interior Dim. H:13.75"
-
Refrigerant:R600a
-
H.P.:0.12
-
Amps:1
-
Weight:135 lbs.
Specifications-Refrigerator
-
Cu. Ft.:5.2
-
Defrost:Cycle
-
Door:1 Solid
-
Int Door:0
-
Shelves:3 Adj
-
Interior Dim. W:19.87"
-
Interior Dim. D:16"
-
Interior Dim. H:26.75"
-
Refrigerant:R600a
-
H.P.:0.16
-
Amps:1.3
-
Weight:135 lbs.
Drawings
-
PH-LRP-HC-RFC7S Ext CutsheetVisit Link
-
PH-LRP-HC-RFC7S Int CutsheetVisit Link
Useful Links
-
PH-LRP-HC-RFC7S SpecSheetVisit Link
