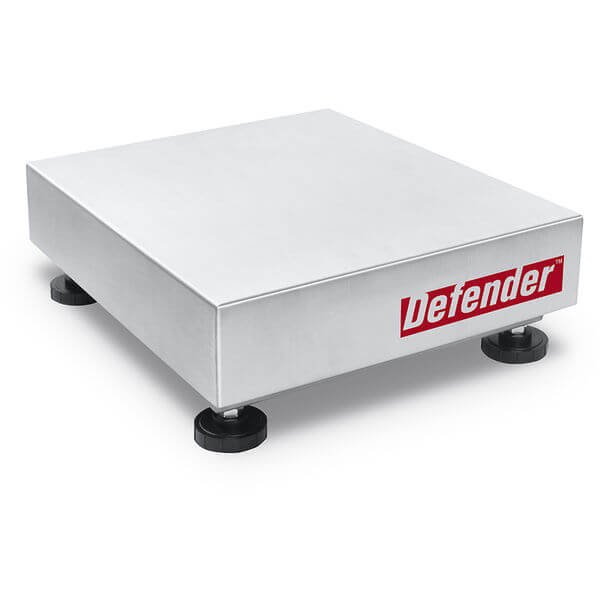

Ohaus - 30683699 - Defender™ 3000 Base i-D75C1R EZ
Features
The Defender 3000 stainless steel bases offer economical yet durable performance for industrial weighing in washdown environments. With NTEP certification, Measurement Canada and OIML approval, these bases can be used for both general applications as well as where legal-for-trade performance is required.
Applications
Weighing, checkweighing, counting, totalization
Construction
304-grade stainless steel platform, stainless steel tubular frame, IP67 stainless steel load cell
Specifications
Overview
-
Nominal Height:4.8" (12.19 cm)
-
Nominal Width:12" (30.48 cm)
-
Nominal Length:14" (35.56 cm)
Technical Data
-
Maximum Capacity:150 lb (75 kg)
-
Readability:0.02 lb (10 g)
-
Readability (Certified):0.05 lb (50 g)
-
Platform Size (LxW):14 in x 12 in (355 mm x 305 mm)
-
Legal for Trade:Not applicable
-
Protection Rating:IP67
-
Platform Construction:Stainless steel
-
Dimensions:14 in x 4.8 in x 12 in (355 mm x 122 mm x 305 mm) (LxHxW)
-
Net Weight:17.2 lb (7.8 kg)
-
Working Environment:14°F - 104°F, 85%RH, non-condensing (-10°C - 40°C, 85%RH, non-condensing)
