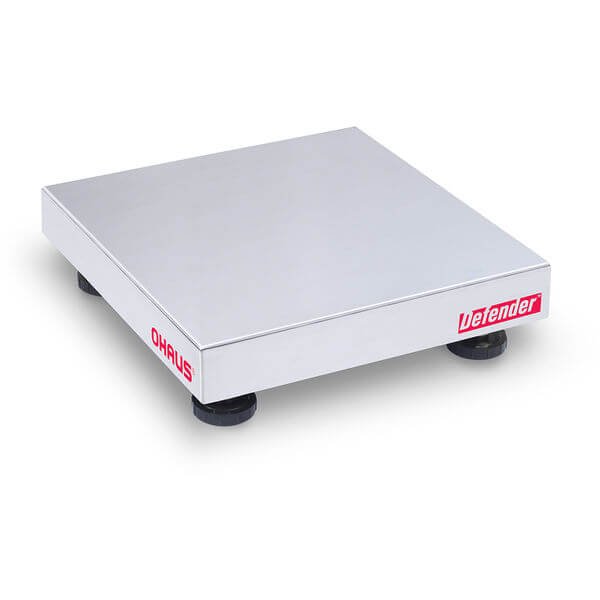

Ohaus - 30419629 - Defender™ 5000 Stainless Steel Base, D5WQS
Features
The OHAUS next generation Defender 5000 W Series base offers durability for the most demanding of industrial applications. The W series features moisture-protected single-point load cells, stainless steel construction, non-slip rubber adjustable feet, removable stainless steel weighing pans and integrated leveling bubbles. Maximum non-approved resolution of 1:15,000d meets the needs of industrial weighing applications that require extreme accuracy.
- Applications: N/A
- Display: N/A
- Operation:N/A
- Communication: N/A
- Construction: 304 grade stainless steel platform, black painted steel tubular frame, IP67 aluminum load cell, level indicator
- Design Features: 150% capacity overload protection
Specifications
Overview
-
Nominal Height:2.9" (7.37 cm)
-
Nominal Width:10" (25.4 cm)
-
Nominal Length:11.1" (28.19 cm)
Technical Data
-
Maximum Capacity:10 lb (5 kg)
-
Readability:0.0005 lb (0.2 g)
-
Platform Size (LxW):10 in x 10 in (254 mm x 254 mm)
-
Legal for Trade:NTEP Certified, Measurement Canada Approved
-
Protection Rating:IP67
-
Net Weight:10 lb (4.5 kg)
-
Platform Construction:Stainless Steel
-
Working Environment:14°F - 104°F, 80%RH, non-condensing (-10°C - 40°C, 80%RH, non-condensing)
