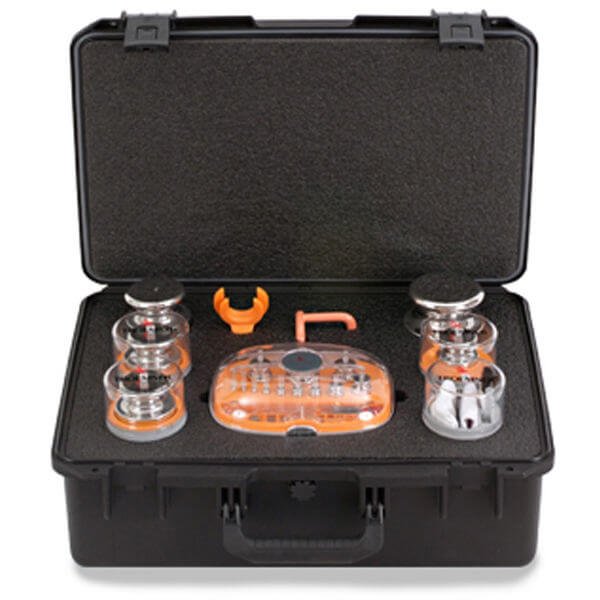

Ohaus - 30390808 - OIML Calibration Weight Set 50kg-1mg CLF2 No Cert TR
Features
OIML Calibration Weight Sets
Applications
Use OIML E1 as a primary reference to calibrate other mass standards and use for traceability between national mass standards and OIML E2 weights and lower. OIML E1 is appropriate for calibrating high-precision balances with a readability as low as 0.1 mg.
Construction
Weights 1 g and above are two-piece. Weights 500 mg and below are one-piece. Weights 50 kg to 1 kg are Troemner Alloy 8 or 316 Stainless Steel. Weights 500 g to 1 g are Troemner Alloy 8. Weights ≤500 mg are 303 Stainless Steel, 304 Stainless Steel or Aluminum.
Design Features
Weights 1g - 50kg have a tapered neck allowing easy handling, polished mirror-like finish allowing scratches or foreign matter to be seen, and bottom of weights are recessed to reduce wear. mg weights are flat with one end turned up for easy handling.
Specifications
Overview
-
Internal Height:19.7" (50.04 cm)
-
Internal Width:24.6" (62.48 cm)
-
Internal Length:11.7" (29.72 cm)
Technical Data
-
Calibration Certificate:No Certificate
-
OIML Class:F2
-
Weight Set Range:50 kg - 1 mg
-
Set Capacity:100 kg
-
Set Total Pieces:32
-
Protective Case:Included
-
Construction:1 g and above are two-piece, 500 mg and below are one-piece
-
Density at 20°C:Below 5 mg are 2.70 g/cm3, 500 mg to 5 mg are 7.95 g/cm3, Above 1 kg are 7.95 g/cm3, 1 kg to 1 g are 8.03 g/cm3
-
Set Contents:(2) 20 kg, 50 kg, (2) 2 g, (2) 200 g, (2) 20 mg, 500 mg, 10 g, (2) 20 g, 100 g, 100 mg, 10 mg, (2) 200 mg, 10 kg, 1 g, 50 g, (2) 2 kg, 5 g, 1 kg, 5 mg, 500 g, (2) 2 mg, 50 mg, 1 mg, 5 kg
-
Weight Material:Weights above 1kg are 316 Stainless Steel, Weights 1kg through 1g are Troemner Alloy 8, weights 5 mg through 500 mg are 316 Stainless Steel, weights below 5 mg are 3003-H14 Aluminum, 500 mg to 5 mg are 316 Stainless Steel, Below 5 mg are Aluminum, 1 kg to 1 g are Troemner Alloy 8, Above 1 kg are 316 Stainless Steel
-
Wgt Origin (USA):USA
