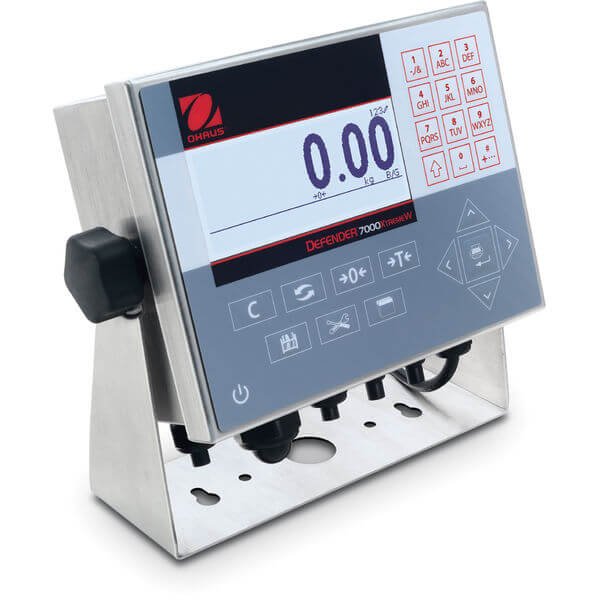

Ohaus - 30126959 - Indicator, T72XW AM
Features
The OHAUS T72XW indicator provides the flexibility, performance and operation necessary for specific applications with connectivity and data output capabilities - including vehicle weighing, over/under checkweighing, animal weighing and counting. The 7000 series indicator has multiple functions, intuitive software, multiple connectivity options, and the durability to stand up to the wear-and-tear in industrial settings.
Applications
Weighing, Parts Counting, Checkweighing, Animal/Dynamic Weighing, Vehicle Weighing.
Display
Transflective graphic LCD with white backlight, 240 x 96 pixels.
Operation
AC power (included).
Communication
Easy access communication port including RS232 (included), USB, Ethernet and second RS232 or RS485 (accessories sold separately). GLP/GMP data output with real-time clock.
Construction
IP66/NEMA 4X stainless steel housing and mounting bracket.
Design Features
Checkweighing lights with selectable operation and audible signal settings, sealed front panel, 5 operating languages (English, Spanish, French, German and Italian), selectable environmental and auto-print settings, stability and overload/underload indicators.
Specifications
Overview
-
Nominal Height:9.1" (23.11 cm)
-
Nominal Width:11.1" (28.19 cm)
-
Nominal Length:3.4" (8.64 cm)
Technical Data
-
Resolution:50,000
-
Resolution (Certified):10,000
-
Outputs:2 In/4 Out digital I/O
-
Protection Rating:IP66
-
Communication:2nd RS232 (Available as an Accessory), Ethernet (Available as an Accessory), RS232 (Included), USB (Available as an Accessory)
-
Display:graphic LCD
-
Legal for Trade:NTEP Certified, EC Type Approved, Measurement Canada Approved
-
Net Weight:6.6 lb (3 kg)
-
Power:AC Power (Included)
-
Protection Rating:IP66
-
Tare Range:To capacity by subtraction
-
Units of Measurement:Metric Tons, Kilogram, Gram, Pound, Ounce
-
Working Environment:14°F - 104°F, 85%RH, non-condensing (-10°C - 40°C, 85%RH, non-condensing)
Useful Links
-
Data Sheet T72XWVisit Link
