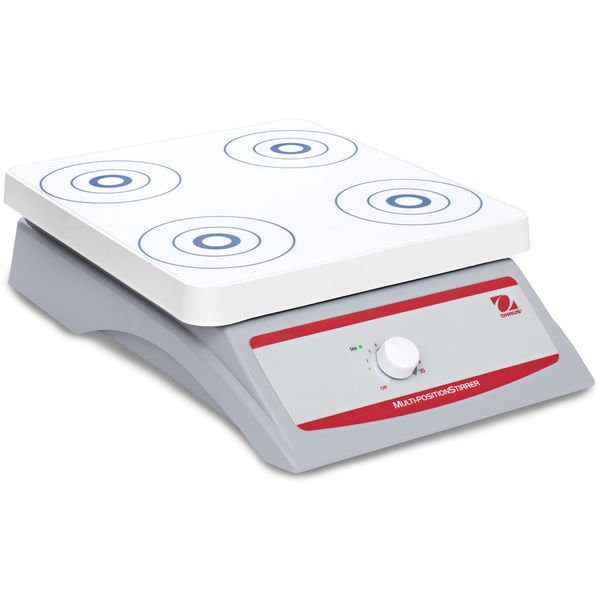

Ohaus - 30573789 - Multi-Position Stirrer STMP4AL US

Ohaus - 30573789 - Multi-Position Stirrer STMP4AL US

Ohaus - 30573789 - Multi-Position Stirrer STMP4AL US

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Synchronized and Uniform Mixing.

Features

Powerful Magnetic Stirrers available in either four or nine position capacities provide precise speed control that deliver repeatable performance. Offered in both digital and non-digital models.


Applications


Dissolution Studies, Titrations, Media/Reagent Preparations, Synchronized Stirring of multiple samples.


Display


Independent LED displays for speed and time (on digital models), Knob with 1-10 dial markings (on non-digital models).


Construction


Cast aluminum housing, glass filled nylon top plate. Includes stir bars to accommodate each stirring position.


Design Features


Speed ramping feature slowly increases motor speed for enhanced coupling & improved stirring. Microprocessor-controlled for precise speed regulation. Timer counts up or when programmed to a set time will turn off stirring & sound alarm when timer reaches zero.

Specifications

Overview

  • Nominal Height:
    4" (10.16 cm)
  • Nominal Width:
    11" (27.94 cm)
  • Nominal Length:
    17" (43.18 cm)

Technical Data

  • Timer:
    1 second - 160 hours
  • Control:
    Analog
  • Power Consumption:
    75 W
  • Net Weight:
    14 lb (6.3 kg)
  • Plate Construction:
    Glass Filled Nylon
  • Plate Size:
    12.5 in x 11 in (318 mm x 279 mm)
  • Safety Certification:
    UL, cUL
  • Working Environment:
    41°F - 104°F, 80% RH, Non-condensing (5°C - 40°C, 80% RH, Non-condensing)
  • Speed Range:
    60 rpm to 1400 rpm
  • Capacity:
    4 x 1L
  • Power:
    120V, 1.3A, 50/60Hz
