Panthera C2 is a new world-class level cased in a revolutionary technical future-orientated solution, now accessible for life sciences.

Product Range

SKU Name
1100403300201 Motic Instruments - 1100403300201 - Panthera Cloud
1100104601161 Motic Instruments - 1100104601161 - Panthera C2 Trinocular 50/50 Upright Microscopes, Simple Phase Package
1100104601171 Motic Instruments - 1100104601171 - Panthera C2 Trinocular 50/50 Upright Microscopes, Phase Package

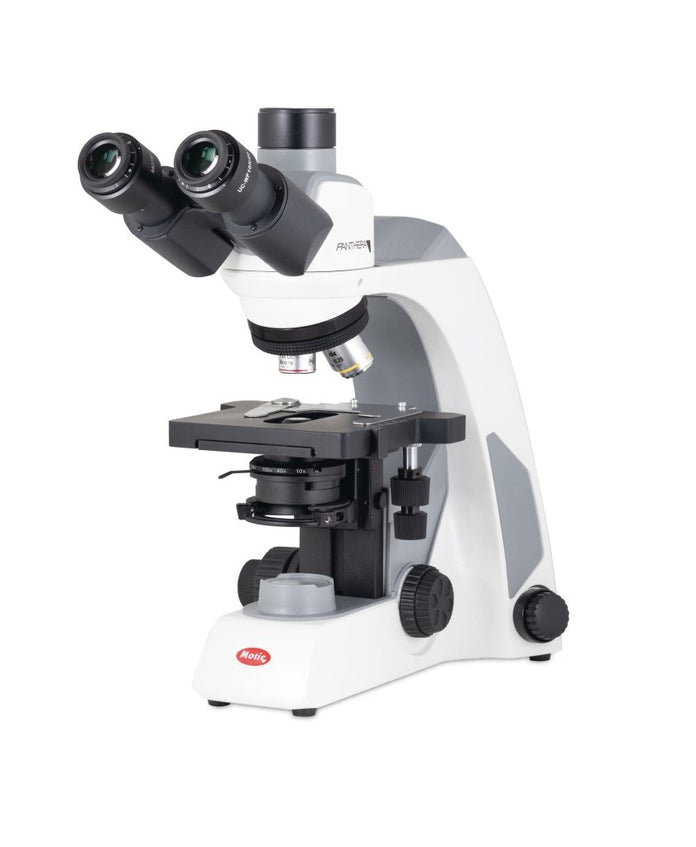

1100104601126 Motic Instruments - 1100104601126 - Panthera E2 Trinocular 50/50 Upright Microscopes

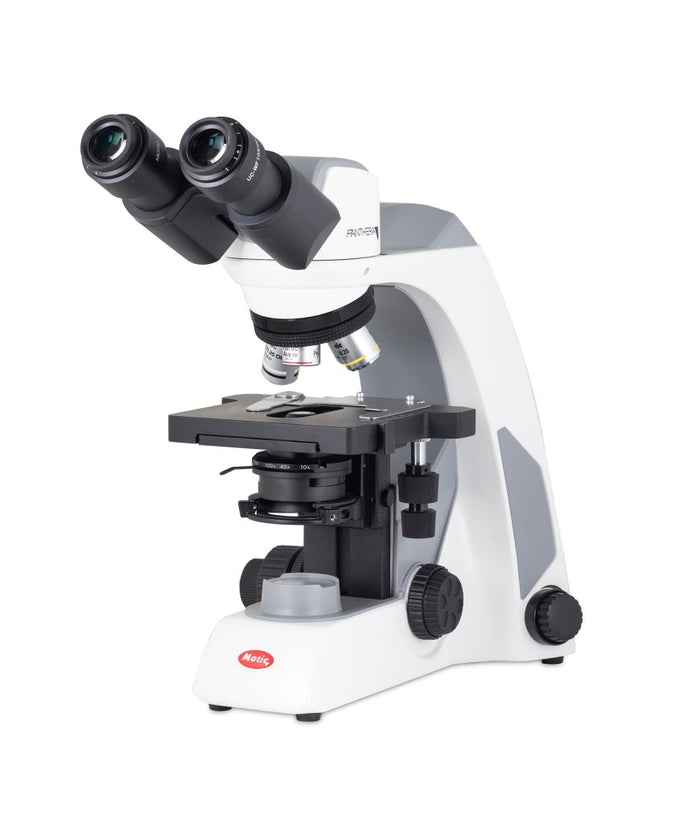

1100104601116 Motic Instruments - 1100104601116 - Panthera E2 Binocular Upright Microscopes

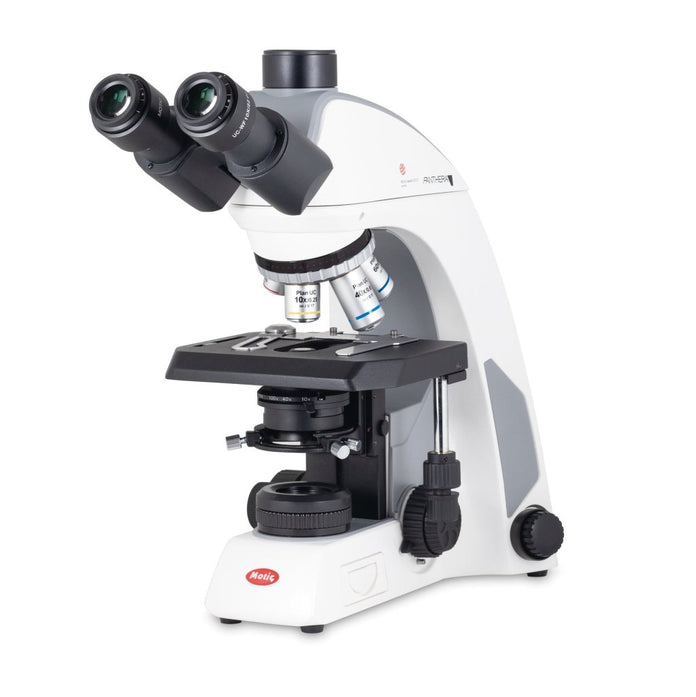

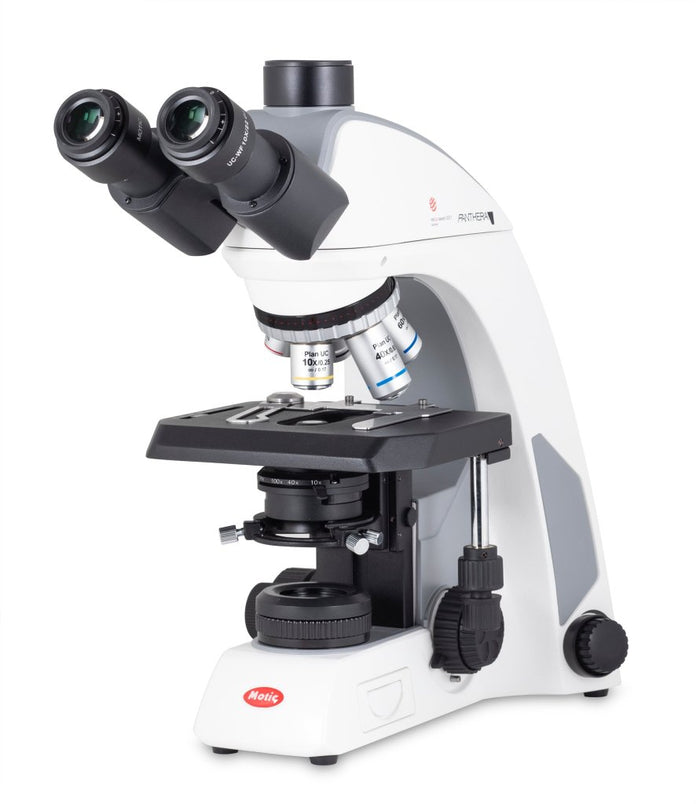

1100104601147 Motic Instruments - 1100104601147 - Panthera C2 Trinocular Upright Microscopes

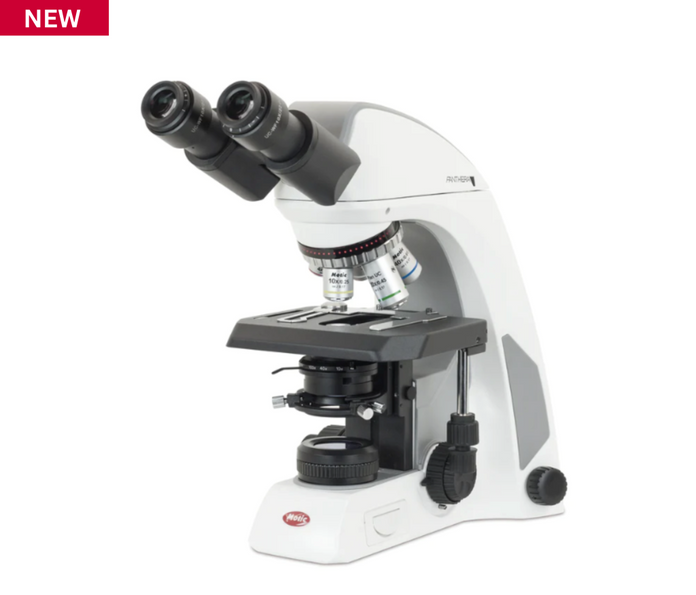

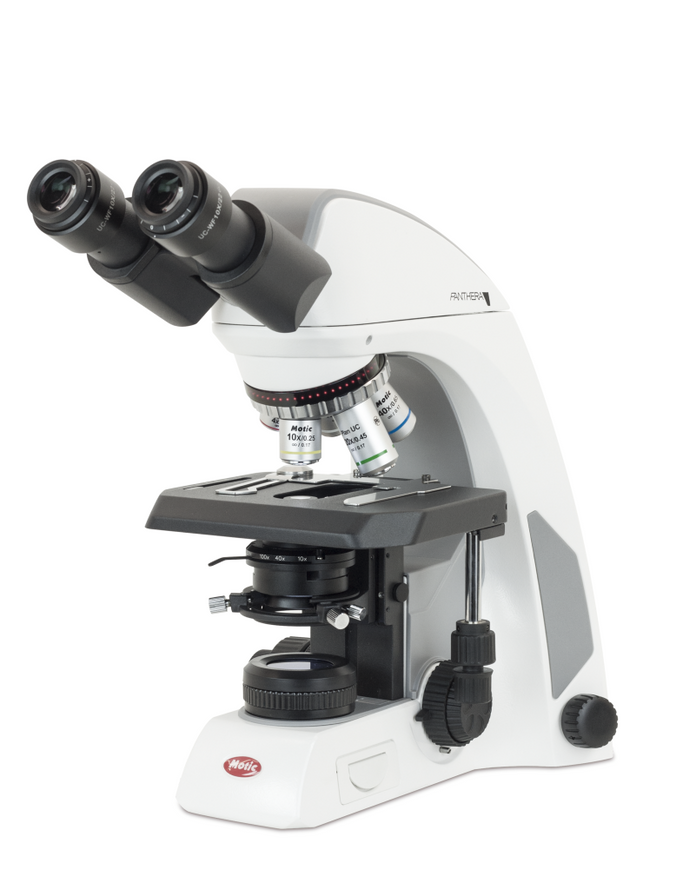

1100104601136 Motic Instruments - 1100104601136 - Panthera C2 Binocular Upright Microscopes

Features

The Panthera Generation 2 has been redesigned with better optics and a better lighting system. The components chosen for the Panthera microscopes have been analyzed down to the last detail to find the perfect design in terms of practicality and aesthetics. The new Panthera E2 has been designed to meet the educational needs of university labs and classrooms, and the new Panthera C2 is the perfect choice for usage in clinical and laboratory settings. With the new generation, there is a solution for everyone.

Specifications

Overview

  • Nominal Width:
    8.3" (21.08 cm)
  • Nominal Length:
    11.1" (28.19 cm)

Technical Data

  • Optical System:
    Colour Corrected Infinity Optical System (CCIS)
  • Inclination:
    25° inclined, 360° rotating (storage saving), 360° swivelling
  • Interpupillary Distance:
    48-75 mm
  • Diopter Adjustment:
    On both eyepieces, ±5 diopter
  • Eyepieces:
    Widefield UC-WF10X/22mm with diopter adjustment
  • Nosepiece:
    Reversed quadruple
  • Objective Classification:
    CCIS UC Plan Achromatic (Pb free)
  • Objective Mounting Thread:
    W 4/5" x 1/36" (RMS standard)
  • Stand Type:
    Upright
  • Stage Size:
    140 x 135 mm
  • Travel Range X&Y:
    75 x 40 mm
  • Diaphragm:
    Iris diaphragm
  • Focus Mechanism:
    Coaxial coarse and fine focusing system with tension adjustment
  • Fine Focus Precision:
    2 μm
  • Focusing Stroke:
    25 mm
  • Upper Limit Stop:
    Upper limit stop preset but adjustable
  • Filter Holder:
    On top of the illuminator
  • Transmitted Illumination:
    Fixed Koehler LED 1W with intensity control
  • llumination Features:
    Nosepiece LED light intensity indicator
  • Transformer:
    Internal
  • Power Supply:
    110-240V (CE), USB 2.0 for battery pack
  • Other Features:
    USB 2.0 for external camera power
