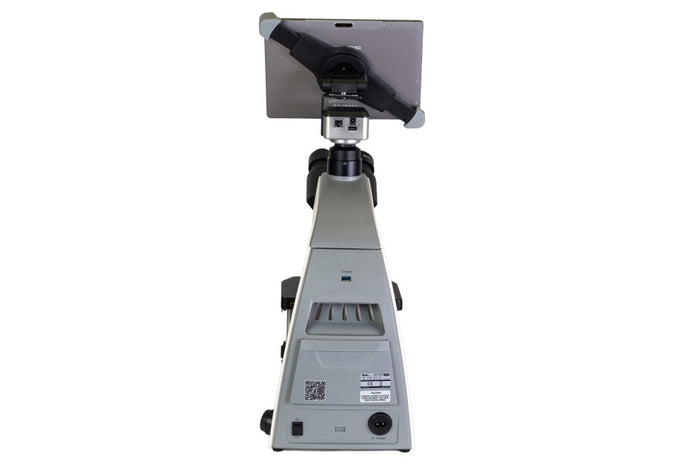

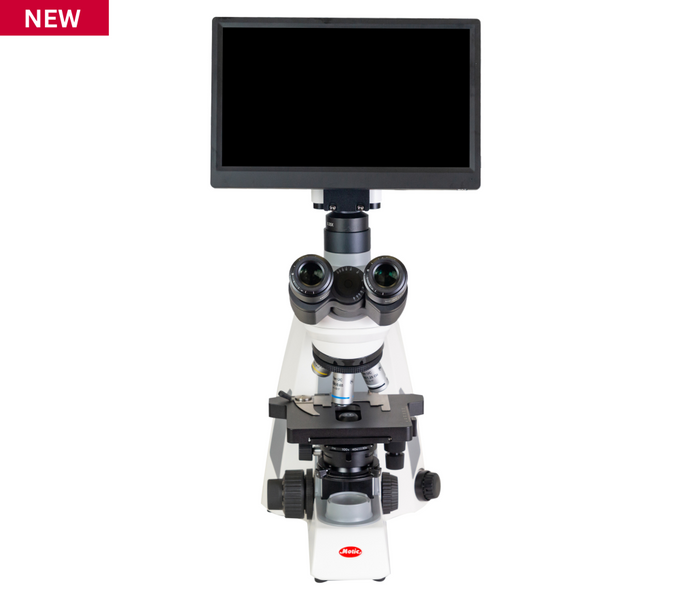

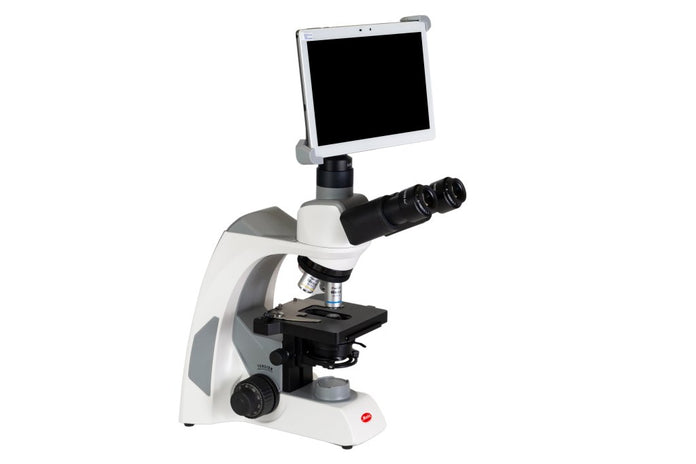

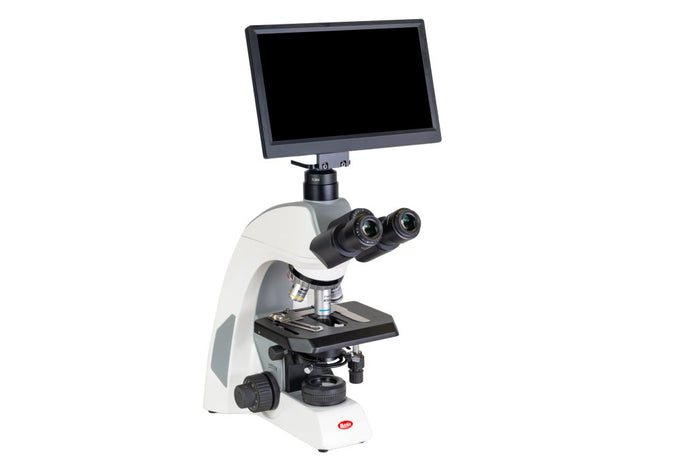

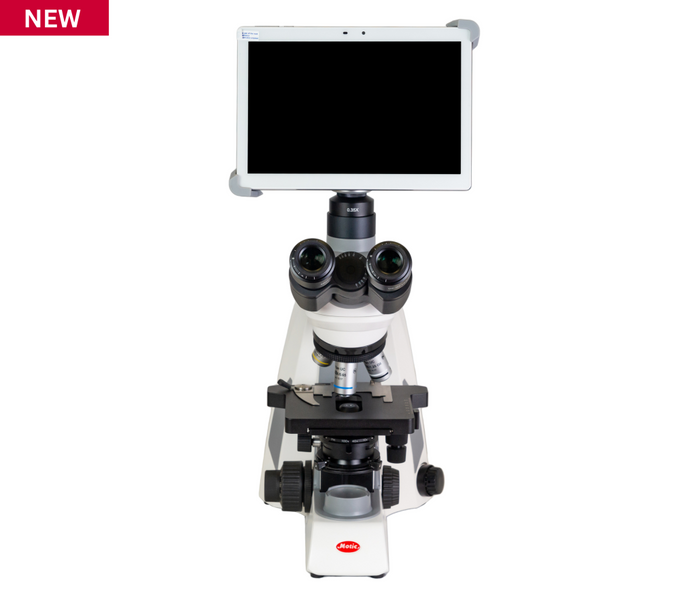

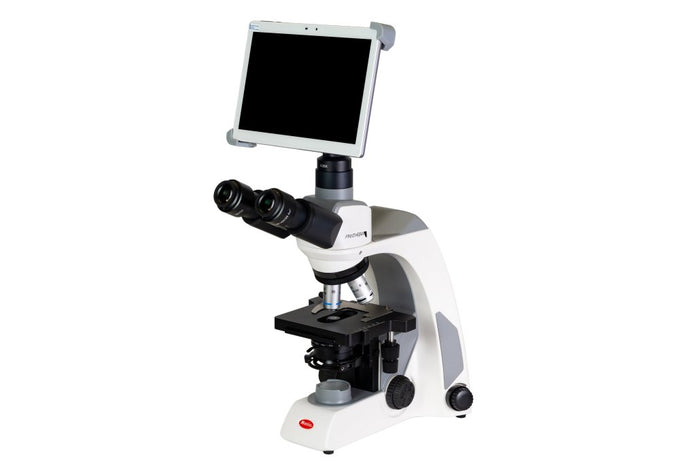

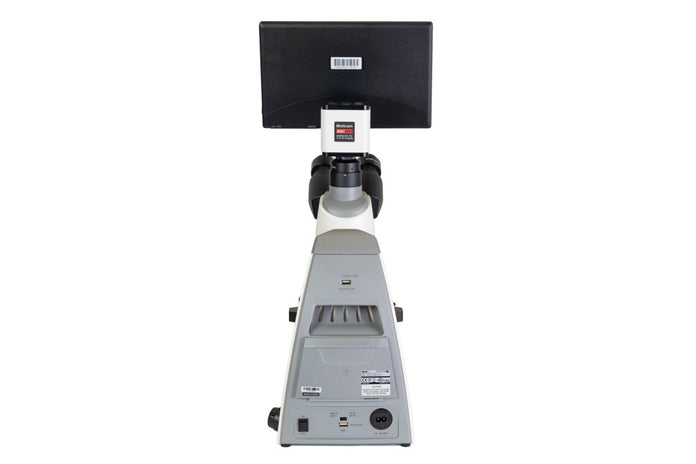

Motic Instruments - Panthera Packages & Bundles - Panthera Trinocular Upright Microscopes and Digital Camera Bundles
Product Range
| SKU | Name |
|---|---|

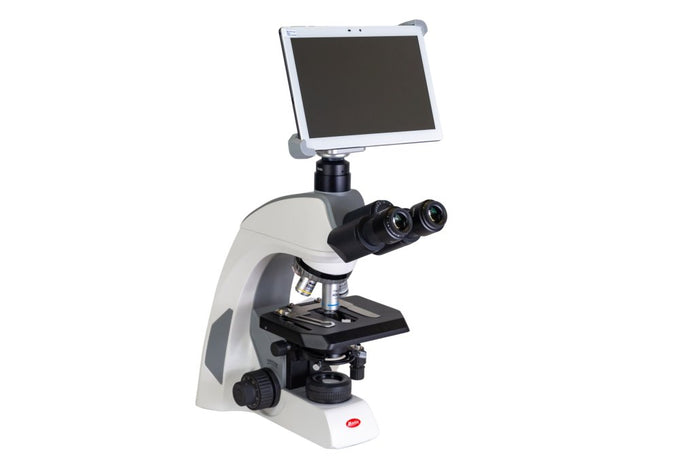

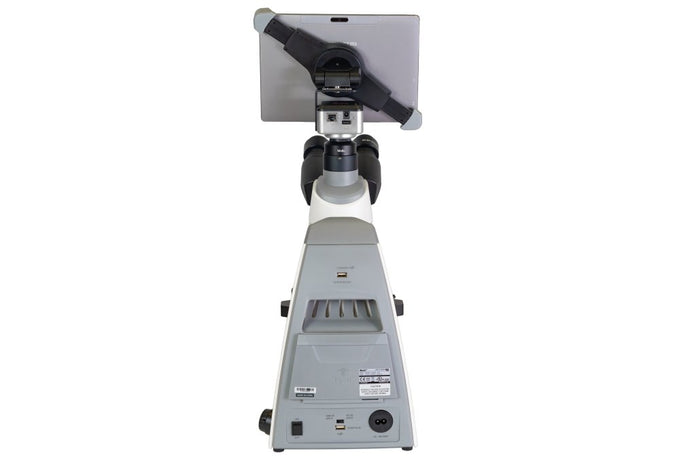

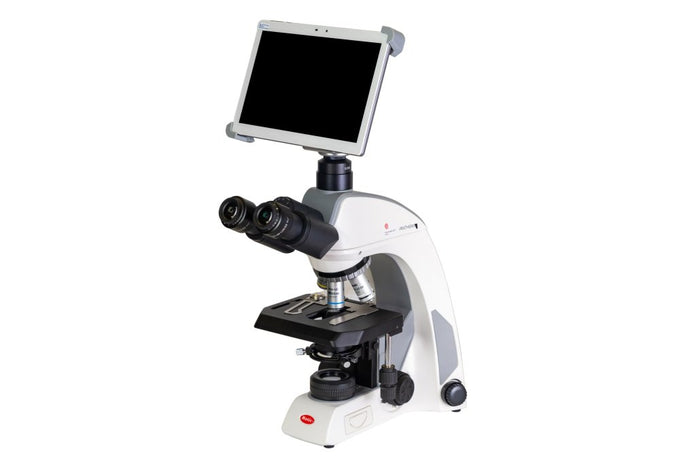

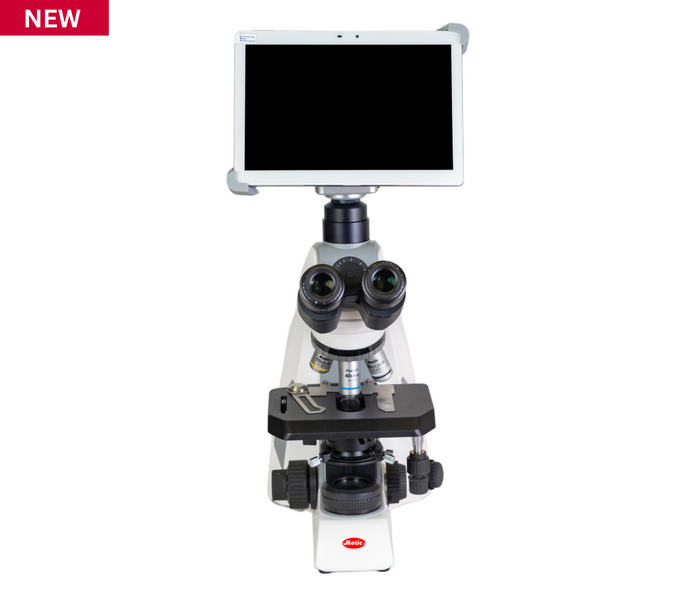

| 1100403300212 | Motic Instruments - 1100403300212 - Panthera E2 Trinocular Upright Microscopes and BTI10 Digital Camera Bundles |
| 1100403300222 | Motic Instruments - 1100403300222 - Panthera C2 Trinocular Upright Microscopes and BTI10 Digital Camera Bundles |
| 1100403300213 | Motic Instruments - 1100403300213 - Panthera E2 Trinocular Upright Microscopes and BMH4000X Digital Camera Bundles |
| 1100403300223 | Motic Instruments - 1100403300223 - Panthera C2 Trinocular Upright Microscopes and BMH4000X Digital Camera Bundles |
Features
This digital camera bundle comes with:

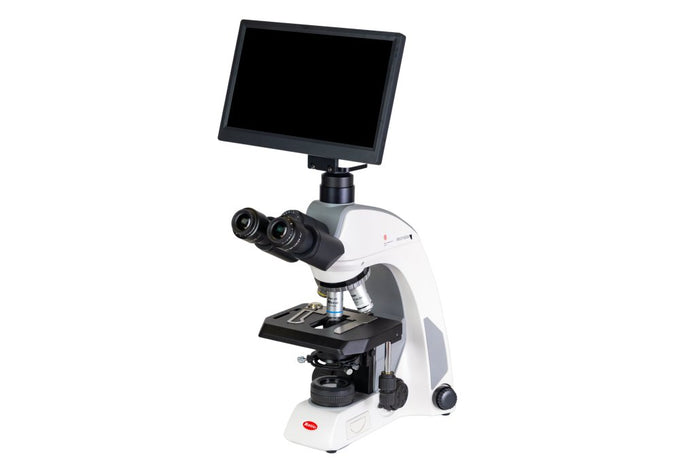

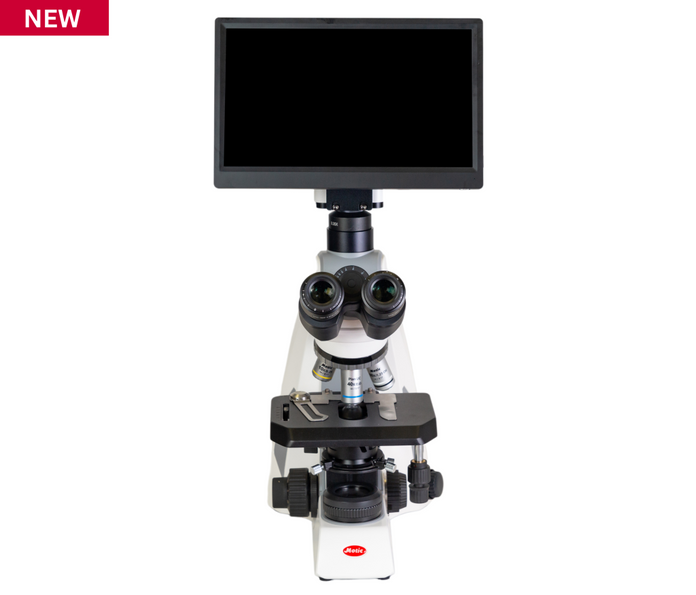

- Panthera C2 Trinocular

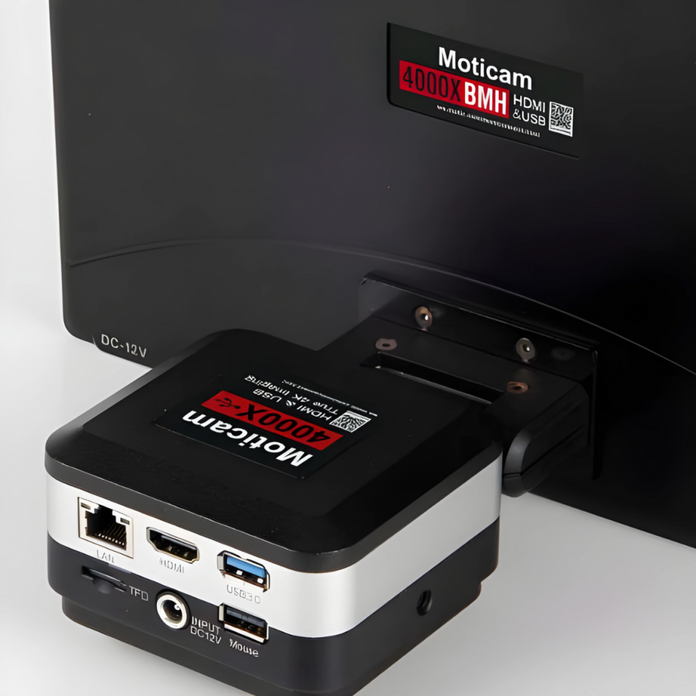

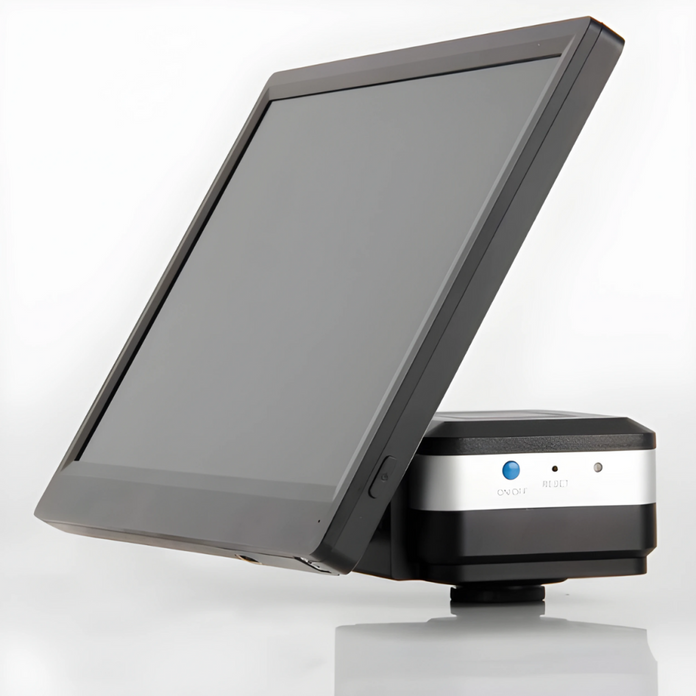

- Moticam BMH4000X
- Compatible C-mount adapter
If it is about stained sections with cover glass protection, about native smears, fine needle biopsies, blood smears which wanted to be treated with or without cover glass: Panthera C2 with its selection of specified optics is your solution. The new Ultra Contrast (UC) objectives with additional glass elements to reach a 22mm Field of View, working perfectly together with neutral eyepieces (thanks to CCIS© a fully corrected intermediate image for digital access is granted) guarantee best performance in terms of color fidelity and contrast. Microscope hardware, illumination, handling: Simply convincing.
Specifications
Overview
-
Nominal Width:8.3" (21.08 cm)
-
Nominal Length:11.1" (28.19 cm)
Panthera Technical Data
-
Optical System:Color Corrected Infinity Optical System (CCIS)
-
Observation Tube:Trinocular head, Siedentopf type, 360° swiveling
-
Inclination:25° inclined, 360° swiveling
-
Trinocular Light Split:Fixed 50/50
-
Interpupillary Distance:48-75 mm
-
Diopter Adjustment:On both eyepieces, ±5 diopter
-
Eyepieces:Widefield UC-WF10X/20mm with diopter adjustment
-
Nosepiece:Reversed quintuple, coded
-
Objective Classification:CCIS UC Plan Achromatic (Pb free)
-
Objective Mounting Thread:W 4/5" x 1/36" (RMS standard)
-
Stand Type:Upright
-
Diaphragm:Iris diaphragm
-
Focus Mechanism:Coaxial coarse and fine focusing system with tension adjustment
-
Fine Focus Precision:2 µm
-
Focusing Stroke:25 mm
-
Upper Limit Stop:Upper limit stop preset but adjustable
-
Transformer:Internal
-
Other Features:USB 2.0 for external camera power
