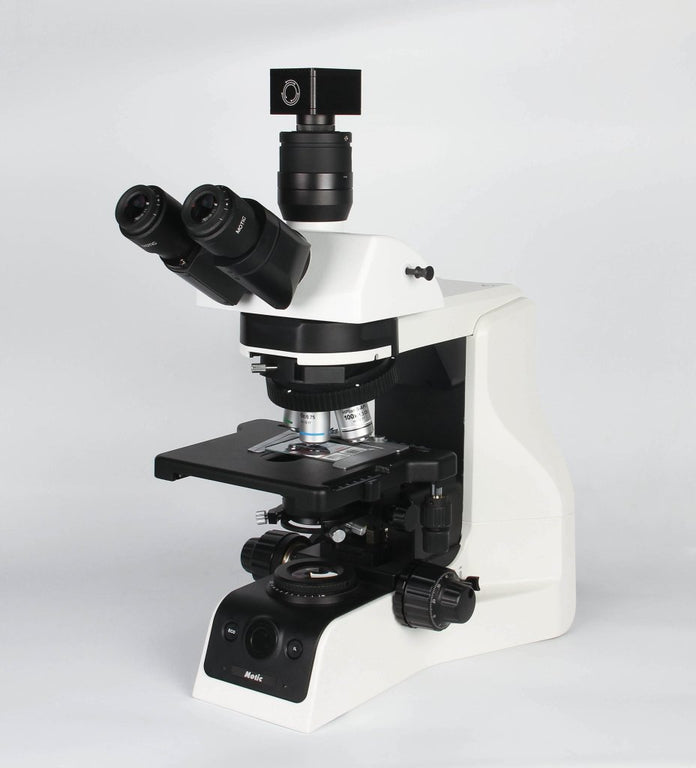

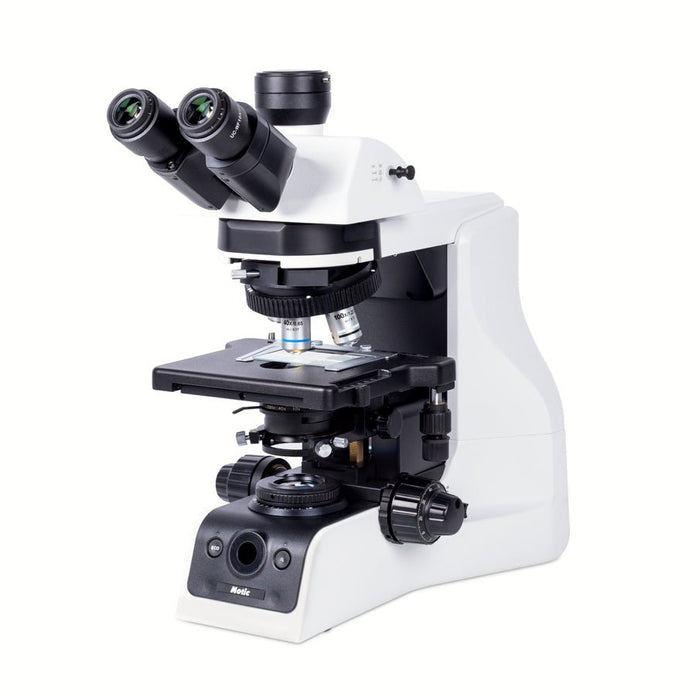

Motic Instruments - PA53 BIO - Upright Biomedical Microscopes

Motic Instruments - PA53 BIO - Upright Biomedical Microscopes
Motic Instruments - PA53 BIO - Upright Biomedical Microscopes
Motic Instruments - PA53 BIO - Upright Biomedical Microscopes
Motic Instruments - PA53 BIO - Upright Biomedical Microscopes
Motic Instruments - PA53 BIO - Upright Biomedical Microscopes
Motic Instruments - PA53 BIO - Upright Biomedical Microscopes

Motic Instruments - PA53 BIO - Upright Biomedical Microscopes

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
The PA53 BIOMED Compound laboratory microscope series is designed with the user in mind.

Product Range

SKU Name
1100104601151 Motic Instruments - 1100104601151 - PA53 FS6 EDF Upright Biomedical Microscopes with LUMOS FL LED
1100104600941 Motic Instruments - 1100104600941 - PA53 BIO Upright Biomedical Microscopes, Basic Configuration
1100104600945 Motic Instruments - 1100104600945 - PA53 BIO Upright Biomedical Microscopes, High-End Configuration

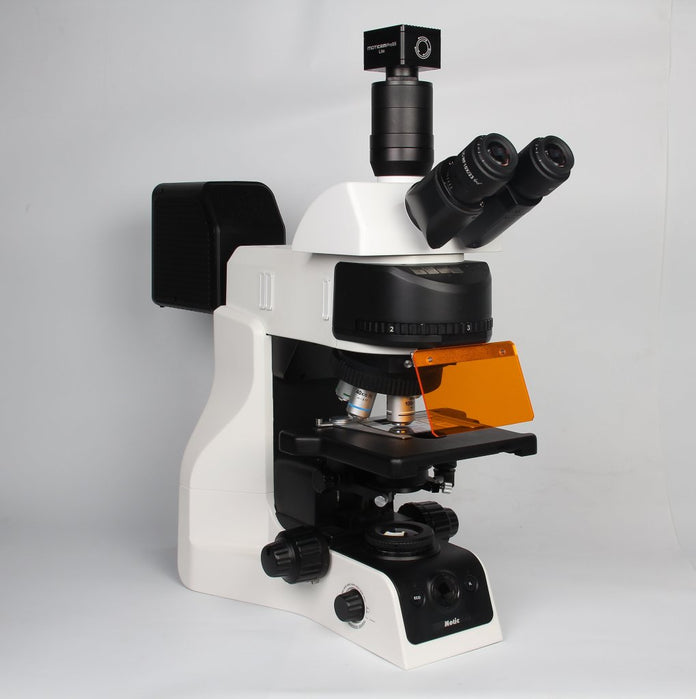

1100104600931 Motic Instruments - 1100104600931 - PA53 FS6 Upright Biomedical Microscopes with LUMOS FL LED
1100104601201 Motic Instruments - 1100104601201 - PA53 Upright Biomedical Microscopes, Bio Scan
1100104601191 Motic Instruments - 1100104601191 - PA53 FS6 Upright Biomedical Microscopes, Scan

Features

The new PA53 BIO upright laboratory microscopes are designed with the experienced expert in mind. In keeping with Motic’s mission of providing State-Of-The-Art technologies at affordable prices, we are proud to present multiple sophisticated solutions for the research work in hospitals and all life science laboratories. Our PA53 BIO and PA53 BIO FS6 models carry superb optics, ergonomic design and intuitive, automated controls for an efficient workflow, the whole at an unrivalled price/performance ratio. The modularity of the PA53 BIO series allows to create tailor-made solutions for your individual needs. Whether it is about color fidelity and extended visual field for pathology, examination of crystals in urine sediments with Phase Contrast and Polarization in urology or advanced FISH/HER2 analysis of chromosomes with Fluorescence: The PA53 BIO series covers all of your demands.

Specifications

Overview

Technical Data

  • Optical System:
    Colour Corrected Infinity Optical System (CCIS®)
  • Observation Tube:
    Trinocular head, Siedentopf type
  • Inclination:
    30° inclined
  • Interpupillary Distance:
    50-75 mm
  • Diopter Adjustment:
    On both eyepieces, ±4 diopter

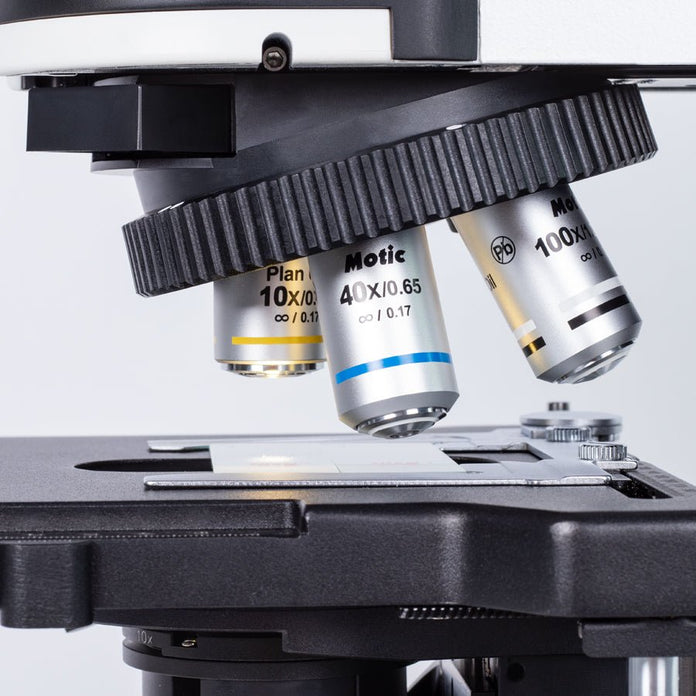

  • Nosepiece:
    Reversed quintuple, coded
  • Objective Mounting Thread:
    W 4/5" x 1/36" (RMS standard)
  • Stand Type:
    Upright
  • Travel Range X&Y:
    80 x 55 mm
  • Diaphragm:
    Iris diaphragm
  • Focus Mechanism:
    Coaxial coarse and fine focusing system with tension adjustment
  • Fine Focus Precision:
    1 µm
  • Upper Limit Stop:
    Upper limit stop preset but adjustable
  • Filter:
    ND6, ND25, LBD
  • Filter Holder:
    Integrated filters
  • Transmitted Illumination:
    Kohler quartz halogen 12V/100W with intensity control
  • Transformer:
    Internal
  • Power Supply:
    110–240V (CE)
  • Accessories Included:
    Dust cover, power cord, Allen key, immersion oil (5 ml)
