Motic Instruments - BA310MET - Upright Industrial Microscopes
Product Range
| SKU | Name |
|---|---|

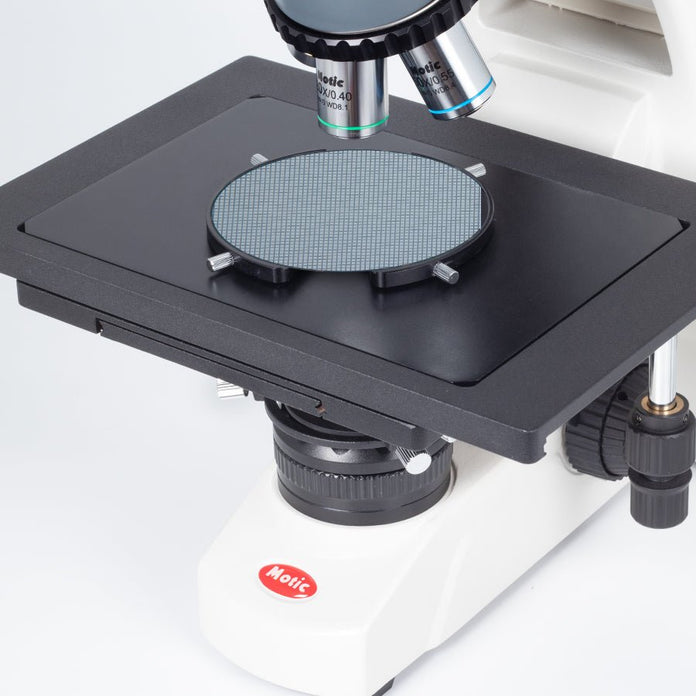

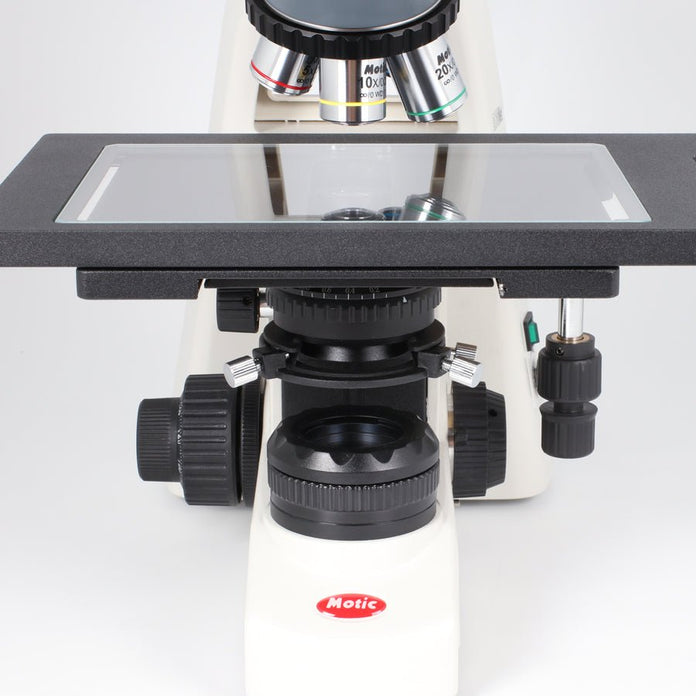

| 1100100402524 | Motic Instruments - 1100100402524 - BA310Met-T Trinocular Upright Industrial Microscopes (Stroke 6"x 4" Stage) |
| 1100100402534 | Motic Instruments - 1100100402534 - BA310Met-T Trinocular Upright Industrial Microscopes (Stroke 6"x 4" Stage) (Erect Image) |

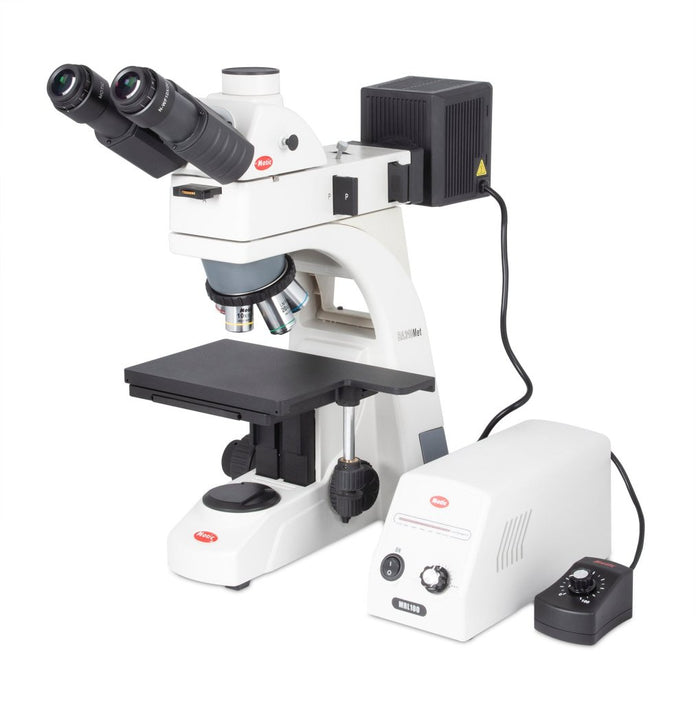

| 1100100402045 | Motic Instruments - 1100100402045 - BA310Met Trinocular Upright Industrial Microscopes |
| 1100100402544 | Motic Instruments - 1100100402544 - BA310Met-T Trinocular Upright Industrial Microscopes (Stroke 3"x 2" Stage) (Erect Image) |

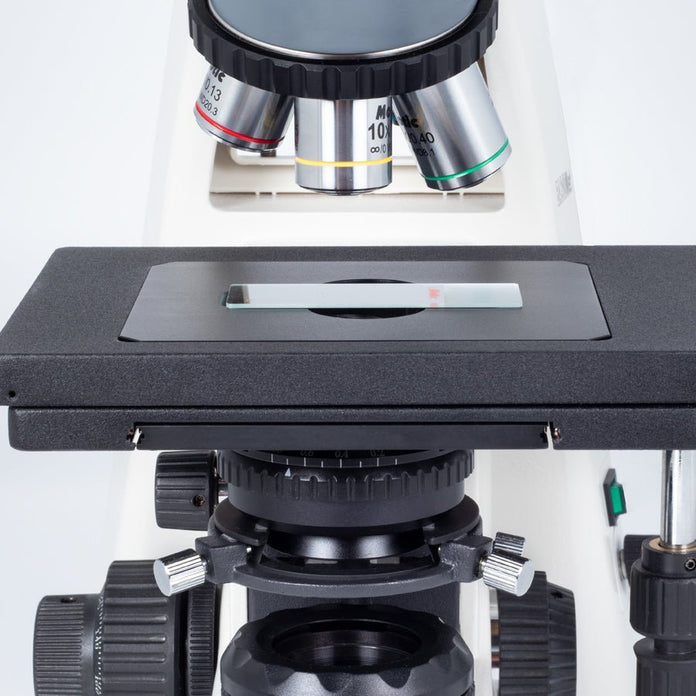

| 1100100402601 | Motic Instruments - 1100100402601 - BA310Met-T Trinocular Upright Industrial Microscopes (Stroke 3"x 2" Stage) |
| 1100100402494 | Motic Instruments - 1100100402494 - BA310Met Trinocular Upright Industrial Microscopes (Erect Image) |

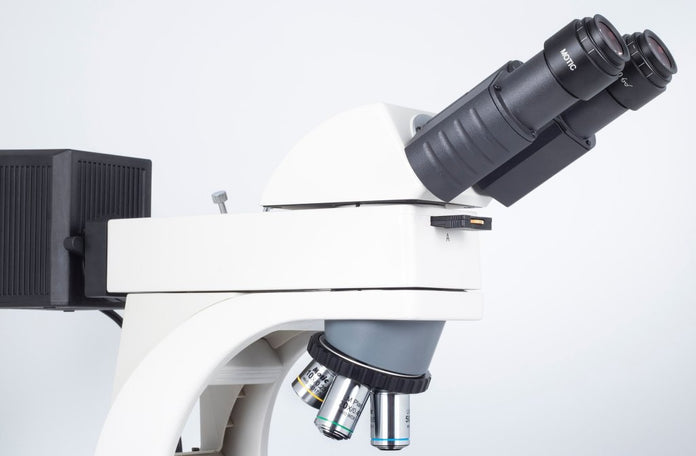

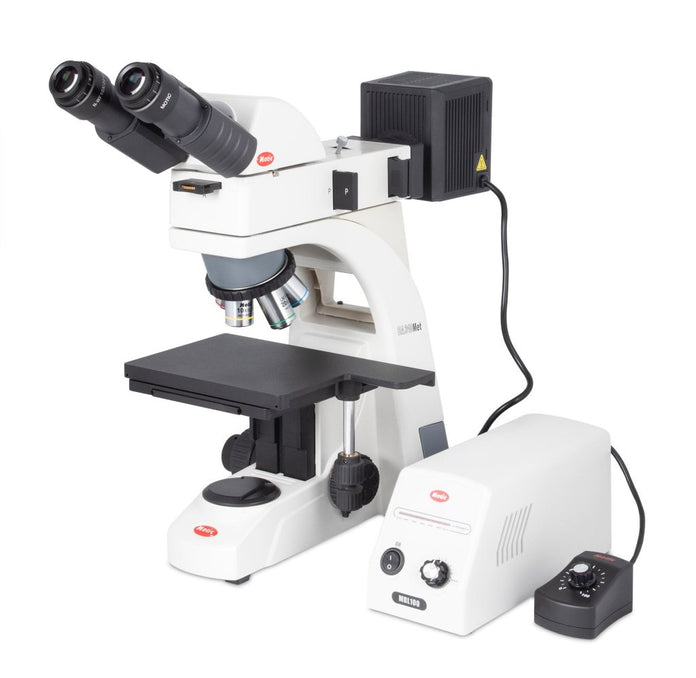

| 1100100402144 | Motic Instruments - 1100100402144 - BA310Met Binocular Upright Industrial Microscopes |
| 1100100403604 | Motic Instruments - 1100100403604 - BA310Met-H Trinocular Upright Industrial Microscopes (Erect Image) |
| 1100100403591 | Motic Instruments - 1100100403591 - BA310Met-H Trinocular Upright Industrial Microscopes |
Features
BA310MET Series - Advanced Microscopes for Material Sciences.
Great flexibility for all sample sizes

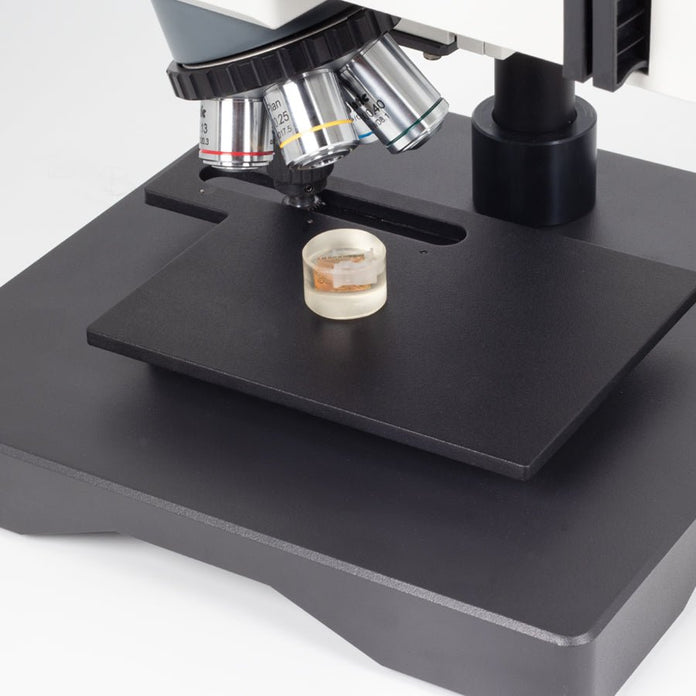

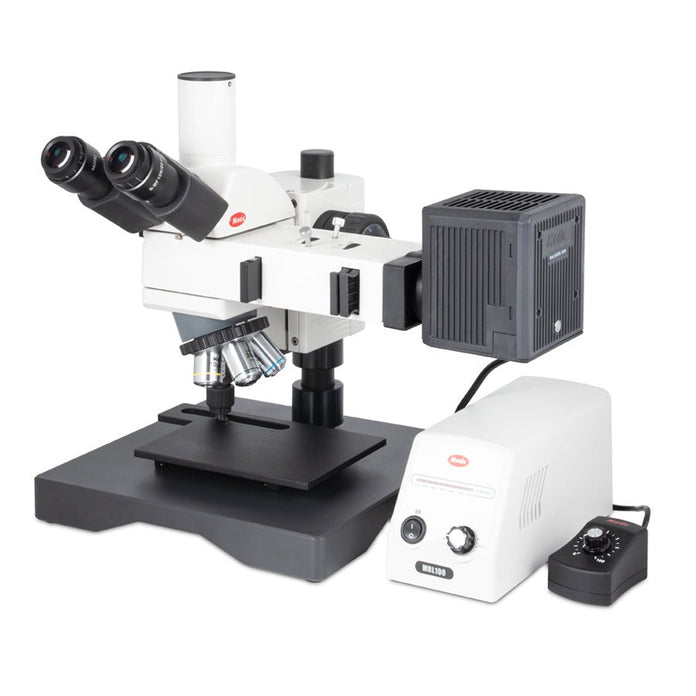

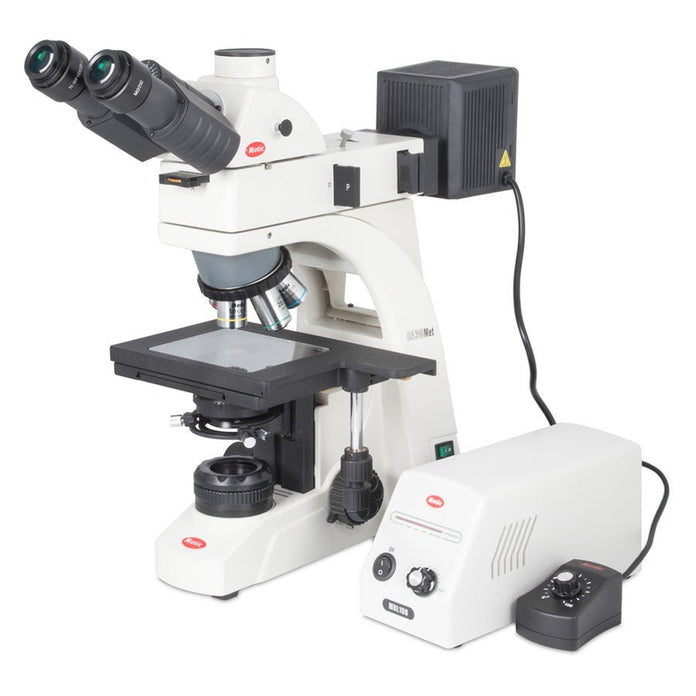

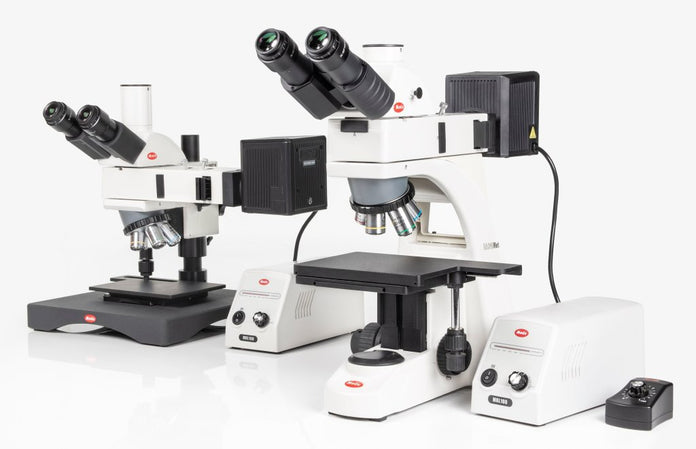

BA310MET and BA310MET-T are based on a regular upright microscope with fixed nosepiece and movable stage, while in BA310MET-H the Epi-Illumination including optics is combined with a focusing block mounted on a vertical pole. Thus an extended focusing range for the examination of bulky samples is achieved.

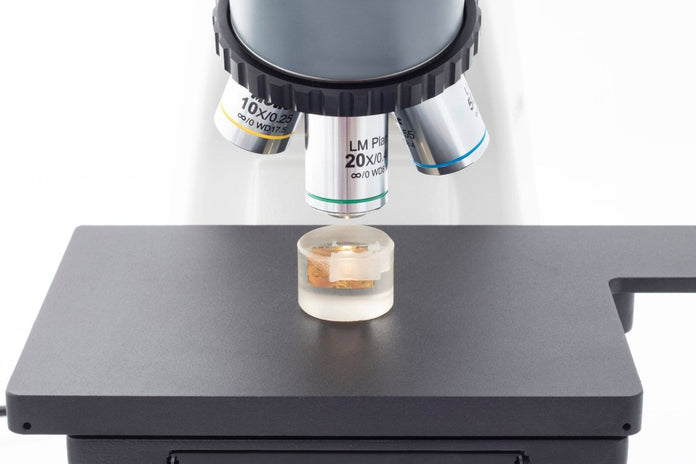

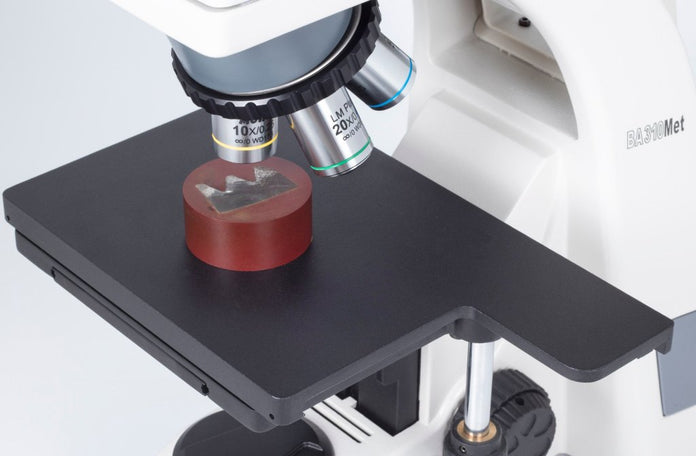

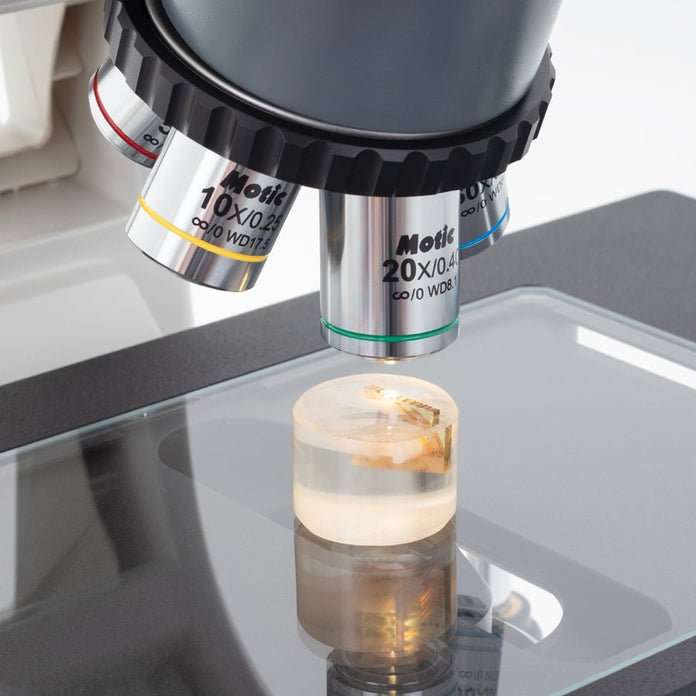

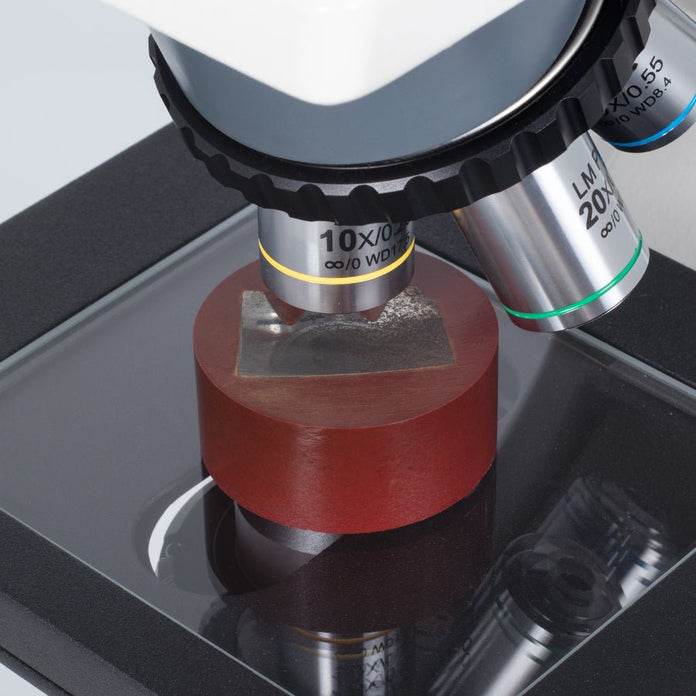

New LM Plan Achromats for incident light
A new generation of LM Plan-Achromatic objectives dedicated to non-covered specimen. Made of high quality glass, these LWD objectives follow the successful Motic CCIS® optical concept and ensure improved contrast and image quality by multi-layer coating.
Flexibility for compound materials

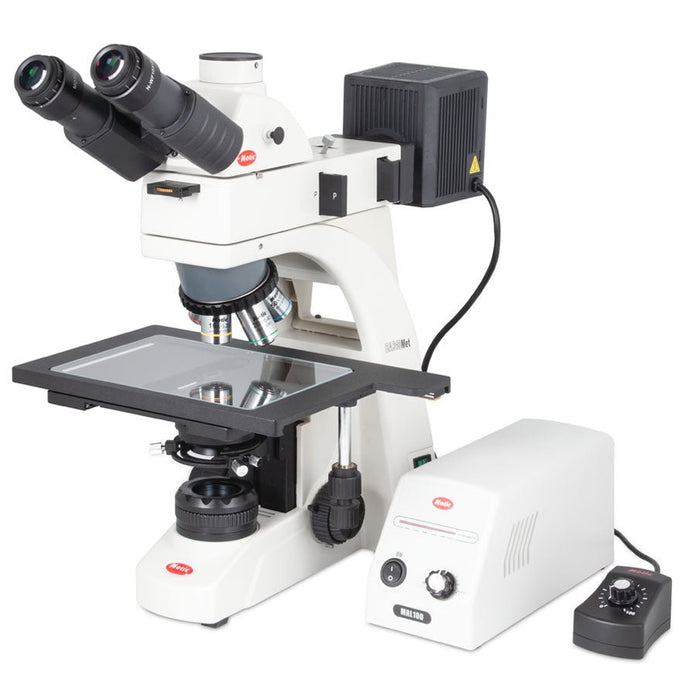

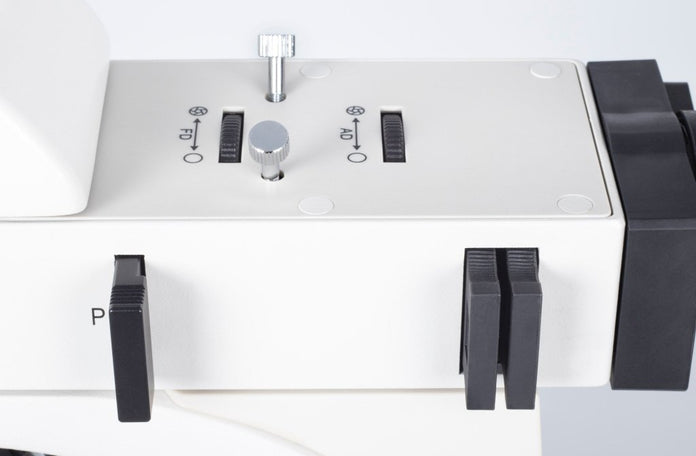

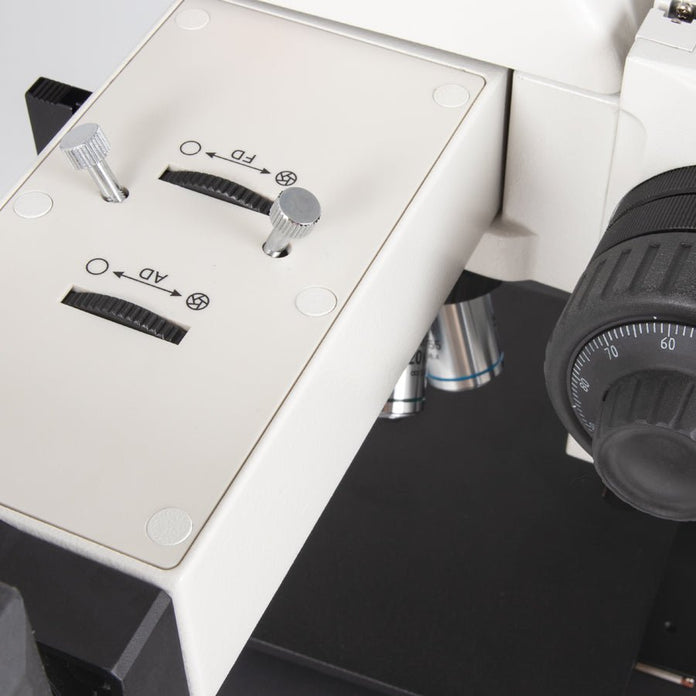

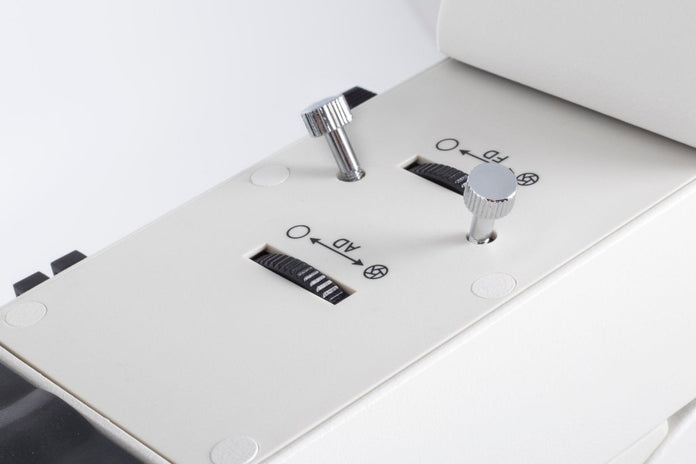

The Epi-Illuminator of the BA310MET models is based on a 50W Halogen light source with external power supply. With an adjustable field and aperture diaphragm, homogenous illumination and improved contrast are guaranteed. The simple polarization set enables a useful ""POL contrast"" and helps to minimize reflections especially in low power objectives.
Specifications
Overview
Technical Data
-
Optical System:Colour Corrected Infinity Optical System (CCIS)
-

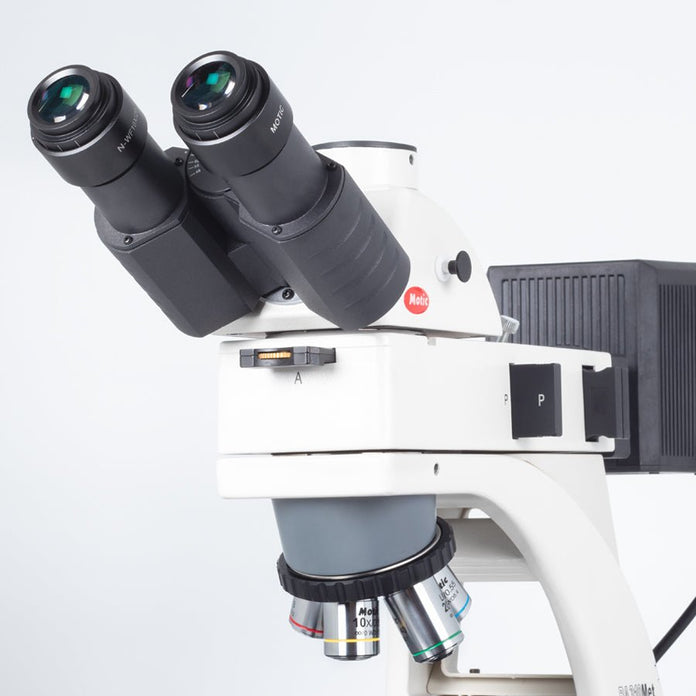

Inclination:30° inclined
-
Diopter Adjustment:On both eyepieces, ±5 diopter
-

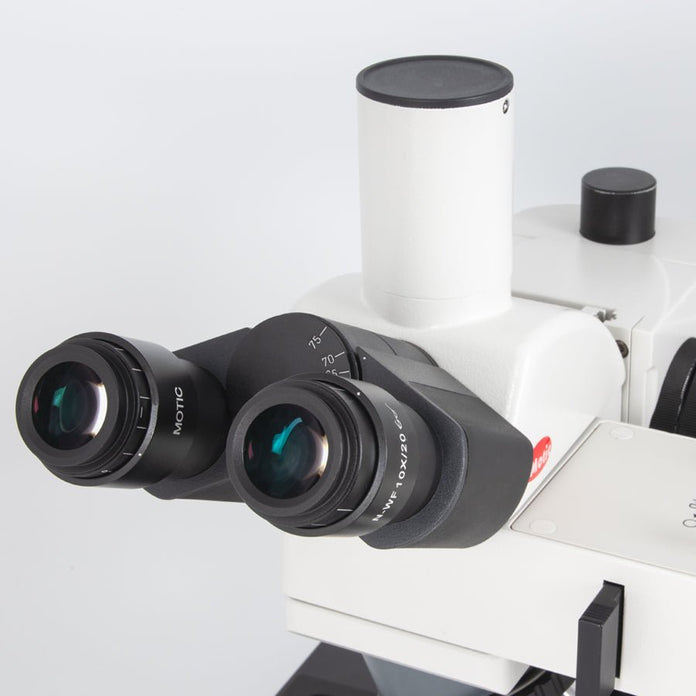

Eyepieces:Widefield N-WF10X/20mm with Diopter Adjustment
-
Intermediate Body:Epi-illuminator quartz halogen with integrated field and aperture diaphragms and external lamphouse
-
Objective Classification:CCIS LM Plan Achromatic, DIN
-
Objective Mounting Thread:W 4/5" x 1/36" (RMS standard)
-
Stand Type:Upright
-

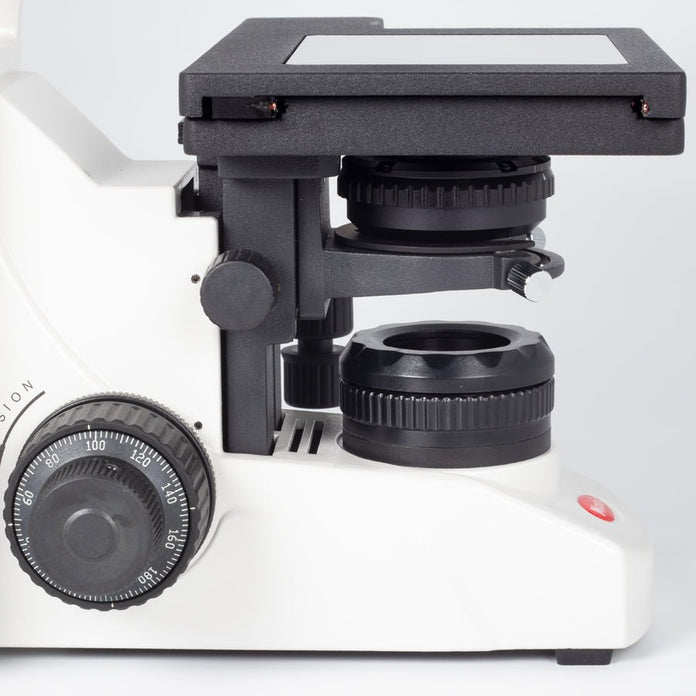

Stage:Mechanical stage, hard coated with built-in low position coaxial stage control
-
Focus Mechanism:Coaxial coarse and fine focusing system with tension adjustment
-
Fine Focus Precision:2 µm
-
Focusing Stroke:30 mm
-
Upper Limit Stop:Upper limit stop preset but adjustable
-
Incident Illumination:Quartz halogen 12V/50W with integrated field and aperture diaphragms
-
Illumination Interchangeability:Quartz halogen 12V/50W or LED 3W
-
Illumination Features:External lamp house for Epi-illuminator
-
Transformer:External
-
Power Supply:100-240V (CE)
-
Accessories Included:Dust cover, power cord, Allen key
-
Net Weight:12.5kg
