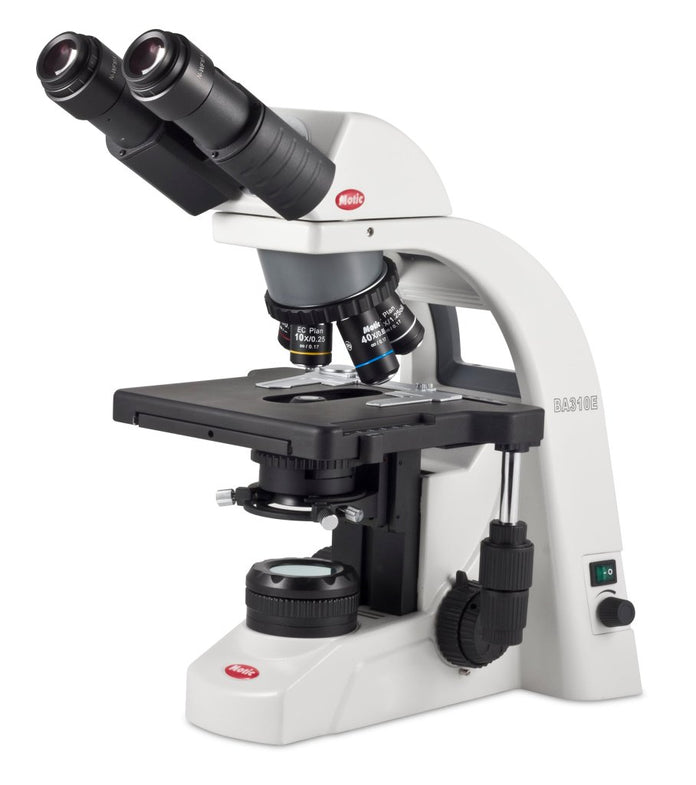

The BA310 is designed for the rigors of daily routine work in the demanding applications of universities, clinics, laboratories, and many other life sciences or medical applications requiring quality optical performance.

Product Range

SKU Name
1100402700082 Motic Instruments - 1100402700082 - BA310E LED Trinocular Upright Microscopes, BTI10 Camera bundle
1100100402645 Motic Instruments - 1100100402645 - BA310E Upright Upright Microscopes, Standard Lab Phase Package
1100401200851 Motic Instruments - 1100401200851 - BA310E LED Trinocular Upright Microscopes, BMH4000X Camera bundle
1100100402631 Motic Instruments - 1100100402631 - BA310E LED Binocular Upright Microscopes (6000K)
1100100402641 Motic Instruments - 1100100402641 - BA310E LED Trinocular Upright Microscopes (6000K)

Features

The BA310 is designed for the rigors of daily routine work in the demanding applications of universities, clinics, laboratories, and many other life sciences or medical applications requiring quality optical performance. BA310's full Kohler configuration provides maximum illumination quality for even the most demanding samples. Additional contrast methods like Phase contrast, polarization, and darkfield and discussion/teaching devices ensure that the BA310 offers long term functionality to all user levels.

Specifications

Overview

  • Nominal Height:
    15.7" (39.88 cm)
  • Nominal Width:
    8.7" (22.1 cm)
  • Nominal Length:
    15.7" (39.88 cm)

Technical Data

  • Inclination:
    30° inclined, 360° rotating
  • Interpupillary Distance:
    48-75 mm
  • Diopter Adjustment:
    On both eyepieces, ±5 diopter
  • Eyepieces:
    Widefield N-WF10X/20mm with diopter adjustment
  • Nosepiece:
    Reversed quintuple
  • Objectives:
    4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm)
  • Objective Mounting Thread:
    W 4/5" x 1/36" (RMS standard)
  • Stand Type:
    Upright
  • Stage:
    Mechanical stage with built-in low position rackless coaxial stage control with tension adjustment and sample holder
  • Stage Size:
    180 x 170 mm
  • Travel Range X&Y:
    80 x 55 mm
  • Focus Mechanism:
    Coaxial coarse and fine focusing system with tension adjustment
  • Focusing Stroke:
    20 mm
  • Upper Limit Stop:
    Upper limit stop preset but adjustable
  • Filter Holder:
    On top of the illuminator with fixing cap
  • Transmitted Illumination:
    Koehler Quartz halogen 6V/30W with intensity control
  • Transformer:
    Internal
  • Power Supply:
    100-240V (CE)
  • Accessories Included:
    Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, spare fuse, cord hanger, thumb screw
