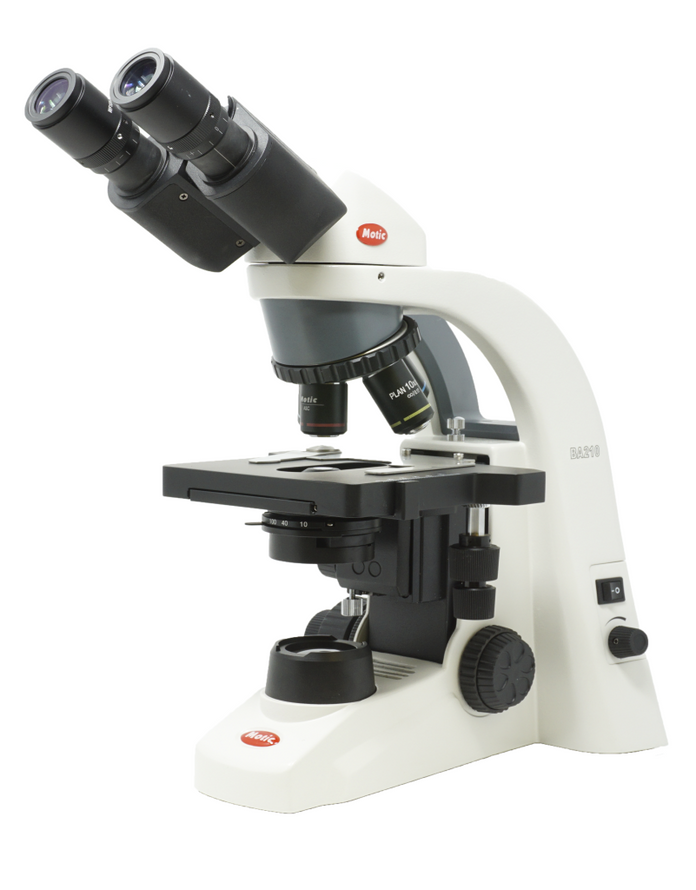

The BA210S biological compound microscope is designed for advanced biology students, teachers, doctors, and lab technicians. Every aspect of these microscopes contributes to making your daily work easier. The ergonomic shape of the stand and the comfortability of the different heads enables fatigue-free viewing for many hours.

Product Range

SKU Name
1100100403831 Motic Instruments - 1100100403831 - BA210S LED Binocular Upright Microscopes
1100100403841 Motic Instruments - 1100100403841 - BA210S LED Trinocular Upright Microscopes

Features

The BA210S biological compound microscope is designed for advanced biology students, teachers, doctors, and lab technicians. Every aspect of these microscopes contributes to making your daily work easier. The ergonomic shape of the stand and the comfortability of the different heads enables fatigue-free viewing for many hours.


Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Specifications

Overview

  • Nominal Height:
    15.6" (39.62 cm)
  • Nominal Width:
    7.5" (19.05 cm)
  • Nominal Length:
    14.2" (36.07 cm)

Technical Data

  • Optical System:
    Colour Corrected Infinity Optical System (CCIS)
  • Inclination:
    30° inclined, 360° rotating
  • Interpupillary Distance:
    55-75 mm
  • Diopter Adjustment:
    On both eyepieces, ±5 diopter
  • Eyepieces:
    Widefield N-WF10X/20mm with diopter adjustment
  • Nosepiece:
    Reversed quadruple
  • Objective Classification:
    CCIS® EC Plan Achromatic, DIN
  • Objectives:
    4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm)
  • Objective Mounting Thread:
    W 4/5"x1/36" (RMS standard)
  • Stand Type:
    Upright
  • Stage:
    Mechanical stage with built-in low position coaxial stage control and sample holder
  • Stage Size:
    140 x 135 mm
  • Travel Range X&Y:
    76 x 50 mm
  • Condenser:
    Focusable Abbe condenser N.A. 1.25 with slot for contrast sliders
  • Diaphragm:
    Iris diaphragm
  • Focus Mechanism:
    Coaxial coarse and fine focusing system with tension adjustment
  • Fine Focus Precision:
    2 µm
  • Focusing Stroke:
    25 mm
  • Upper Limit Stop:
    Upper limit stop preset but adjustable
  • Filter Holder:
    On top of the illuminator
  • Transmitted Illumination:
    LED 3W with intensity control
  • Transformer:
    Internal
  • Power Supply:
    100-240V (CE)
  • Accessories Included:
    Dust cover, power cord, Allen key, Immersion oil (5ml), spare fuse, cord hanger, thumb screw
  • Net Weight:
    7.2kg
