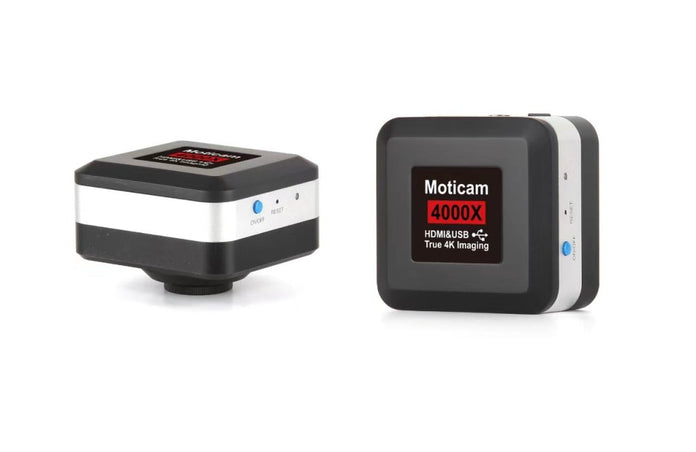

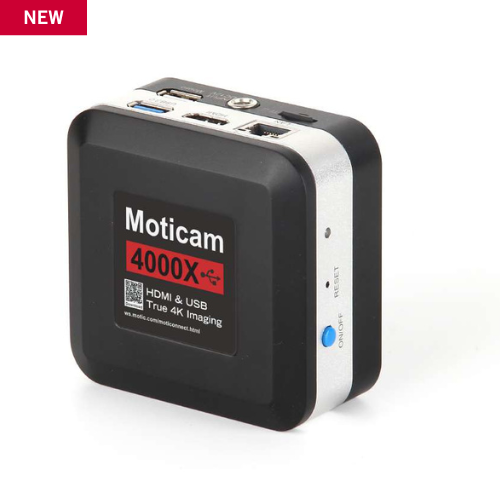

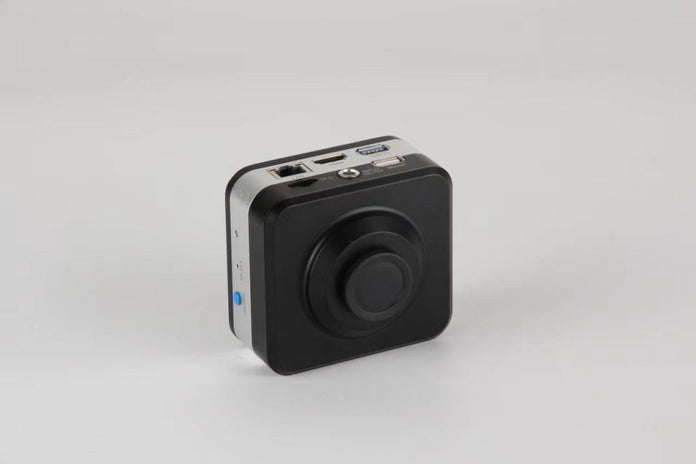

Moticam 4000X.

Features

Moticam 4000X - True 4K Imaging


Discover our newest Moticam 4000X, designed for efficiency and to output fast live images at 4K (3840 x 2160 px).

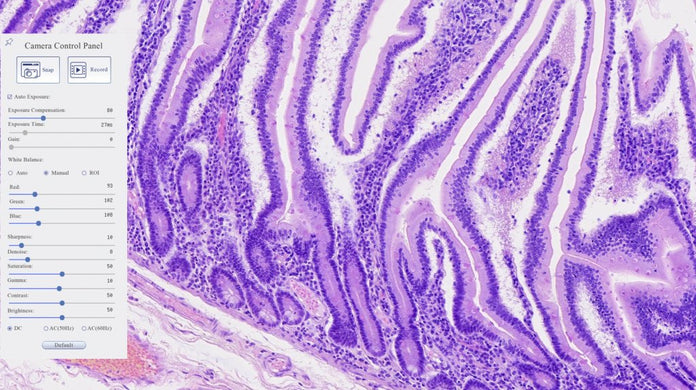

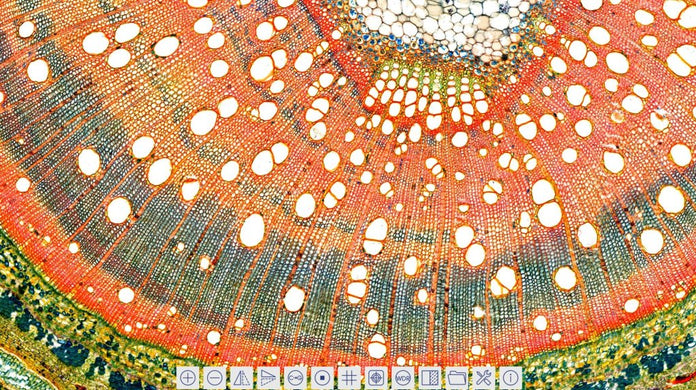

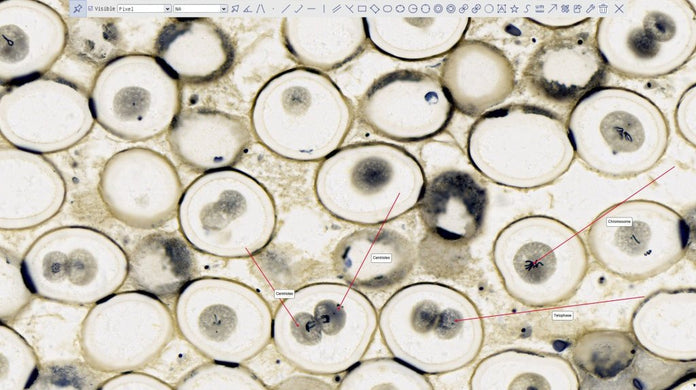

Connect it through the HDMI port to a screen and display your live image. With the use of the on-board software and a USB mouse, you can make live measurements, notes, image adjustments and more, directly on the HDMI screen, without the need for a computer.


Thanks to its integrated SD card slot and USB ports, saving images won't require a computer, making it easy to save and organize your images and videos. You can also connect your camera through USB to a Windows, or Mac computer, and even display your samples simultaneously.


The Full HD affordable multi-tasking microscopy camera. The Moticam 4000X is dedicated to documentation of microscopic results with a clear focus on maximum colour fidelity and fast live image.


It does not require a computer for standard operation, as it comes with softwares that will allow you to use it by simply connecting it to a screen through its HDMI port, and with a mouse connected to the USB port of the camera.


Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Specifications

Overview

Technical Data

  • Sensor Type:
    sCMOS
  • Sensor Size:
    1/2.8"
  • Imaging Area:
    6.4 mm (Diagonal)
  • Capture Resolution:
    8MP (3840 x 2160 Pixels)
  • Image Capture Resolution (On SD-Card):
    8MP (3840 x 2160 Pixels)
  • Video Capture Resolution (On SD-Card):
    1080P (1920 x 1080 Pixels)
  • Live Display Mode Through USB:
    4K (3840 x 2160 Pixels)
  • Live Display Mode Through Wi-Fi:
    4K (3840 x 2160 Pixels)
  • Live Display Mode Through Ethernet:
    4K (3840 x 2160 Pixels)
  • Live Display Mode Through HDMI:
    4K (3840 x 2160 Pixels)
  • Pixel Size:
    1.45 x 1.45 μm
  • Scan Mode:
    Progressive
  • Shutter Mode:
    Rolling Shutter
  • Data Transfer:
    HDMI, USB, Wi-Fi, Ethernet, Micro SD-Card
  • Max. Frames Per Second (FPS) - HDMI:
    4K (3840 x 2160) @30FPS
  • Max. Frames Per Second (FPS) - USB 3.0:
    1920 x 1080 @30FPS, 3840 x 2160 @25FPS
  • Max. Frames Per Second (FPS) - Wi-Fi:
    1920 x 1080 @25FPS, 3840 x 2160 @12FPS
  • Exposure Time:
    0.03ms ~ 1000ms
  • Operating Temperature:
    From -10°C To +50°C, Non-Condensing
  • Sensitivity:
    300mV With 1/30s
  • Slot:
    Micro SD-Card
  • Buttons:
    On/Off
  • Support Device:
    TWAIN, SDK And Direct Show Driver
  • Minimum Computer Requirements:
    Core2, 2.8GHz, 8GB RAM
  • Lens Mount:
    C-Mount
  • Focusable Lens:
    12 mm
  • Software:
    On-Board Software, Motic Images Plus 3.1 For Windows 10 And macOS, MotiConnect App For iOS And Android
  • Functions:
    Exposure, Gain, White Balance, Color Adjustment, Sharpness, Denoising, Zoom, Mirror, Comparison, Freeze, Measure, Cross, Browse
  • Power Supply:
    12V (External Power Supply)
  • Notes:
    USB Port For Mouse Control, Transport And Storage Case Included
