Motic Instruments - 1100600101513 - Moticam BTI10 Camera
Features
Moticam BTI - Versatile Tablet Microscopy Solution
The Moticam BTI combines a space-saving camera hardware with new Wi-Fi technology.

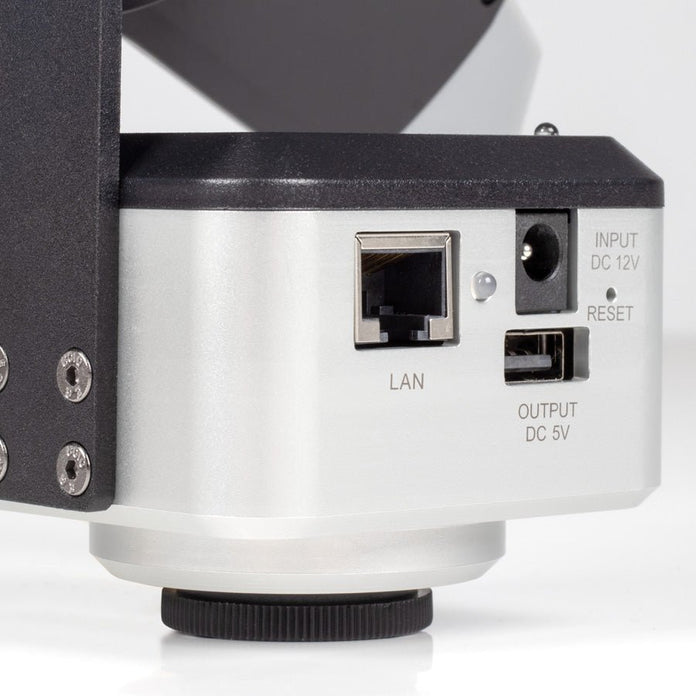

The 4MP Wi-Fi camera comes together with an Android tablet (up to 10") to deliver fast live images (up to 30 fps) on any microscope with a vertical photo tube.
This setup is perfect for the immediate presentation of image results to a greater public in your lab. Detaching the tablet for an even more flexible application is possible thanks to the Wi-Fi data transfer.

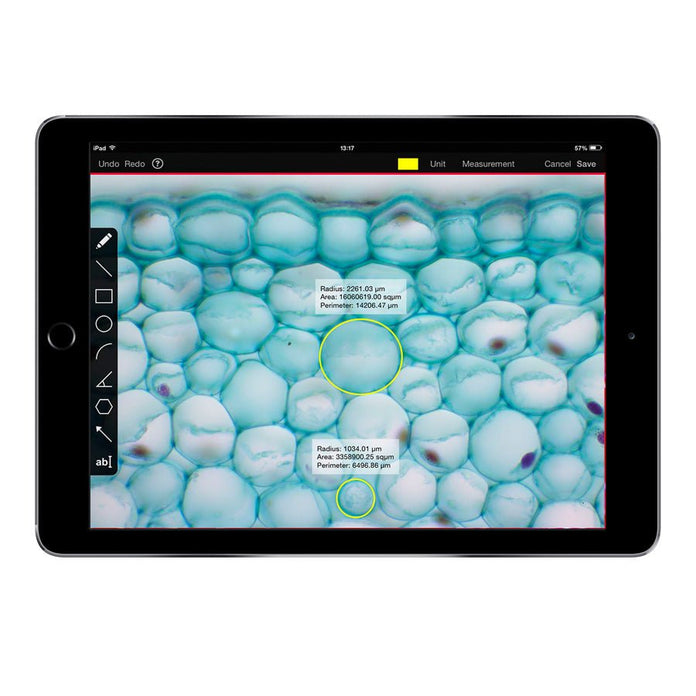

Use the pre-installed MotiConnect App and get ready to capture, edit and share your microscope images from the tablet in a few taps.
Specifications
Overview
Camera Technical Data
-
Sensor Type:CMOS
-
Sensor Size:1/3"
-
Live Resolution:1920 x 1080, 1280 x 720 (Display Resolution)
-
Image Capture Resolution:4.0MP
-
Video Capture Resolution:720P (HD)
-
Data Transfer:Wi-Fi (2.4 Or 5 GHz) and ethernet (RJ45)
-
Pixel Size:2.0μm x 2.0μm
-
Lens Mount:C-Mount
-

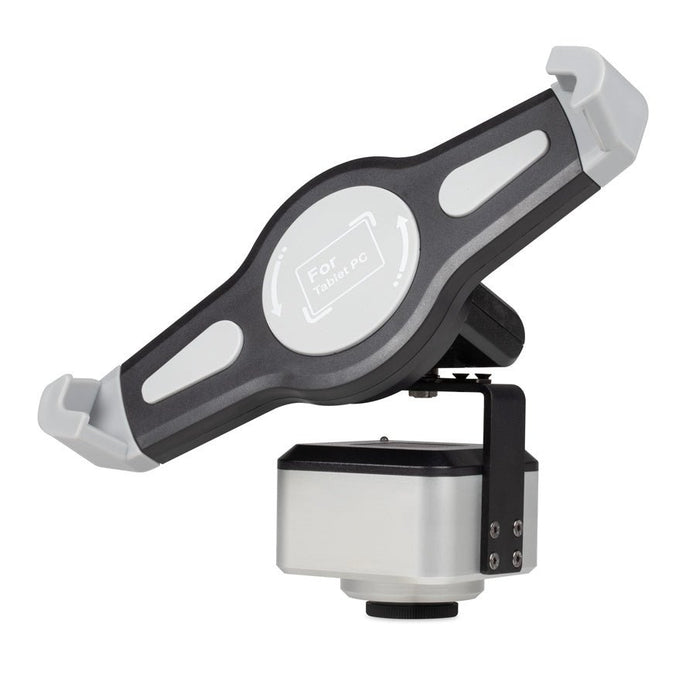

Tablet Bracket Holder:For tablets from 7" To 10"
Tablet Technical Data
-
Size:218 x 136 x 910 mm
-
System:Android 10
-
Pre-Installed App:MotiConnect
-
Language:Multi-Language
-
CPU:2.0GHz 8-core
-
RAM:6GB DDR3
-
NAND FLASH:128GB
-
Display:1920 x 1200
-
Ports:MicroSD/MMC/TF Card (Support up 64 GB), 3.5mm Audio, USB-C (USB OTG and Charging)
-
Support Display Format:MPEG-1/2 (DAT, MPG, VOB, TS), MPEG-4, H.263 (3GP, MOV, MP4), H.264 (AVI, MKV, MP4, MOV, 3GP), RM, RMVB, FLV, WEBM
-
Support Audio Format:MP3, WMA, MP2, OGG, AAC, M4A, OGA, FLAC, APE, MP1, WAV
-
Picture Format:JPEG, GIF, BMP, PNG
-
Camera:Front (5M Pixels) + Rear (8M Pixels)
-
Package Includes:USB Cable, Motic 4-dot calibration slide, universal power supply 100V-240V (CE)
