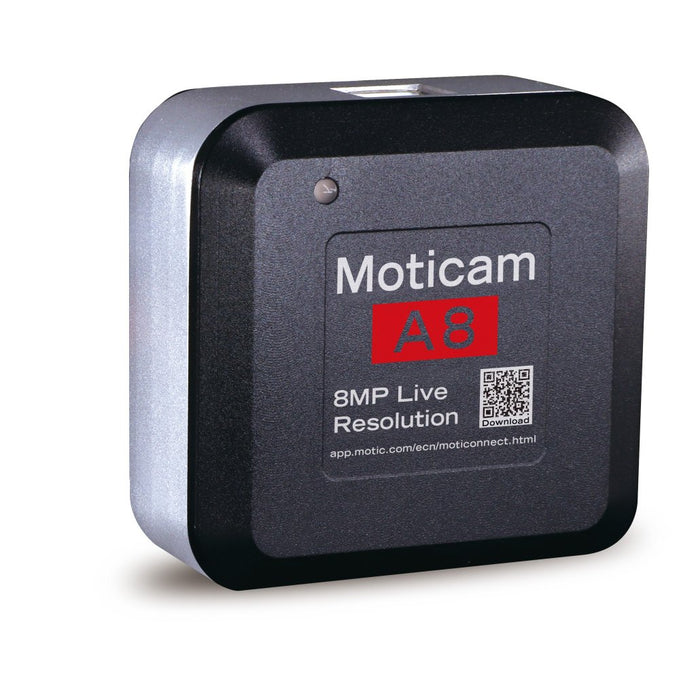

Motic Instruments - 1100600101443 - Moticam A8 Camera
Features
Flexibility through VARIATION, INHERIT knowledge to the next generation, SELECTING everything you need whlist saving TIME and being able to ADAPT. The 5 words of VISTA, the basic steps of evolution and latin “vedere" for sight.
The new A Series is designed with those steps in mind. The letter A is also the first letter of the Alphabet and used for designations. Even the story of human existence starts with Adam, Atoms and Alpha.
Live - Print - Documentation.
The Moticam A8 uses a fast sCMOS imaging setup to deliver 3840x2160 pixel images at up to 15 frames per second. That’s 4K imaging with 8MP resolution. With its higher resolution, the A8 is also ideal for documentation and flexible image capturing.
Specifications
Overview
Technical Data
-
Sensor Type:sCMOS
-
Sensor Size:1/3"
-
Capture Resolution:8MP
-
Live Display Modes:3840 x 2160, 1920 x 1080
-
Pixel Size:1.34 x 1.34 μm
-
Max. FPS:15fps @3840 x 2160, 30fps @1920 x 1080
-
Lens Mount:C-Mount
-
Additional Support:TWAIN, SDK, DS Driver
-
Operating System:Windows 10 Or Higher, OSX10.9 Or Higher
-
Software:MotiConnect (Free Download With Updates)
-
Included Accessories:Focusable Lens, 30mm & 38mm Eyepiece Adapters, Calibration Slide, Macro Viewing Tube, C-Ring, USB Cable, Dust Cap
