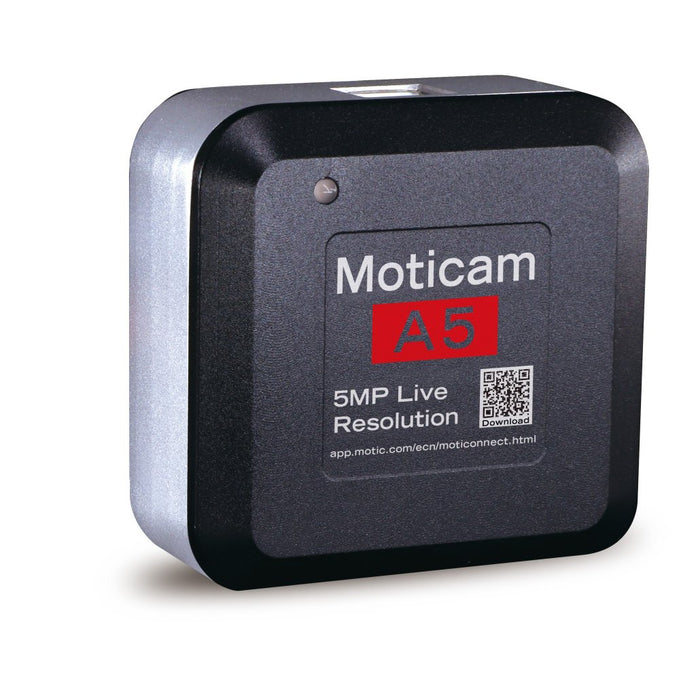

Motic Instruments - 1100600101302 - Moticam A5 Camera
Features
Flexibility through VARIATION, INHERIT knowledge to the next generation, SELECTING everything you need whlist saving TIME and being able to ADAPT. The 5 words of VISTA, the basic steps of evolution and latin “vedere" for sight.
The new A Series is designed with those steps in mind. The letter A is also the first letter of the Alphabet and used for designations. Even the story of human existence starts with Adam, Atoms and Alpha.
The Ideal Balance.
At full 5MP live resolution, the Moticam A5 delivers up to 30 frames per second at 2592x1944 pixels per frame. Given its higher pixel count as well as sensitive sCMOS construction, the Moticam A5 performs well in many different contrasting techniques.
Specifications
Overview
Technical Data
-
Sensor Type:sCMOS
-
Sensor Size:1/2.8"
-
Capture Resolution:5MP
-
Live Display Modes:2592 x 1944, 2048 x 1536, 1920 x 1080
-
Pixel Size:2 x 2 μm
-
Max. FPS:30fps @2592 x 1944, 30fps @1920 x 1080
-
Lens Mount:C-Mount
-
Additional Support:TWAIN, SDK, DS Driver
-
Operating System:Windows 10 Or Higher, OSX10.9 Or Higher
-
Software:MotiConnect (Free Download With Updates)
-
Included Accessories:Focusable Lens, 30mm & 38mm Eyepiece Adapters, Calibration Slide, Macro Viewing Tube, C-Ring, USB Cable, Dust Cap
