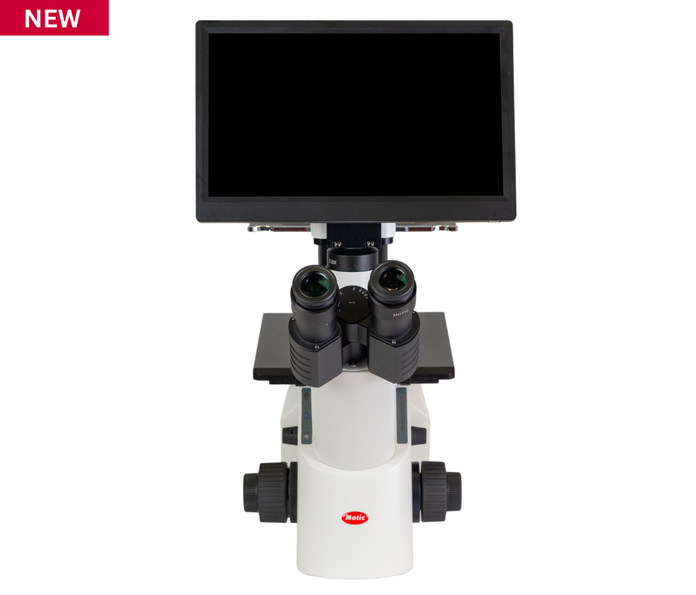

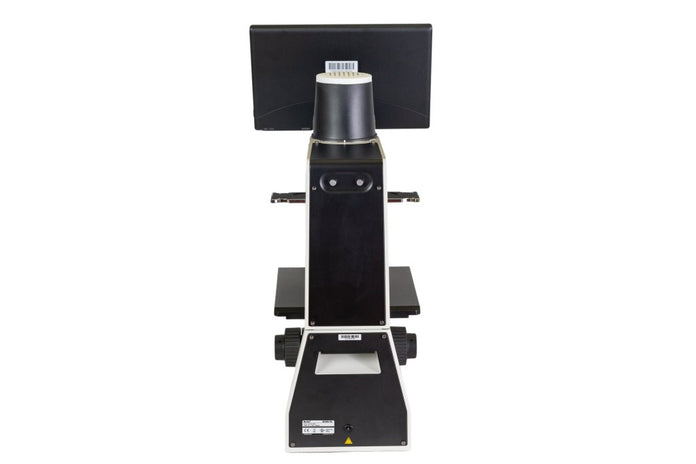

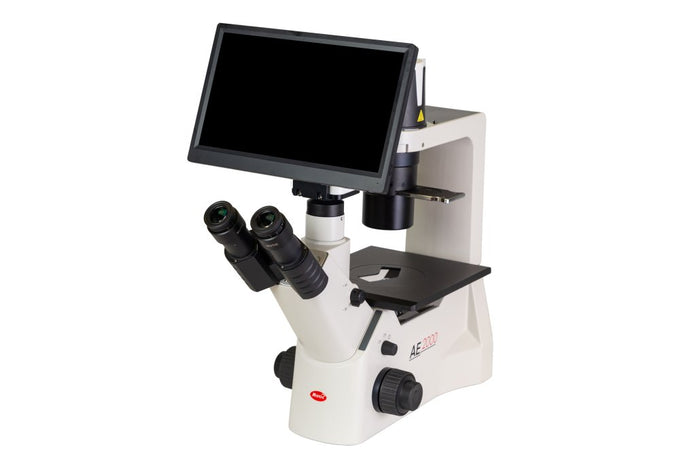

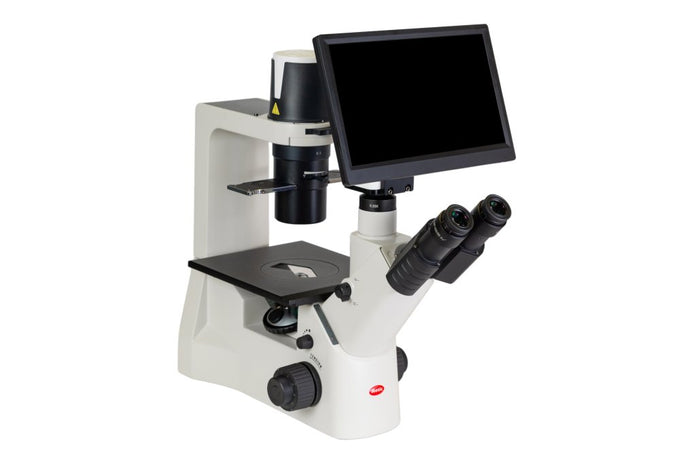

Motic Instruments - 1100501700013 - AE2000 Trinocular Inverted Microscopes LED and BMH4000X Camera Bundle

Features
The AE2000 is a revolutionary design that is packed with features and sets a new benchmark in affordable inverted microscopy. Motic’s AE2000 inverted microscope is designed for routine live cell inspection with an easy and flexible set up, ideal for university, routine-clinical, and lab environments. The model’s main applications offer superior image quality when viewing cell cultures in microbiology, living organisms and tissue culture samples. The entire microscope including optical system is manufactured completely lead free, following the International RoHS regulations.
This digital camera bundle comes with:
- AE2000 Trinocular
- Moticam BMH4000X
- Compatible C-mount adapter
Designed for routine-lab or clinical work, as well as research requirements in Pharmaceutical Laboratories or Universities, the AE2000 is more than capable of fulfilling the expectations of its users. Superb optical quality can be expected from a brand new optical series of both bright field and phase contrast lenses, following Motic ́s proven successful CCIS® Infinity Optical System.
Specifications
Overview
-
Nominal Height:19.5" (49.53 cm)
-
Nominal Width:8.6" (21.84 cm)
-
Nominal Length:21.9" (55.63 cm)
AE2000 Trinocular Data
-
Optical System:Colour Corrected Infinity Optical System (CCIS)
-
Observation Tube:Binocular head, Siedentopf type, 360° swiveling
-
Inclination:45° inclined
-
Interpupillary Distance:48-75 mm
-
Diopter Adjustment:On both eyepieces, ±5 diopter
-
Eyepieces:Widefield N-WF10X/20 mm with diopter adjustment
-
Nosepiece:Left side facing quadruple
-
Objective Classification:CCIS Plan Achromatic, DIN
-
Objectives:4X/0.10 (WD 12.6mm), PH10X/0.25 (WD 4.1mm), LWD PH20X/0.30 (WD 4.7mm), LWD 40X/0.50 (WD 3.0mm)
-
Objective Mounting Thread:W 4/5" x 1/36" (RMS standard)
-
Stand Type:Inverted
-
Stage:Plain stage with metal and glass stage inserts
-
Stage Size:200 x 239 mm
-
Condenser:ELWD condenser N.A. 0.30 (WD = 72mm) with filter holder
-
Diaphragm:Iris diaphragm
-
Focus Mechanism:Coaxial coarse and fine focusing with tension adjustment
-
Fine Focus Precision:2 µm
-
Focusing Stroke:8 mm
-
Free Working Distance:Working distance without condenser 184mm
-
Transmitted Illumination:Quartz Halogen 6V/30W with intensity control
-
Illumination Interchangeability:Quartz Halogen 6V/30W or LED 3W
-
Illumination Features:Auto on/off
-
Transformer:External
-
Power Supply:100-240V (CE)
-
Accessories:Dust cover, power cord, blue, green and neutral density filters, phase ring Ph1, centering telescope, centering keys
-
Net Weight:12.2kg

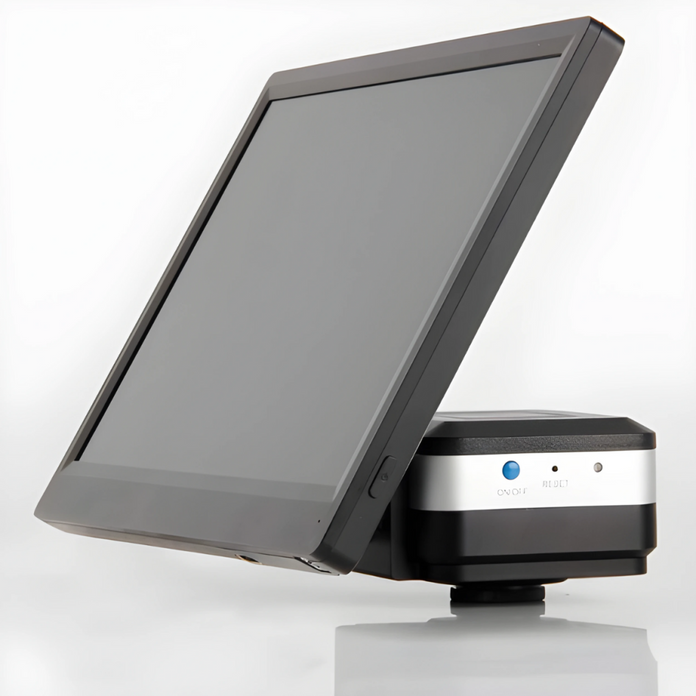

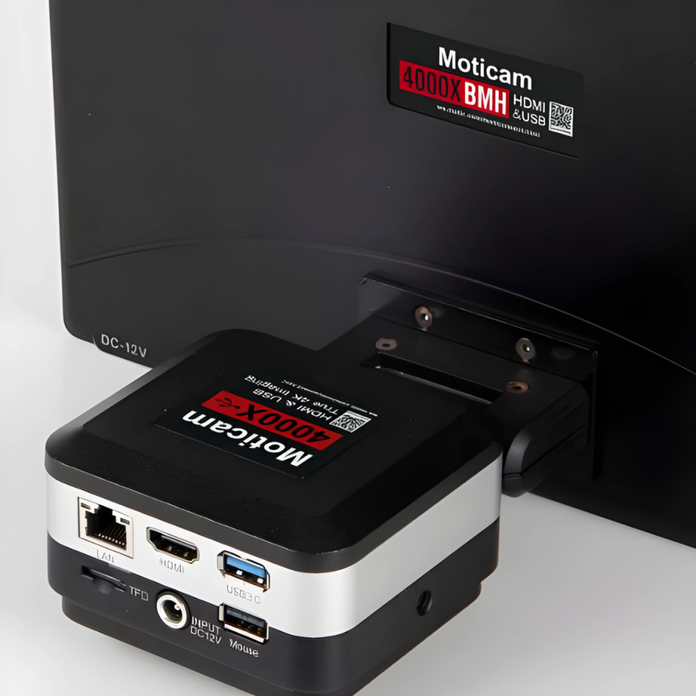

Moticam BMH4000X Data
-
Sensor Size:1/2.8"
-
Image Output:HDMI, UXC, WIFI 5
-
Capture Resolution:8MP
-
Pixel Size:1.45 x 1.45 m
-
Scan Mode:Progressive
-
Shutter Mode:Rolling Shutter
-
Lens Mount:C-Mount
-
Max. Frames per Second (fps) - HDMI:(4K) 30fps @ 3840 x 2160
-
Max. Frames per Second (fps) - WIFI:25fps @ 1920 x 1080, 12fps @ 3840 x 2160
-
Max. Frames per Second (fps) - USB:(4K) 30fps @ 3840 x 2160
-
Image Capture:JPEG/TIFF format with 4K (3840x2160) resolution in SD card
-
Video Record:4K (30fps @ 3840 x 2160) H264/H265 encoded MP4 file in SD card
-
Screen:LCD 11.6" native 1920 x 1080 pixels full HD screen
-
Software:Motic Images Plus 3.1 for Windows/Mac OS
