With the new SMZ-171 Stereo Zoom microscope Motic proudly introduces an optically improved addition to its well-established SMZ Stereo series.

Features

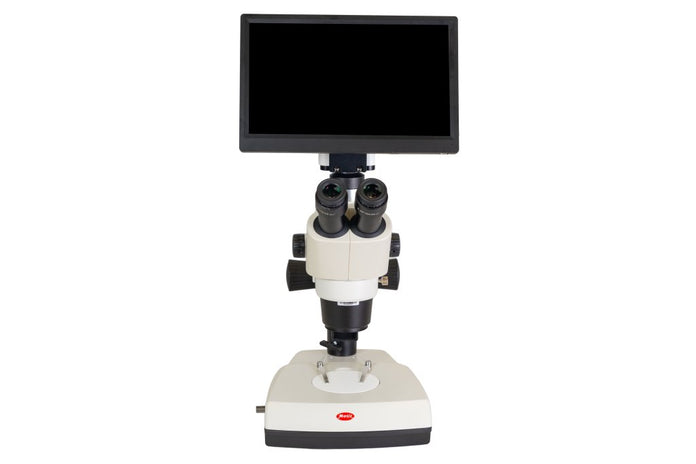

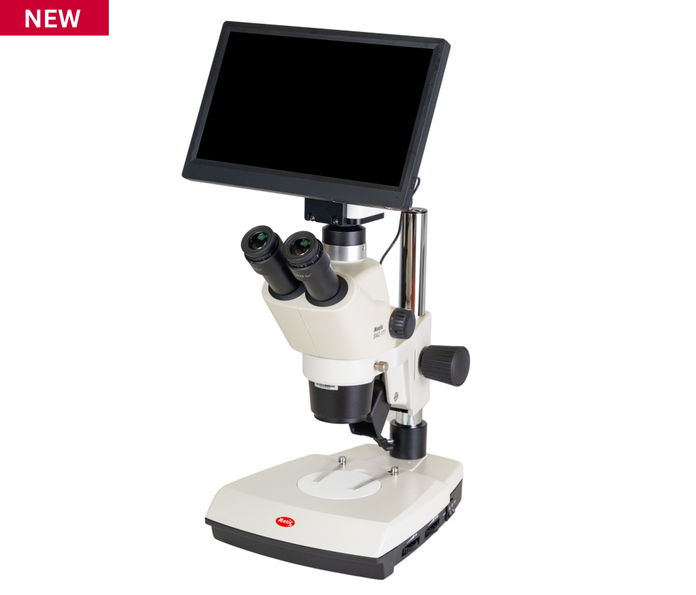

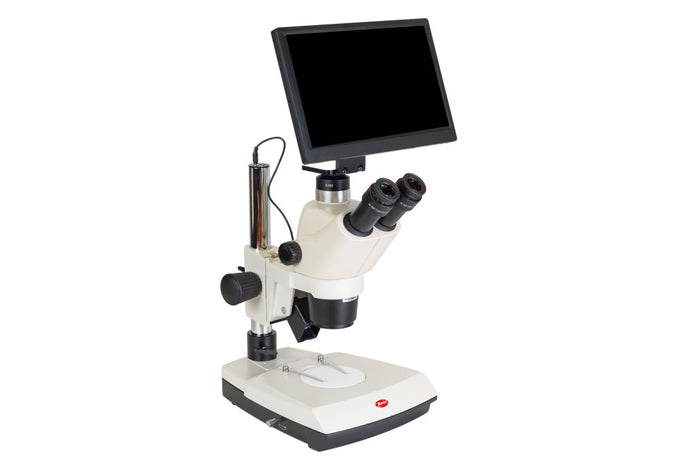

This digital camera bundle comes with:


  • SMZ-171-TLED Trinocular
  • Moticam BMH4000X
  • Compatible C-mount adapter

With the new SMZ-171 Stereo Zoom microscope Motic proudly introduces an optically improved addition to its well-established SMZ Stereo series. New materials for ESD compatibility as well as optimized LED illumination options have been added to this series to create a versatile Stereo microscope platform for a wide range of biological and material science applications.


Watch the video

Watch the video

Specifications

Overview

SMZ-171-TLED Tecnical Data

  • Observation Tube:
    Trinocular head
  • Optical System:
    Greenough
  • Inclination:
    45° inclined
  • Trinocular Light Split:
    Fixed 50/50
  • Interpupillary Distance:
    52-75 mm
  • Diopter Adjustment:
    On both eyepieces, ±5 diopter
  • Eyepieces:
    Widefield N-WF10X/23mm with diopter adjustment
  • Objectives System:
    Zoom, ratio 6/7/1
  • Objectives:
    0.75X ~ 5X
  • Working Distance:
    110 mm
  • Stand Type:
    Pole type stand without illumination
  • Head Holder:
    For Ø32mm column and Ø76mm head
  • Focus Mechanism:
    Coarse focusing system with tension adjustment
  • Focusing Stroke:
    49 mm
  • Accessories Included:
    Dust cover, black/white stage plate
  • Base Size:
    303 x 239 mm
  • Column/Arm:
    Height 290mm, Ø32mm
  • Net Weight:
    5.7kg

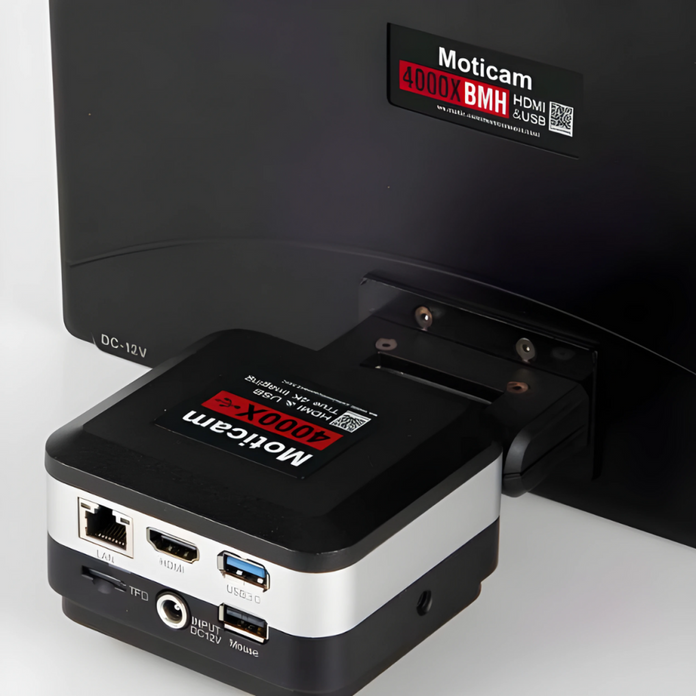

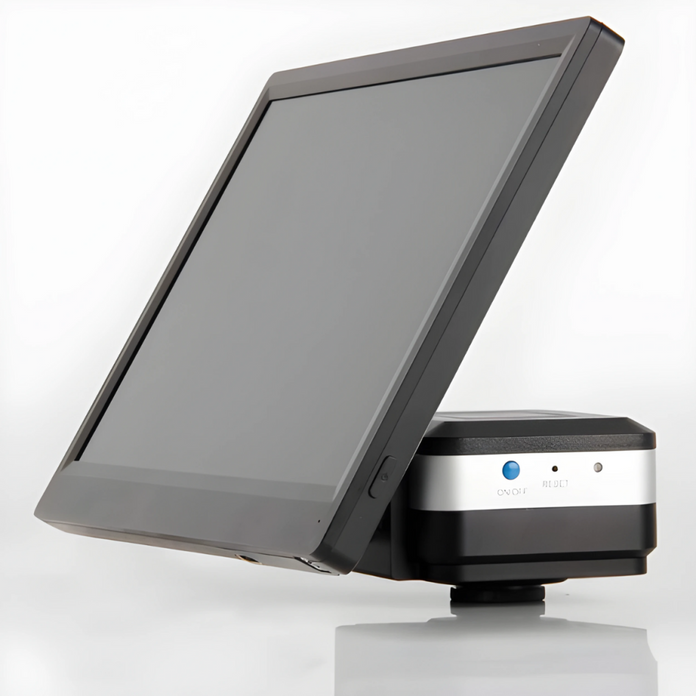

Moticam BMH4000X Technical Data

  • Sensor Size:
    1/2.8"
  • Image Output:
    HDMI, UXC, WIFI 5
  • Capture Resolution:
    8 MP
  • Pixel Size:
    1.45 x 1.45 µm
  • Scan Mode:
    Progressive
  • Shutter Mode:
    Rolling shutter
  • Max. Frames per Second (fps) - HDMI & USB:
    4K (30 fps @ 3840 x 2160)
  • Max. Frames per Second (fps) - WIFI:
    25 fps @ 1920 x 1080, 12 fps @ 3840 x 2160
  • Image Capture:
    JPEG/TIFF format with 4K (3840 x 2160) resolution saved to SD card
  • Video Record:
    4K (30 fps @ 3840 x 2160), H.264/H.265 encoded MP4 file in SD card
  • Screen:
    LCD 11.6" Full HD
  • Software:
    Motic Image Plus 3.1 for Windows/Mac OS
