Overview

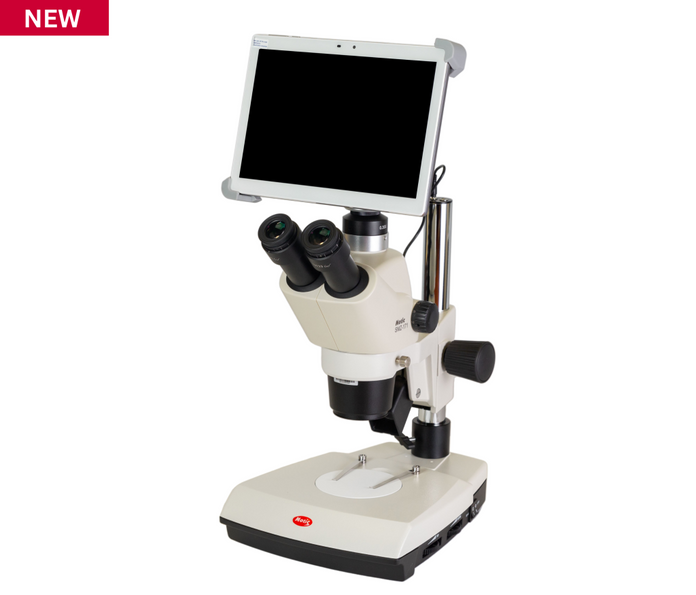

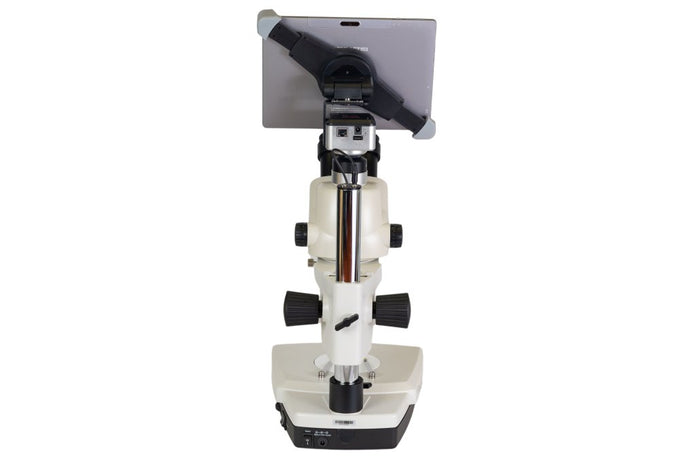

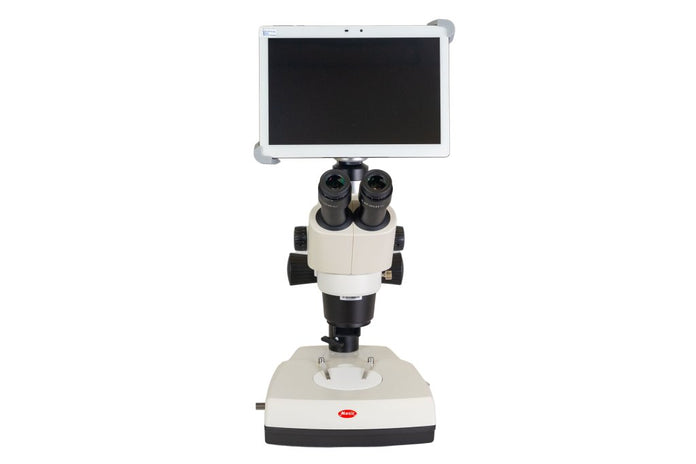

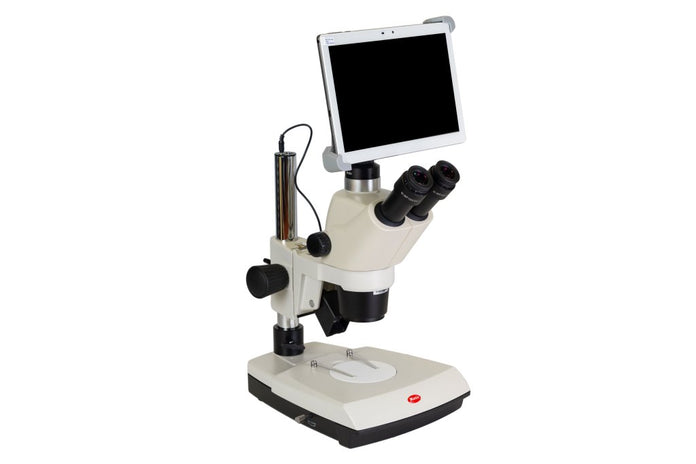

SMZ-171-TLED Tecnical Data

• Observation Tube:
  Trinocular head
• Optical System:
  Greenough
• Inclination:
  45° inclined
• Trinocular Light Split:
  Fixed 50/50
• Interpupillary Distance:
  52-75 mm
• Diopter Adjustment:
  On both eyepieces, ±5 diopter
• Eyepieces:
  Widefield N-WF10X/23mm with diopter adjustment
• Objectives System:
  Zoom, ratio 6/7/1
• Objectives:
  0.75X ~ 5X
• Working Distance:
  110 mm
• Stand Type:
  Pole type stand without illumination
• Head Holder:
  For Ø32mm column and Ø76mm head
• Focus Mechanism:
  Coarse focusing system with tension adjustment
• Focusing Stroke:
  49 mm
• Accessories Included:
  Dust cover, black/white stage plate
• Base Size:
  303 x 239 mm
• Column/Arm:
  Height 290mm, Ø32mm
• Net Weight:
  6.2 kg

Moticam BTI10 Camera

• Sensor Type:
  CMOS
• Sensor Size:
  1/3"
• Live Resolution:
  1920 x 1080, 1280 x 720 (display resolution)
• Image Capture Resolution:
  4.0 MP
• Video Capture Resolution:
  720P (HD)
• Data Transfer:
  Wi-Fi (2.4 or 5 GHz) and Ethernet (RJ45)
• Pixel Size:
  2.0 µm x 2.0 µm
• Lens Mount:
  C-Mount
• Tablet Bracket Holder:
  For tablets from 7" to 10"

Moticam BTI10 Tablet

• Size:
  218 x 136 x 910 mm
• System:
  Android 10
• Pre-Installed App:
  MotiConnect
• Language:
  Multi-language support
• CPU:
  2.0 GHz, 8-core
• RAM:
  6 GB DDR3
• NAND FLASH:
  128 GB
• Display:
  1920 x 1200
• Ports:
  MicroSD/MMC/TF Card (up to 64 GB), 3.5 mm Audio, USB-C (OTG & Charging)
• Cameras:
  Front (5M Pixels), Rear (8M Pixels)
