The Panthera Generation 2 has been redesigned with better optics and a better lighting system.

Features

This digital camera bundle comes with:

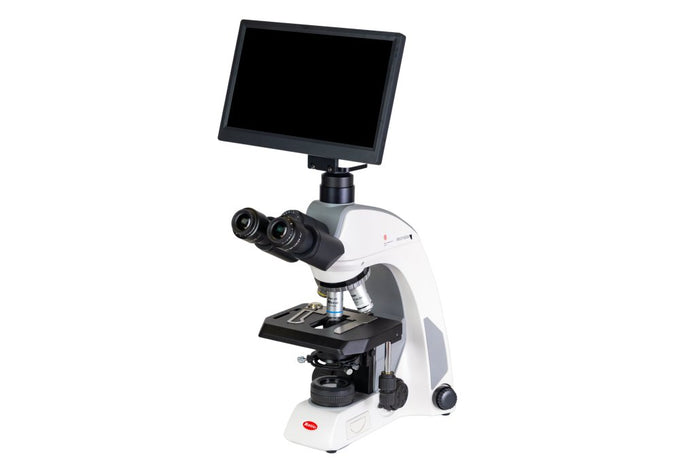

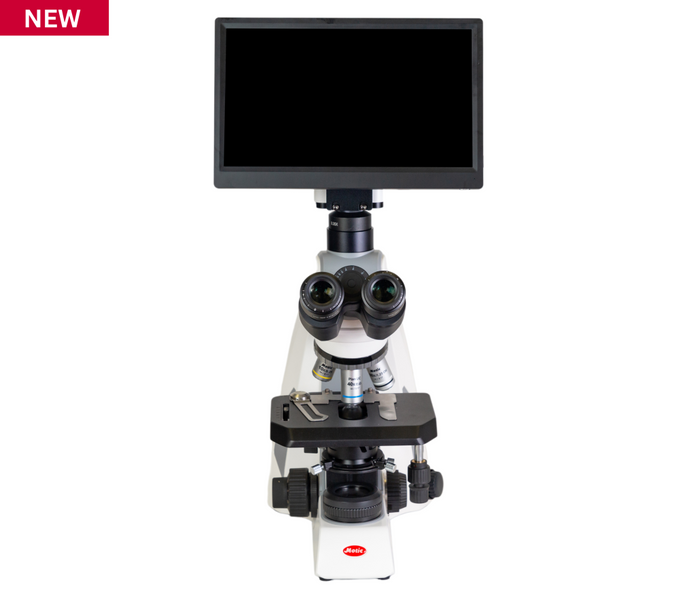

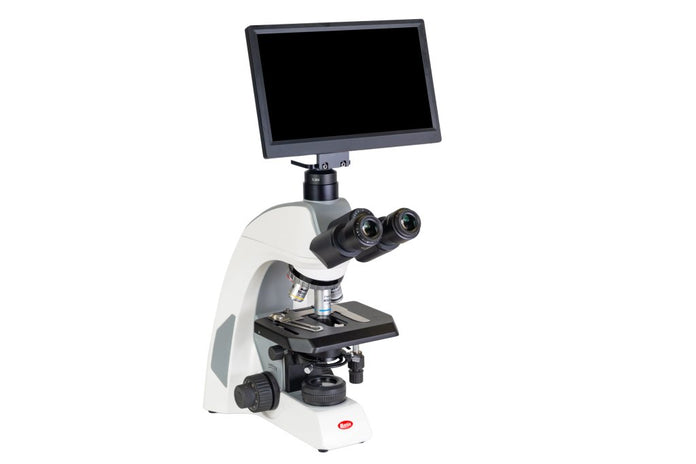

  • Panthera C2 Trinocular

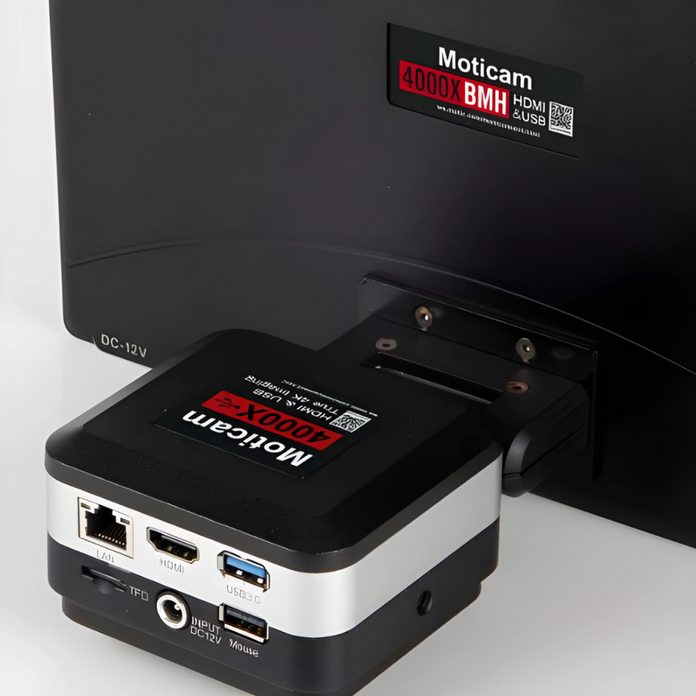

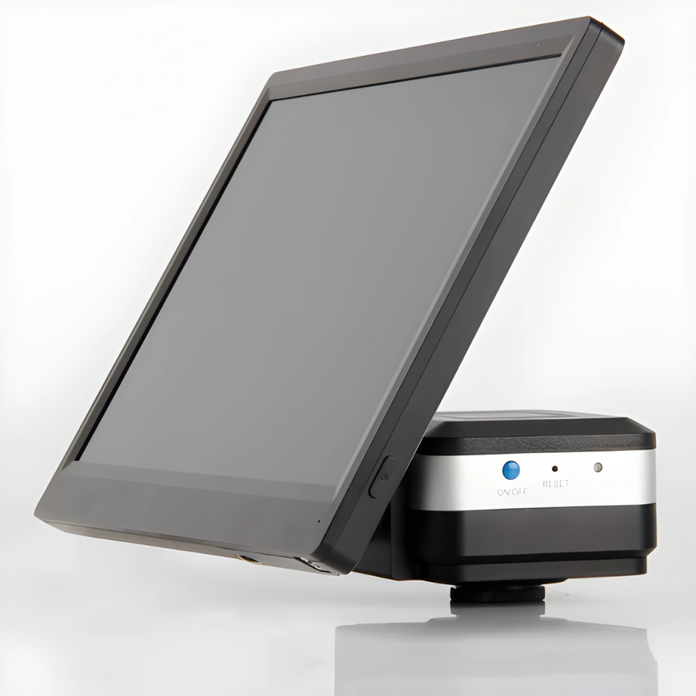

  • Moticam BMH4000X
  • Compatible C-mount adapter

If it is about stained sections with cover glass protection, about native smears, fine needle biopsies, blood smears which wanted to be treated with or without cover glass: Panthera C2 with its selection of specified optics is your solution. The new Ultra Contrast (UC) objectives with additional glass elements to reach a 22mm Field of View, working perfectly together with neutral eyepieces (thanks to CCIS© a fully corrected intermediate image for digital access is granted) guarantee best performance in terms of color fidelity and contrast. Microscope hardware, illumination, handling: Simply convincing.


Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Specifications

Overview

  • Nominal Height:
    16" (40.64 cm)
  • Nominal Width:
    8.3" (21.08 cm)
  • Nominal Length:
    11.1" (28.19 cm)

Panthera C2 Trinocular Technical Data

  • Optical System:
    Color Corrected Infinity Optical System (CCIS)
  • Observation Tube:
    Trinocular head, Siedentopf type, 360° swiveling
  • Inclination:
    25° inclined, 360° swiveling
  • Trinocular Light Split:
    Fixed 50/50
  • Interpupillary Distance:
    48-75 mm
  • Diopter Adjustment:
    On both eyepieces, ±5 diopter
  • Eyepieces:
    Widefield UC-WF10X/20mm with diopter adjustment
  • Nosepiece:
    Reversed quintuple, coded
  • Objective Classification:
    CCIS UC Plan Achromatic (Pb free)
  • Objective Mounting Thread:
    W 4/5" x 1/36" (RMS standard)
  • Stand Type:
    Upright
  • Stage Size:
    185 x 145 mm
  • Travel Range X&Y:
    75 x 50 mm
  • Condenser:
    Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
  • Diaphragm:
    Iris diaphragm
  • Focus Mechanism:
    Coaxial coarse and fine focusing system with tension adjustment
  • Fine Focus Precision:
    2  µm
  • Focusing Stroke:
    25  mm
  • Upper Limit Stop:
    Upper limit stop preset but adjustable
  • Filter Holder:
    On top of the illuminator with fixing cap
  • Transmitted Illumination:
    Koehler LED 3W & Quartz halogen 6V/30W with intensity control
  • Illumination Interchangeability:
    Halogen/LED and LED color temperature interchangeability
  • Transformer:
    Internal
  • Power Supply:
    110-240V (CE)
  • Other Features:
    USB 2.0 for external camera power
  • Accessories Included:
    Dust cover, power cord, Allen key, blue filter, halogen bulb, LED module
  • Net Weight:
    8.4kg

Moticam BMH4000X Technical Data

  • Sensor Size:
    1/2.8"
  • Image Output:
    HDMI, UXC, WIFI 5
  • Capture Resolution:
    8MP
  • Pixel Size:
    1.45 x 1.45 µm
  • Scan Mode:
    Progressive
  • Shutter Mode:
    Rolling Shutter
  • Lens Mount:
    C-Mount
  • Max. Frames per Second (fps) - HDMI:
    (4K) 30fps @ 3840 x 2160
  • Max. Frames per Second (fps) - WIFI:
    25fps @ 1920 x 1080, 12fps @ 3840 x 2160
  • Max. Frames per Second (fps) - USB:
    (4K) 30fps @ 3840 x 2160
  • Image Capture:
    JPEG/TIFF format with 4K (3840 x 2160) resolution in SD card
  • Video Record:
    4K (30fps @ 3840 x 2160) H264/H265 encoded MP4 file in SD card
  • Screen:
    LCD 11.6" native 1920 x 1080 pixels full HD screen
  • Software:
    Motic Images Plus 3.1 for Windows/Mac OS
