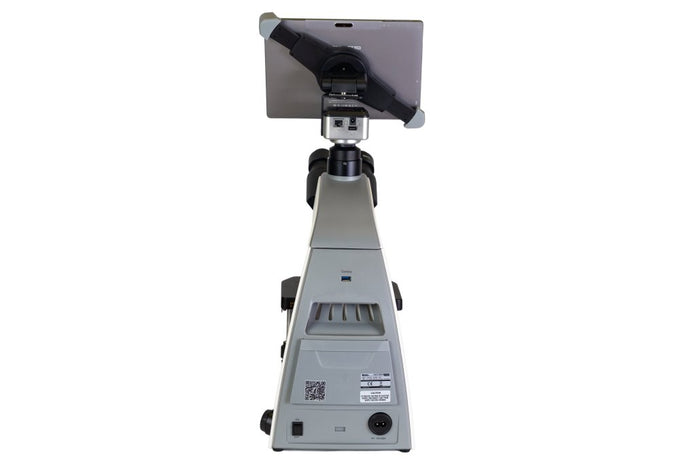

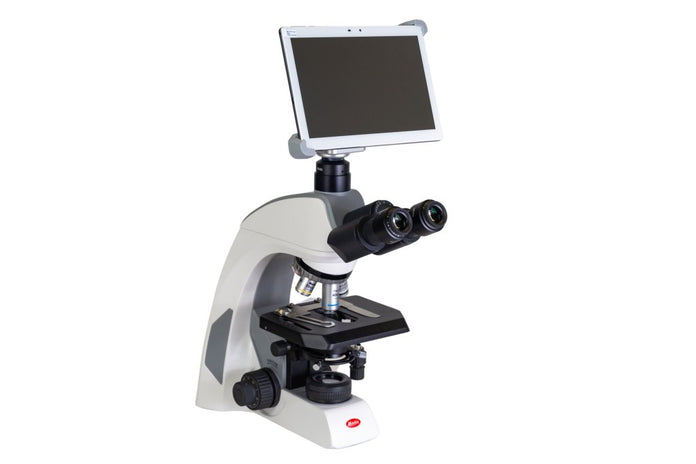

Motic Instruments - 1100403300222 - Panthera C2 Trinocular Upright Microscopes and BTI10 Digital Camera Bundles

Motic Instruments - 1100403300222 - Panthera C2 Trinocular Upright Microscopes and BTI10 Digital Camera Bundles
Motic Instruments - 1100403300222 - Panthera C2 Trinocular Upright Microscopes and BTI10 Digital Camera Bundles
Motic Instruments - 1100403300222 - Panthera C2 Trinocular Upright Microscopes and BTI10 Digital Camera Bundles
Motic Instruments - 1100403300222 - Panthera C2 Trinocular Upright Microscopes and BTI10 Digital Camera Bundles

Motic Instruments - 1100403300222 - Panthera C2 Trinocular Upright Microscopes and BTI10 Digital Camera Bundles

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert

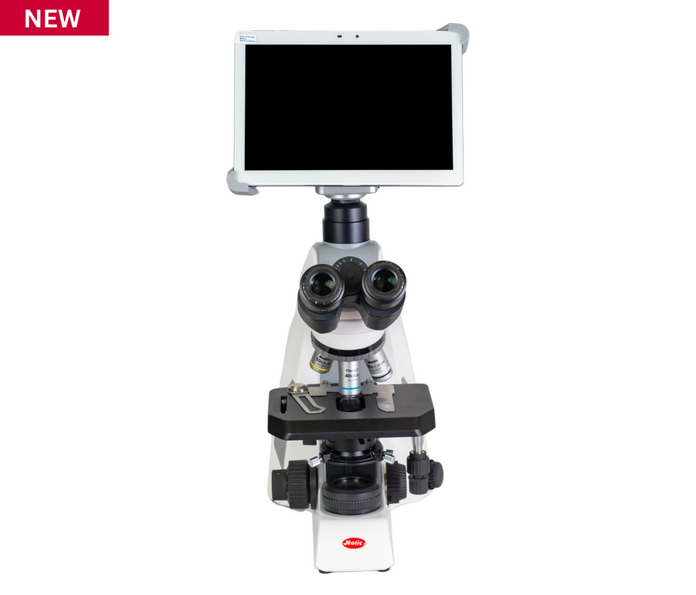

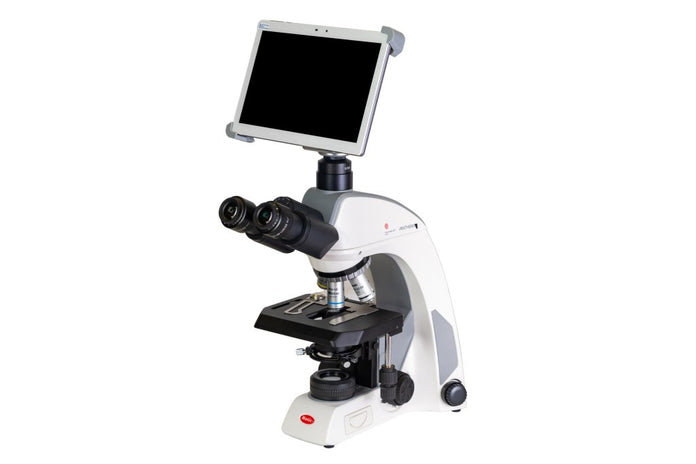

The Panthera Generation 2 has been redesigned with better optics and a better lighting system.

Features

This digital camera bundle comes with:


  • Panthera C2 Trinocular
  • Moticam BMH4000X
  • Compatible C-mount adapter

If it is about stained sections with cover glass protection, about native smears, fine needle biopsies, blood smears which wanted to be treated with or without cover glass: Panthera C2 with its selection of specified optics is your solution. The new Ultra Contrast (UC) objectives with additional glass elements to reach a 22mm Field of View, working perfectly together with neutral eyepieces (thanks to CCIS© a fully corrected intermediate image for digital access is granted) guarantee best performance in terms of color fidelity and contrast. Microscope hardware, illumination, handling: Simply convincing.


Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Specifications

Overview

  • Nominal Height:
    16" (40.64 cm)
  • Nominal Width:
    8.3" (21.08 cm)
  • Nominal Length:
    11.1" (28.19 cm)

Panthera C2 Trinocular Technical Data

  • Optical System:
    Color Corrected Infinity Optical System (CCIS)
  • Observation Tube:
    Trinocular head, Siedentopf type, 360° swiveling
  • Inclination:
    25° inclined, 360° swiveling
  • Trinocular Light Split:
    Fixed 50/50
  • Interpupillary Distance:
    48-75 mm
  • Diopter Adjustment:
    On both eyepieces, ±5 diopter
  • Eyepieces:
    Widefield UC-WF10X/20mm with diopter adjustment
  • Nosepiece:
    Reversed quintuple, coded
  • Objective Classification:
    CCIS UC Plan Achromatic (Pb free)
  • Objective Mounting Thread:
    W 4/5" x 1/36" (RMS standard)
  • Stand Type:
    Upright
  • Stage Size:
    185 x 145 mm
  • Travel Range X&Y:
    75 x 50 mm
  • Condenser:
    Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
  • Diaphragm:
    Iris diaphragm
  • Focus Mechanism:
    Coaxial coarse and fine focusing system with tension adjustment
  • Fine Focus Precision:
    2  µm
  • Focusing Stroke:
    25  mm
  • Upper Limit Stop:
    Upper limit stop preset but adjustable
  • Filter Holder:
    On top of the illuminator with fixing cap
  • Transmitted Illumination:
    Koehler LED 3W & Quartz halogen 6V/30W with intensity control
  • Illumination Interchangeability:
    Halogen/LED and LED color temperature interchangeability
  • Transformer:
    Internal
  • Power Supply:
    110-240V (CE)
  • Other Features:
    USB 2.0 for external camera power
  • Accessories Included:
    Dust cover, power cord, Allen key, blue filter, halogen bulb, LED module
  • Net Weight:
    8.4kg

Moticam BTI10 Camera

  • Sensor Type:
    CMOS
  • Sensor Size:
    1/3"
  • Imaging Area:
    5.44 x 3.07  mm
  • Capture Resolution Info:
    4MP (2592 x 1520 pixels)
  • Live Display Mode through Wi-Fi:
    1280 x 720, 1920 x 1080 pixels (Full HD)
  • Live Display Mode through Ethernet:
    1280 x 720, 1920 x 1080 pixels (Full HD)
  • Pixel Size:
    2.0 x 2.0  µm
  • Scan Mode:
    Progressive
  • Data Transfer:
    Wi-Fi (2.4 & 5 GHz), Ethernet
  • Max. Frames per Second (fps):
    1920 x 1080 @ 30 fps, 1280 x 960 @ 30 fps (depending on Wi-Fi strength)
  • Exposure Time:
    0.03 msec to 0.03 sec
  • Operating Temperature:
    From 0 to +60 °C, non-condensing
  • Max. Signal to Noise Ratio:
    38.3 dB
  • Dynamic Range:
    64.6 dB
  • Sensitivity:
    1.9V/Lux-sec (550 nm)
  • Buttons:
    On/Off
  • Support Device:
    Universal web browser (HTML5)
  • Supported OS:
    Windows XP/Vista/7/8/10, Mac OSX, Android 4.0 or higher, iOS7 or higher
  • Minimum Computer Requirements:
    2GHz dual-core, RAM 2GB, video memory minimum 512 MB
  • Lens Mount:
    C-Mount
  • Screen:
    10" IPS tablet
  • Software:
    MotiConnect App for iOS and Android (pre-installed)
  • Power Supply:
    12V (external power supply)
  • Tablet Bracket Holder:
    For tablets from 7" to 10"

Moticam BTI10 Tablet

  • Size (mm):
    218 x 136 x 10 mm
  • System:
    Android 10
  • Pre-installed App:
    MotiConnect
  • Language:
    Multi-language
  • CPU:
    2.0 GHz 8-core
  • RAM:
    6GB DDR3
  • NAND Flash:
    128GB
  • Display:
    10" IPS, 16/10 ratio
  • Display Resolutions:
    1920 x 1200
  • Touch Panel:
    Capacitive multi-touch screen
  • GPU:
    MALI-G720 MP3
  • Ports:
    MicroSD/MMC/TF card (support up to 64 GB), 3.5 mm audio, USB-C (USB OTG and charging)
  • Speaker:
    8Ω/0.7 W x 2
  • Mic:
    Internal MIC
  • Wi-Fi:
    802.11 b/g/n
  • Bluetooth:
    4.0
  • Camera:
    Front (5MP), Rear (8MP)
  • Picture Format:
    JPG, JPEG, GIF, BMP, PNG
  • Battery:
    3.7V/3500mAh Rechargeable Battery
  • Power Supply Tablet Input:
    AC100-240V. 50-60HZ
  • Power Supply Tablet Output:
    DC5V 2A (Support USB port charging）
  • Certifications:
    FCC CE
  • Color:
    White
