The Panthera Generation 2 has been redesigned with better optics and a better lighting system.

Features

This digital camera bundle comes with:

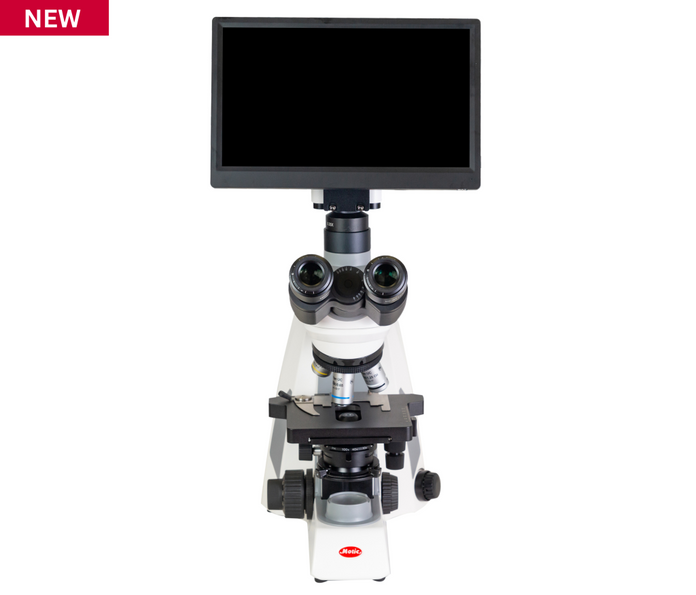

  • Panthera E2 Trinocular
  • Moticam BMH4000X
  • Compatible C-mount adapter

With the new microscope Series Panthera E2, your decision is distinct. This microscope series allows to experience Life Sciences in a new way, with best possible learning effect. From now on, you achieve your teaching goals in the easiest way, with highest precision and accuracy that meet all your intentions in mind. Even in a small lab with a small budget, these new technologies from Motic will convince you.


Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Specifications

Overview

  • Nominal Height:
    16" (40.64 cm)
  • Nominal Width:
    8.3" (21.08 cm)
  • Nominal Length:
    11.1" (28.19 cm)

Panthera E2 Trinocular Technical Data

  • Optical System:
    Colour Corrected Infinity Optical System (CCIS)
  • Observation Tube:
    Trinocular head, Siedentopf type, 360° swiveling
  • Inclination:
    25° inclined, 360° rotating (storage saving), 360° swivelling
  • Trinocular Light Split:
    Fixed 50/50
  • Interpupillary Distance:
    48-75 mm
  • Diopter Adjustment:
    On both eyepieces, ±5 diopter
  • Eyepieces:
    Widefield UC-WF10X/22mm with diopter adjustment
  • Nosepiece:
    Reversed quadruple
  • Objective Classification:
    CCIS UC Plan Achromatic (Pb free)
  • Objective Mounting Thread:
    W 4/5" x 1/36" (RMS standard)
  • Stand Type:
    Upright
  • Stage Size:
    140 x 135 mm
  • Travel Range X&Y:
    75 x 40 mm
  • Diaphragm:
    Iris diaphragm
  • Focus Mechanism:
    Coaxial coarse and fine focusing system with tension adjustment
  • Fine Focus Precision:
    2 μm
  • Focusing Stroke:
    25 mm
  • Upper Limit Stop:
    Upper limit stop preset but adjustable
  • Filter Holder:
    On top of the illuminator
  • Transmitted Illumination:
    Fixed Koehler LED 1W with intensity control
  • llumination Features:
    Nosepiece LED light intensity indicator
  • Transformer:
    Internal
  • Power Supply:
    110-240V (CE), USB 2.0 for battery pack
  • Other Features:
    USB 2.0 for external camera power
  • Accessories Included:
    Dust cover, power cord, Allen key
  • Net Weight:
    7.5kg

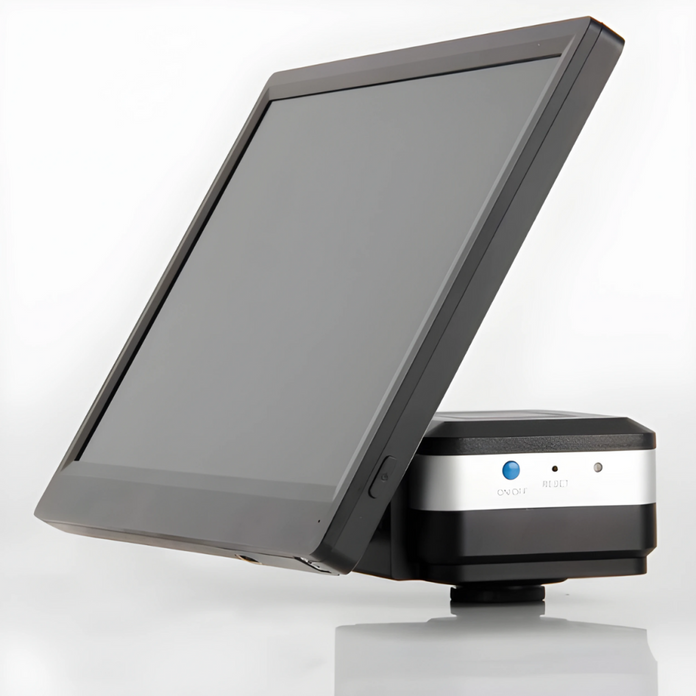

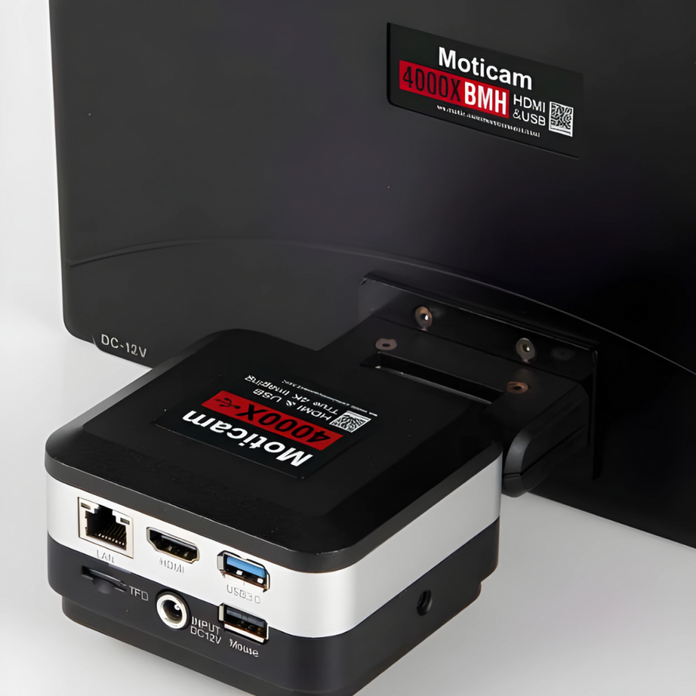

Moticam BMH4000X Technical Data

  • Sensor Size:
    1/2.8"
  • Image Output:
    HDMI, UXC, WIFI 5
  • Capture Resolution:
    8MP
  • Pixel Size:
    1.45 x 1.45 m
  • Scan Mode:
    Progressive
  • Shutter Mode:
    Rolling Shutter
  • Lens Mount:
    C-Mount
  • Max. Frames per Second (fps) - HDMI:
    (4K) 30fps @ 3840 x 2160
  • Max. Frames per Second (fps) - WIFI:
    25fps @ 1920 x 1080, 12fps @ 3840 x 2160
  • Max. Frames per Second (fps) - USB:
    (4K) 30fps @ 3840 x 2160
  • Image Capture:
    JPEG/TIFF format with 4K (3840 x 2160) resolution in SD card
  • Video Record:
    4K (30fps @ 3840 x 2160) H264/H265 encoded MP4 file in SD card
  • Screen:
    LCD 11.6" native 1920 x 1080 pixels full HD screen
  • Software:
    Motic Images Plus 3.1 for Windows/Mac OS
