The Panthera Generation 2 has been redesigned with better optics and a better lighting system.

Features

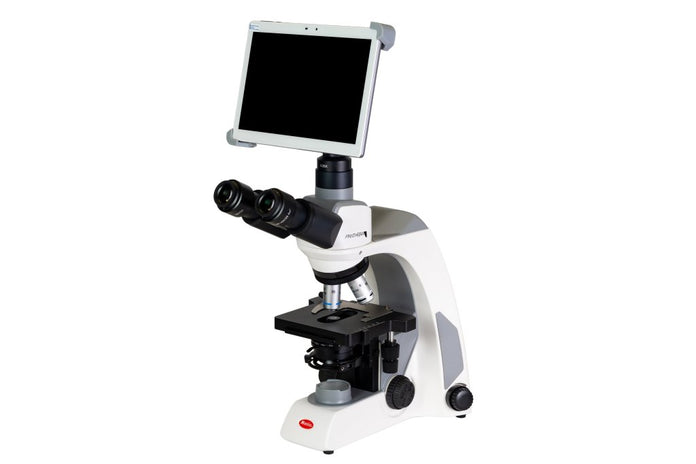

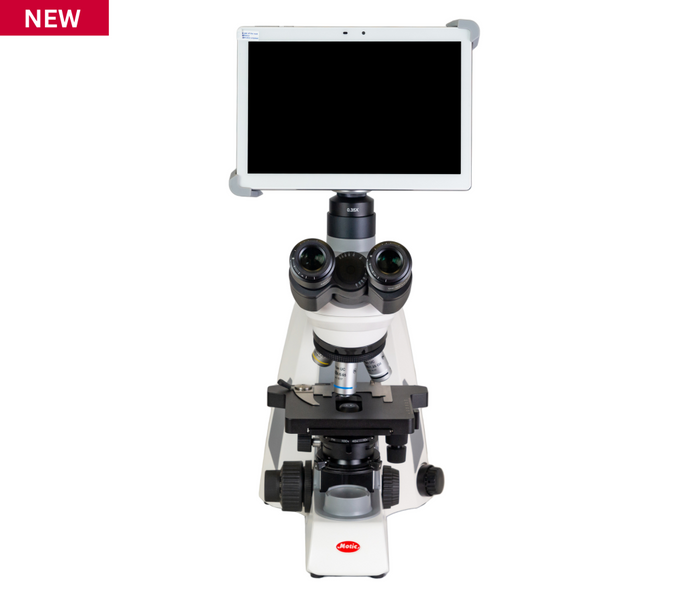

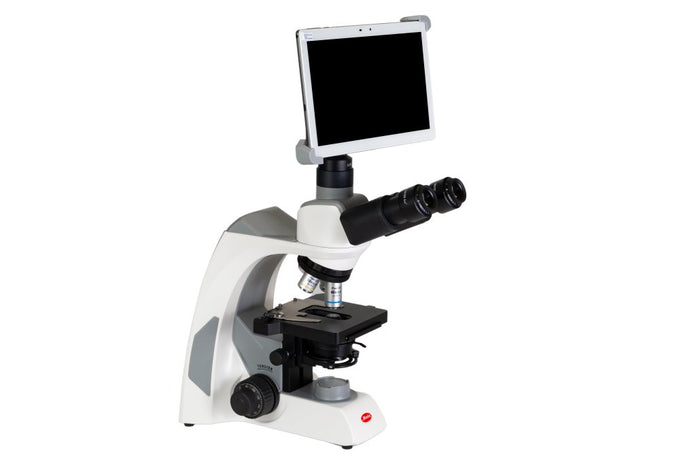

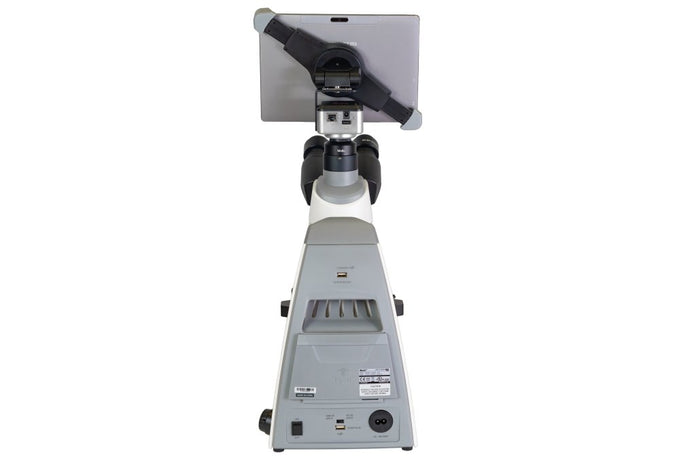

This digital camera bundle comes with:


  • Panthera E2 Trinocular
  • Moticam BTI10
  • Compatible C-mount adapter

With the new microscope Series Panthera E2, your decision is distinct. This microscope series allows to experience Life Sciences in a new way, with best possible learning effect. From now on, you achieve your teaching goals in the easiest way, with highest precision and accuracy that meet all your intentions in mind. Even in a small lab with a small budget, these new technologies from Motic will convince you.


Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Specifications

Overview

  • Nominal Height:
    15.6" (39.62 cm)
  • Nominal Width:
    8.3" (21.08 cm)
  • Nominal Length:
    11.1" (28.19 cm)

Panthera E2 Trinocular Technical Data

  • Optical System:
    Colour Corrected Infinity Optical System (CCIS)
  • Observation Tube:
    Trinocular head, Siedentopf type, 360° swiveling
  • Inclination:
    25° inclined, 360° rotating (storage saving), 360° swivelling
  • Trinocular Light Split:
    Fixed 50/50
  • Interpupillary Distance:
    48-75 mm
  • Diopter Adjustment:
    On both eyepieces, ±5 diopter
  • Eyepieces:
    Widefield UC-WF10X/22mm with diopter adjustment
  • Nosepiece:
    Reversed quadruple
  • Objective Classification:
    CCIS UC Plan Achromatic (Pb free)
  • Objective Mounting Thread:
    W 4/5" x 1/36" (RMS standard)
  • Stand Type:
    Upright
  • Stage Size:
    140 x 135 mm
  • Travel Range X&Y:
    75 x 40 mm
  • Diaphragm:
    Iris diaphragm
  • Focus Mechanism:
    Coaxial coarse and fine focusing system with tension adjustment
  • Fine Focus Precision:
    2 μm
  • Focusing Stroke:
    25 mm
  • Upper Limit Stop:
    Upper limit stop preset but adjustable
  • Filter Holder:
    On top of the illuminator
  • Transmitted Illumination:
    Fixed Koehler LED 1W with intensity control
  • llumination Features:
    Nosepiece LED light intensity indicator
  • Transformer:
    Internal
  • Power Supply:
    110-240V (CE), USB 2.0 for battery pack
  • Other Features:
    USB 2.0 for external camera power
  • Accessories Included:
    Dust cover, power cord, Allen key
  • Net Weight:
    7.5kg

Moticam BTI10 Camera Technical Data

  • Sensor Type:
    CMOS
  • Sensor Size:
    1/3"
  • Imaging Area:
    5.44 x 3.07 mm
  • Capture Resolution Info:
    4MP (2592 x 1520 pixels)
  • Live Display Mode Through Wi-Fi:
    1280 x 720, 1920 x 1080 pixels (Full HD)
  • Live Display Mode Through Ethernet:
    1280 x 720, 1920 x 1080 pixels (Full HD)
  • Pixel Size:
    2.0 x 2.0 μm
  • Scan Mode:
    Progressive
  • Data Transfer:
    Wi-Fi (2.4 & 5 GHz), Ethernet
  • Max. Frames Per Second (fps):
    1920x1080 @ 30 fps, 1280x960 @ 30 fps (depending on Wi-Fi strength)
  • Exposure Time:
    0.03 msec to 0.03 sec
  • Operating Temperature:
    From 0 to +60 Degrees Celsius (non-condensing)
  • Max. Signal To Noise Ratio:
    38.3dB
  • Dynamic Range:
    64.6dB
  • Sensitivity:
    1.9V/Lux-sec (550nm)
  • Buttons:
    On/Off
  • Support Device:
    Universal Web browser (HTML5)
  • Supported OS:
    Windows XP/Vista/7/8/10, MAC OSX, Android 4.0 or higher, iOS7 or higher
  • Minimum Computer Requirements:
    2GHz dual-core, RAM memory 2GB, Video memory min. 512 MB
  • Lens Mount:
    C-Mount
  • Screen:
    10" IPS Tablet
  • Software:
    MotiConnect App for iOS and Android (pre-installed)
  • Functions:
    Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system
  • Power Supply:
    12V (External Power supply)
  • Tablet Bracket Holder:
    For tablets from 7" to 10"
  • Package Includes:
    USB cable, Motic 4-dot calibration slide, universal power supply 100V-240V (CE)

Moticam BTI10 Tablet Technical Data

  • Size (mm):
    218 x 136 x 10 mm
  • System:
    Android 10
  • Pre-Installed App:
    MotiConnect
  • Language:
    Multi-Language
  • CPU:
    2.0GHz 8-core
  • RAM:
    6GB DDR3
  • NAND Flash:
    128GB
  • Display:
    10" (IPS) 16/10 Ratio
  • Display Resolutions:
    1920 x 1200
  • Touch Panel:
    Capacitive Multi-Touch Screen
  • GPU:
    MALI-G720 MP3
  • Ports:
    MicroSD/MMC/TF Card (Support up to 64 GB), 3.5mm Audio, USB-C (USB OTG and Charging)
  • Speaker:
    8Ω/0.7Wx2
  • Mic:
    MIC (Internal)
  • Wi-Fi:
    802.11b/g/n
  • Bluetooth:
    4.0
  • Camera:
    Front (5M Pixels) + Rear (8M Pixels)
  • Support Display Format:
    MPEG-1/2 (DAT, MPG, VOB, TS), MPEG-4, H.263 (3GP, MOV, MP4), H.264 (AVI, MKV, MP4, MOV, 3GP), RM, RMVB, FLV, WEBM
  • Support Audio Format:
    MP3, WMA, MP2, OGG, AAC, M4A, OGA, FLAC, APE, MP1, WAV
  • Picture Format:
    JPG, JPEG, GIF, BMP, PNG
  • Battery:
    3.7V/3500mAh Rechargeable Battery
  • Power Supply Tablet Input:
    AC100-240V, 50-60HZ
  • Power Supply Tablet Output:
    DC5V 2A (Support USB port charging)
  • Certifications:
    FCC CE
  • Color:
    White
