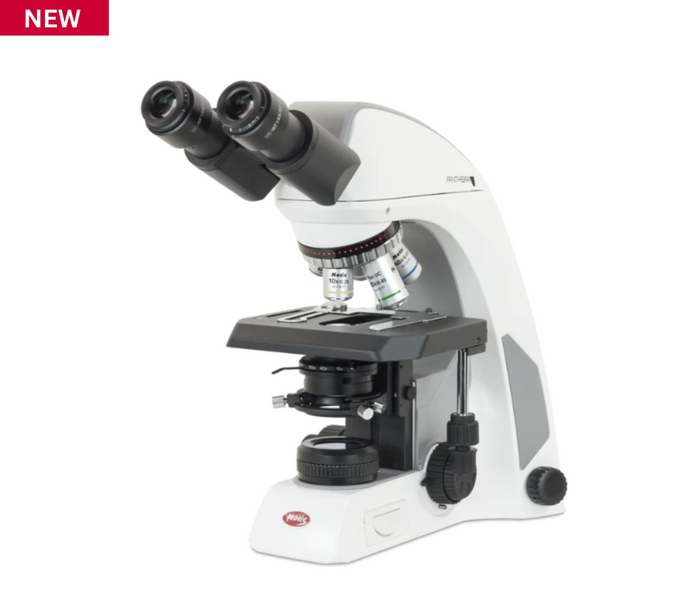

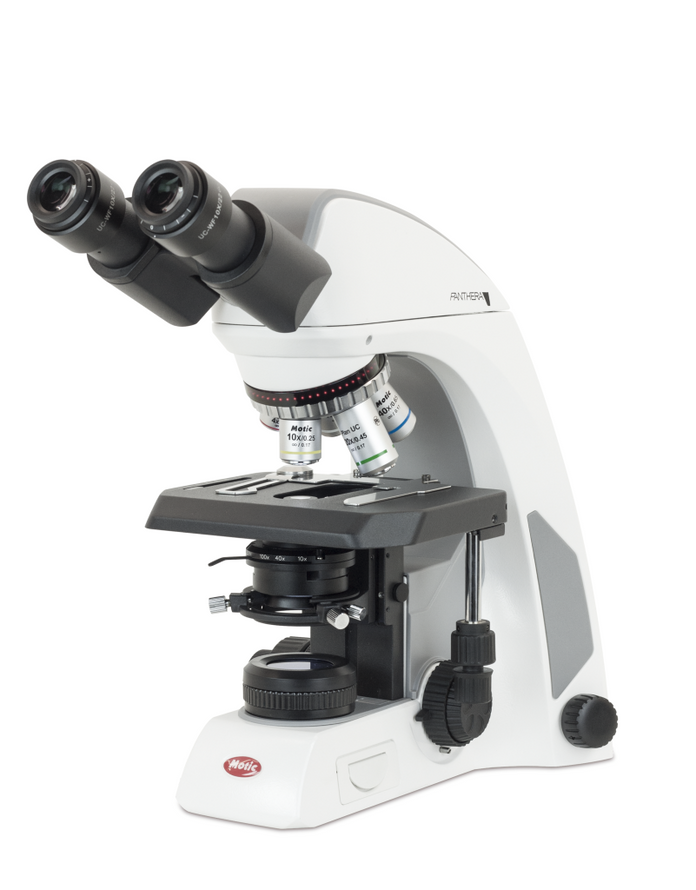

Panthera C2 is a new world-class level cased in a revolutionary technical future-orientated solution, now accessible for life sciences.

Features

The Panthera Generation 2 has been redesigned with better optics and a better lighting system. The components chosen for the Panthera microscopes have been analyzed down to the last detail to find the perfect design in terms of practicality and aesthetics. The new Panthera E2 has been designed to meet the educational needs of university labs and classrooms, and the new Panthera C2 is the perfect choice for usage in clinical and laboratory settings. With the new generation, there is a solution for everyone.


Streamline your workflow with Panthera Cloud! With the Smart CAM digital head and the ImagingOnDevice System, this SMART scope enables you to work directly from your microscope to an HDMI screen or tablet. The LAN port offers users the option to work through DigiClass or remote sharing.


Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Specifications

Overview

  • Nominal Height:
    15.5" (39.37 cm)
  • Nominal Width:
    8.3" (21.08 cm)
  • Nominal Length:
    11.1" (28.19 cm)

Technical Data

  • Optical System:
    Colour Corrected Infinity Optical System (CCIS)
  • Observation Tube:
    Binocular head, Siedentopf type 25°, 360° swiveling
  • Sensor Type:
    CMOS
  • Sensor Size:
    1/2.5"
  • Capture Resolution Info:
    8MP
  • Condenser:
    Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
  • Darkfield:
    Optional slider/turret
  • Data Transfer:
    Wi-Fi, HDMI, Ethernet
  • Diaphragm:
    Iris diaphragm
  • Diopter Adjustment:
    On both eyepieces, ±4 diopter
  • Eyepieces:
    Widefield UC-WF10X/22mm with diopter adjustment
  • Filter Holder:
    On top of the illuminator with fixing cap
  • Fine Focus Precision:
    2 µm
  • Focus Mechanism:
    Coaxial coarse and fine focusing system with tension adjustment
  • Focusing Stroke:
    25 mm
  • Illumination Features:
    Motic LightTracer. Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator
  • Illumination Interchangeability:
    Halogen/LED and LED color temperature interchangeability
  • Inclination:
    25° inclined, 360° swiveling
  • Interpupillary Distance:
    48-75 mm
  • Live Display Mode through Ethernet:
    1280 x 720, 1920 x 1080 pixels (Full HD)
  • Live Display Mode through HDMI:
    1920 x 1080 (Full HD)
  • Live Display Mode through Wi-Fi:
    1920 x 1080 (Full HD)
  • Nosepiece:
    Reversed quintuple, coded
  • Objective Classification:
    CCIS UC Plan Achromatic (Pb free), DIN
  • Objective Mounting Thread:
    W 4/5'' x 1/36'' (RMS standard)
  • Objectives:
    4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm)
  • Other Features:
    USB 2.0 for external Devices (x2)
  • Phase Contrast:
    Optional slider/turret
  • Polarization:
    Optional add-on
  • Stage:
    Compact mechanical stage with built-in low position rockless coaxial stage control and sample holder
  • Stage Size:
    185 x 145 mm
  • Stand Type:
    Upright
  • Standard Contrast Technique:
    Brightfield
  • Transmitted Illumination:
    Koehler LED 3W & Quartz halogen 6V/30W with intensity control
  • Travel Range X&Y:
    75 x 50 mm
  • Upper Limit Stop:
    Upper limit stop preset but adjustable
  • Software:
    ImagingOnDevice System (Panthera App embeded)
  • Transformer:
    Internal
  • Power supply:
    110-240V (CE)
  • Accessories Included:
    Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, halogen bulb, LED module, HDMI Cable, Wi-Fi USB dongle, calibration slide
  • Weight Net:
    8.8kg
