The BA310 is designed for the rigors of daily routine work in the demanding applications of universities, clinics, laboratories, and many other life sciences or medical applications requiring quality optical performance.

Features

The BA310 is designed for the rigors of daily routine work in the demanding applications of universities, clinics, laboratories, and many other life sciences or medical applications requiring quality optical performance. BA310's full Kohler configuration provides maximum illumination quality for even the most demanding samples. Additional contrast methods like Phase contrast, polarization, and darkfield and discussion/teaching devices ensure that the BA310 offers long term functionality to all user levels.

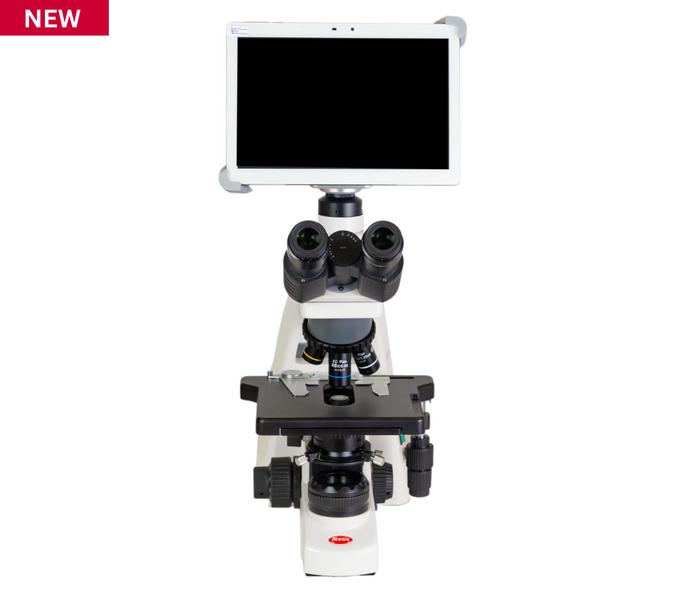

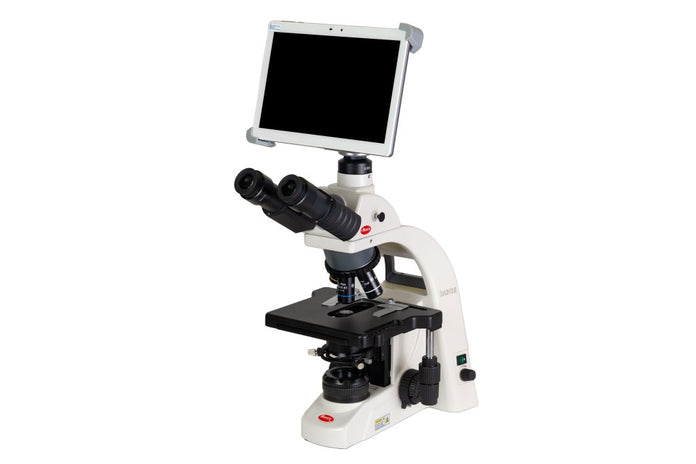

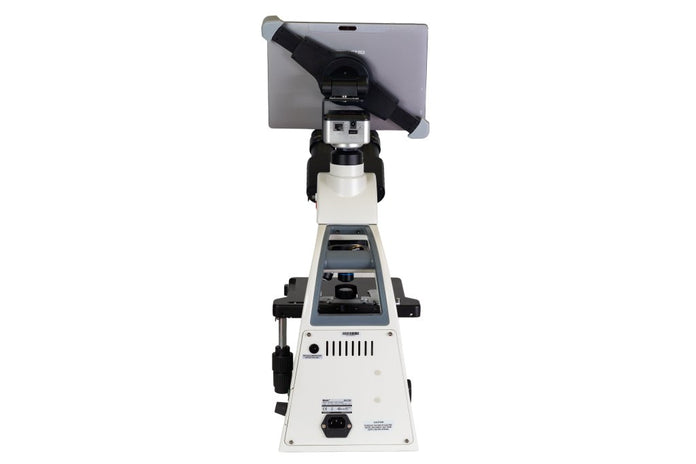

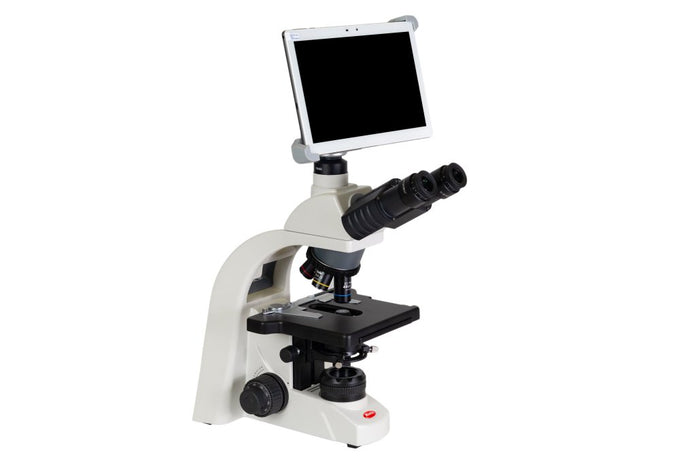

This digital camera bundle comes with:


  • BA310E LED Trinocular
  • Moticam BTI10
  • Compatible C-mount adapter

The BA310E model introduces superior improvements both in optical and mechanical performance. The ELITE model's addition of a new rackless stage concept without prominent gear rack allows an even more convenient use of the x/y movement. For full freedom of illumination options, the new model has a complete and easy interchangeability of its 6V/30W Halogen bulb with LED modules.

Specifications

Overview

  • Nominal Height:
    15.7" (39.88 cm)
  • Nominal Width:
    8.7" (22.1 cm)
  • Nominal Length:
    15.7" (39.88 cm)

Technical Data

  • Observation Tube:
    Trinocular head, Siedentopf type, 360° swiveling
  • Optical System:
    Colour Corrected Infinity Optical System (CCIS)
  • Condenser:
    Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
  • Darkfield:
    Optional slider/turret
  • Diaphragm:
    Iris diaphragm
  • Diopter Adjustment:
    On both eyepieces, ±5 diopter
  • Eyepieces:
    Widefield N-WF10X/20mm with Diopter Adjustment
  • Filter Holder:
    On top of the illuminator with fixing cap
  • Fine Focus Precision:
    2 µm
  • Fluorescence:
    Optional LED
  • Focus Mechanism:
    Coaxial coarse and fine focusing system with tension adjustment
  • Focusing Stroke:
    20 mm
  • Illumination Interchangeability:
    Quartz halogen 6V/30W or LED 3W
  • Inclination:
    30° inclined, 360° rotating
  • Interpupillary Distance:
    48-75 mm
  • Nosepiece:
    Reversed quintuple
  • Objective Classification:
    CCIS EC Plan Achromatic, DIN
  • Objective Mounting Thread:
    W 4/5"x1/36" (RMS standard)
  • Objectives:
    4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm)
  • Phase Contrast:
    Optional slider/turret
  • Polarization:
    Optional add-on
  • Stage:
    Mechanical stage with built-in low position rackless coaxial stage control with tension adjustment and sample holder
  • Stage Size:
    180 x 170 mm
  • Stand Type:
    Upright
  • Standard Contrast Technique:
    Brightfield
  • Transmitted Illumination:
    Koehler Quartz halogen 6V/30W with intensity control
  • Stage Size X&Y:
    80 x 55 mm
  • Upper Limit Stop:
    Upper limit stop preset but adjustable
  • Transformer:
    Internal
  • Power Supply:
    100-240V (CE)
  • Accessories Included:
    Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, spare fuse, cord hanger, thumb screw
  • Weight Net:
    8.6kg

Moticam BTI10 Camera - Technical Data

  • Sensor Type:
    CMOS
  • Sensor Size:
    1/3"
  • Imaging Area:
    5.44 x 3.07 mm
  • Capture Resolution Info:
    4MP (2592x1520 pixels)
  • Live Display Mode Through Wi-Fi:
    1280 x 720, 1920 x 1080 pixels (Full HD)
  • Live Display Mode Through Ethernet:
    1280 x 720, 1920 x 1080 pixels (Full HD)
  • Pixel Size:
    2.0 x 2.0 μm
  • Scan Mode:
    Progressive
  • Data Transfer:
    Wi-Fi (2.4 & 5 GHz), Ethernet
  • Max. Frames Per Second (fps):
    1920 x 1080 @ 30 fps, 1280 x 960 @ 30 fps (depending on Wi-Fi strength)
  • Exposure Time:
    0.03 msec to 0.03 sec
  • Operating Temperature:
    From 0 to +60 degrees Celsius non condensing
  • Max. Signal To Noise Ratio:
    38.3dB
  • Dynamic Range:
    64.6dB
  • Sensitivity:
    1.9V/Lux-sec (550nm)
  • Buttons:
    On/Off
  • Support Device:
    Universal Web Browser (HTML5)
  • Supported OS:
    Windows XP/Vista/7/8/10, Mac OSX, Android 4.0 or higher, iOS 7 or higher
  • Minimum Computer Requirements:
    2GHz dual-core - RAM memory 2GB - Video memory min. 512 MB
  • Lens Mount:
    C-Mount
  • Screen:
    10" IPS Tablet
  • Software:
    MotiConnect App for iOS and Android (pre-installed)
  • Functions:
    Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system
  • Power Supply:
    12V (External Power supply)
  • Tablet Bracket Holder:
    For tablets from 7" to 10"
  • Package Includes:
    USB cable, Motic 4-dot calibration slide, universal power supply 100V-240V (CE)

Moticam BTI10 Tablet - Technical Data

  • Size (mm):
    218 x 136 x 10 mm
  • System:
    Android 10
  • Pre-installed App:
    MotiConnect
  • Language:
    Multi-language
  • CPU:
    2.0 GHz 8-core
  • RAM:
    6 GB DDR3
  • NAND Flash:
    128 GB
  • Display:
    10" (IPS) 16/10 ratio
  • Display Resolutions:
    1920 x 1200
  • Touch Panel:
    Capacitive multi-touch screen
  • GPU:
    MALI-G720 MP3
  • Ports:
    MicroSD/MMC/TF card (support up to 64 GB), 3.5 mm audio, USB-C (USB OTG and charging)
  • Speaker:
    8 Ω/0.7 W x 2
  • Mic:
    MIC (internal)
  • Wi-Fi:
    802.11 b/g/n
  • Bluetooth:
    4.0
  • Camera:
    Front (5 M pixels) + rear (8 M pixels)
  • Support Display Format:
    MPEG-1/2 (DAT, MPG, VOB, TS), MPEG-4, H.263 (3GP, MOV, MP4), H.264 (AVI, MKV, MP4, MOV, 3GP), RM, RMVB, FLV, WEBM
  • Support Audio Format:
    MP3, WMA, MP2, OGG, AAC, M4A, OGA, FLAC, APE, MP1, WAV
  • Picture Format:
    JPG, JPEG, GIF, BMP, PNG
  • Battery:
    3.7 V/3500 mAh rechargeable battery
  • Power Supply Tablet:
    Input AC 100-240 V, 50-60 Hz - Output DC 5 V 2 A (support USB port charging)
  • Certifications:
    FCC, CE
  • Color:
    White
