The BA310 is designed for the rigors of daily routine work in the demanding applications of universities, clinics, laboratories, and many other life sciences or medical applications requiring quality optical performance.

Features

The BA310 is designed for the rigors of daily routine work in the demanding applications of universities, clinics, laboratories, and many other life sciences or medical applications requiring quality optical performance. BA310's full Kohler configuration provides maximum illumination quality for even the most demanding samples. Additional contrast methods like Phase contrast, polarization, and darkfield and discussion/teaching devices ensure that the BA310 offers long term functionality to all user levels.

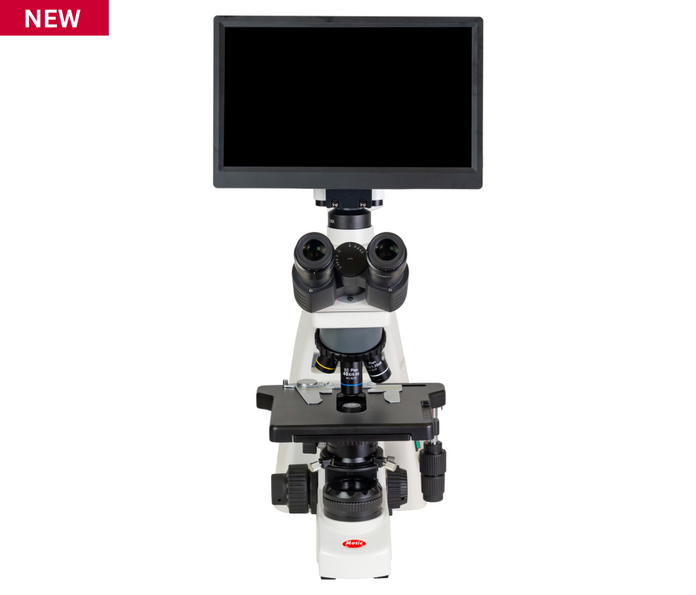

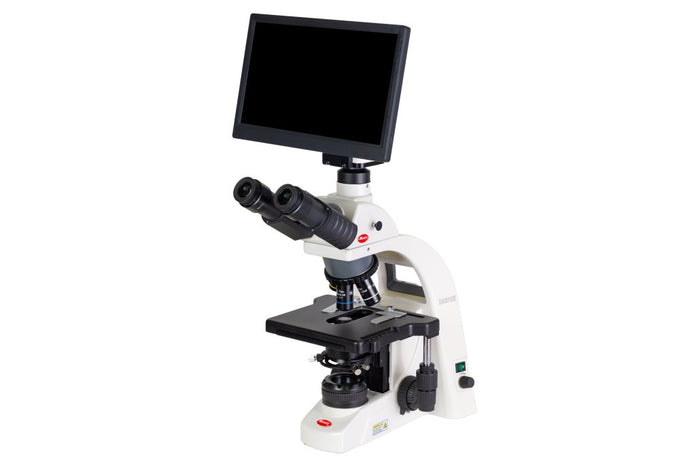

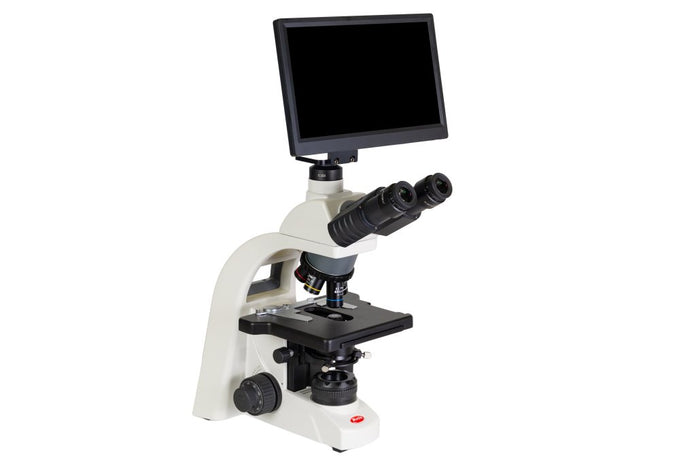

This digital camera bundle comes with:


  • BA310E LED Trinocular
  • Moticam BMH4000X
  • Compatible C-mount adapter

The BA310E model introduces superior improvements both in optical and mechanical performance. The ELITE model's addition of a new rackless stage concept without prominent gear rack allows an even more convenient use of the x/y movement. For full freedom of illumination options, the new model has a complete and easy interchangeability of its 6V/30W Halogen bulb with LED modules.

Specifications

Overview

  • Nominal Height:
    15.7" (39.88 cm)
  • Nominal Width:
    8.7" (22.1 cm)
  • Nominal Length:
    15.7" (39.88 cm)

Technical Data

  • Observation Tube:
    Trinocular head, Siedentopf type
  • Optical System:
    Colour Corrected Infinity Optical System (CCIS)
  • Condenser:
    Focusable and centerable Swing-out Abbe condenser N.A. 0.90/0.13
  • Darkfield:
    Iris diaphragm
  • Data Transfer:
    Optional slider/turret
  • Diopter Adjustment:
    On both eyepieces, ±5 diopter
  • Eyepieces:
    Widefield N-WF10X/22mm with Diopter Adjustment
  • Filter Holder:
    On top of the illuminator with fixing cap
  • Fine Focus Precision:
    1 µm
  • Fluorescence:
    Optional HBO
  • Focus Mechanism:
    Coaxial coarse and fine focusing system with tension adjustment
  • Focusing Stroke:
    27 mm
  • Illumination Features:
    Auto-OFF and Light Memory function. External lamphouse.
  • Illumination Interchangeability:
    Quartz halogen 12V/50W or LED 3W
  • Inclination:
    30° inclined, 360° rotating
  • Interpupillary Distance:
    50-75 mm
  • Nosepiece:
    Reversed sextuple
  • Objective Classification:
    CCIS EC-H Plan Achromatic, DIN
  • Objective Mounting Thread:
    W 4/5"x1/36" (RMS standard)
  • Objectives:
    4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm)
  • Phase contrast:
    Optional slider/turret
  • Polarization:
    Optional sliders/add on
  • Stage:
    Mechanical stage with built-in low position rackless coaxial stage control, ceramic insert and sample holder
  • Stage Size:
    180 x 170 mm
  • Stand Type:
    Upright
  • Standard Contrast Technique:
    Brightfield
  • Transmitted Illumination:
    Koehler Quartz halogen 12V/50W with intensity control
  • Stage Size X&Y:
    80 x 55 mm
  • Upper Limit Stop:
    Upper limit stop preset but adjustable
  • Transformer:
    Internal
  • Power Supply:
    100-240V (CE)
  • Accessories Included:
    Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, spare fuse, cord hanger, thumb screw
  • Weight Net:
    14.2kg

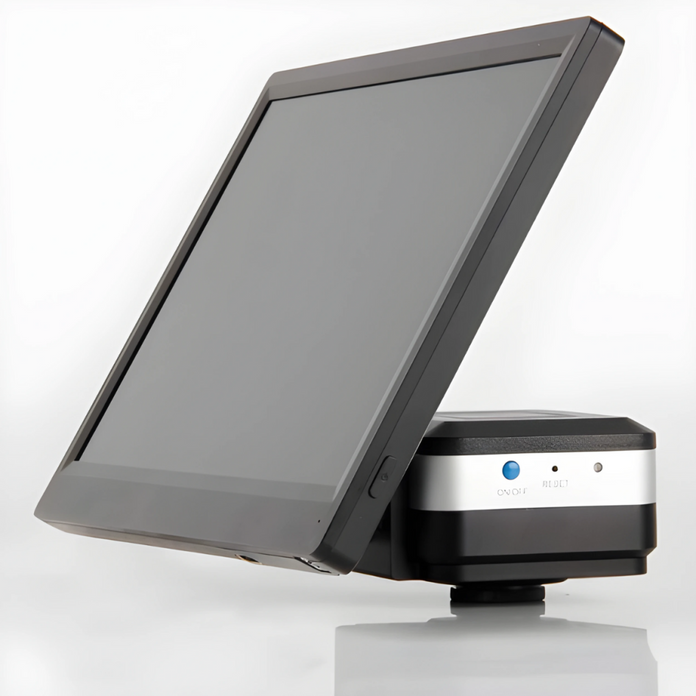

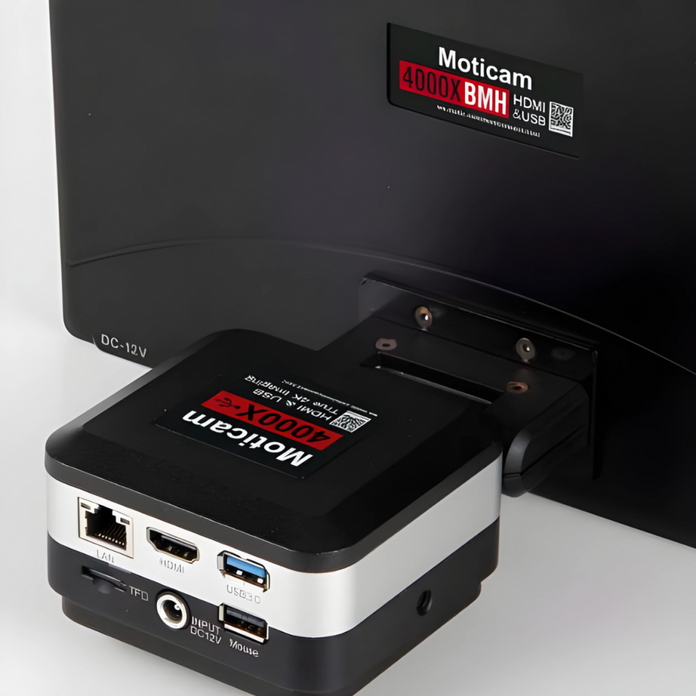

Moticam BMH4000X - Technical Data

  • Sensor Size:
    1/2.8"
  • Image Output:
    HDMI, UXC, wifi 5
  • Capture Resolution:
    8MP
  • Pixel Size:
    1.45 x 1.45 µm
  • Scan Mode:
    Progressive
  • Shutter Mode:
    Rolling shutter
  • Lens Mount:
    C-mount
  • Max. Frames per Second (fps) HDMI:
    (4K) 30fps @ 3840 x 2160
  • Max. Frames per Second (fps) WIFI:
    25fps @ 1920 x 1080, 12fps @ 3840 x 2160
  • Max. Frames per Second (fps) USB:
    (4K) 30fps @ 3840 x 2160
  • Image Capture:
    JPEG/TIFF format with 4K (3840 x 2160) resolution in SD card
  • Video Record:
    4K (30fps @ 3840 x 2160) H264/H265 encoded MP4 file in SD card
  • Screen:
    LCD 11.6" native 1920 x 1080 pixels full HD screen
  • Software:
    Motic Images Plus 3.1 for Windows/Mac OS
  • Standard Tools:
    Still image capture, live image record, zoom in & out, magnifier, ROI, mirror, rotation, split, freeze, cross line, gallery
  • Image Adjustments (AE/AWB):
    Auto/manual exposure mode, gain, target brightness setting, light frequency, auto/manual white balance mode
  • Advanced Settings:
    Saturation, contrast, gamma, sharpness, denoise, user settings, system's time setting, language (English, Chinese and Japanese), format SD card
