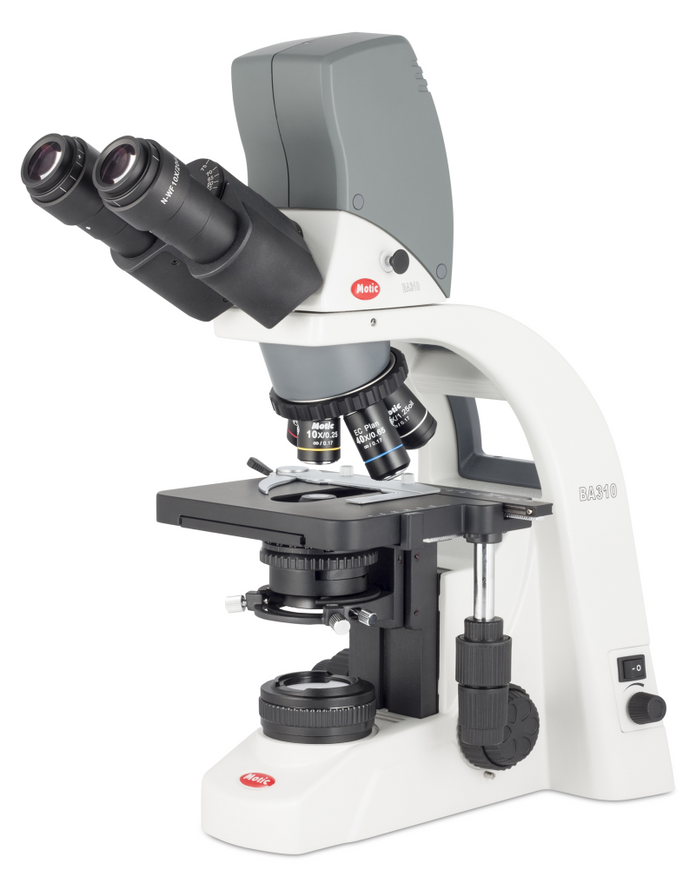

Motic Instruments - 1100401200721 - BA310 Digital

Motic Instruments - 1100401200721 - BA310 Digital

Motic Instruments - 1100401200721 - BA310 Digital

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
BA310 digital.

Features

The demands placed on any routine microscope for daily work needs careful focus on every microscopic detail. The new BA310 series features a powerful adjustable light source to meet both delicate and detailed lighting requirements for all sample types while the fully featured Koehler illumination helps in highlighting even the weakest stained specimens.

Specifications

Overview

  • Nominal Height:
    18" (45.72 cm)
  • Nominal Width:
    8.7" (22.1 cm)
  • Nominal Length:
    15.7" (39.88 cm)

Technical Data

  • Optical System:
    Colour corrected infinity optical system (CCIS)
  • Observation Tube:
    Binocular head, Siedentopf type, 360° swiveling
  • Inclination:
    30° inclined, 360° rotating
  • Interpupillary Distance:
    48-75 mm
  • Diopter Adjustment:
    On both eyepieces, ±5 diopter
  • Eyepieces:
    Widefield N-WF10X/20mm with diopter adjustment
  • Nosepiece:
    Reversed quintuple
  • Objective Classification:
    CCIS EC plan achromatic, DIN
  • Objectives:
    4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-oil (WD 0.15mm)
  • Objective Mounting Thread:
    W 4/5"x1/36" (RMS standard)
  • Stand Type:
    Upright
  • Stage:
    Mechanical stage with built-in low position rackless coaxial stage control with tension adjustment and sample holder
  • Stage Size:
    180 x 170 mm
  • Stage Size X&Y:
    80 x 55 mm
  • Condenser:
    Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
  • Diaphragm:
    Iris diaphragm
  • Focus Mechanism:
    Coaxial coarse and fine focusing system with tension adjustment
  • Fine Focus Precision:
    2 µm
  • Focusing Stroke:
    20 mm
  • Upper Limit Stop:
    Upper limit stop preset but adjustable
  • Filter Holder:
    On top of the illuminator with fixing cap
  • Transmitted Illumination:
    Koehler quartz halogen 6V/30W with intensity control
  • Illumination Interchangeability:
    Quartz halogen 6V/30W or LED 3W
  • Transformer:
    Internal
  • Power Supply:
    100-240V (CE)
  • Accessories Included:
    Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, spare fuse, cord hanger, thumb screw
  • Net Weight:
    8.6kg
