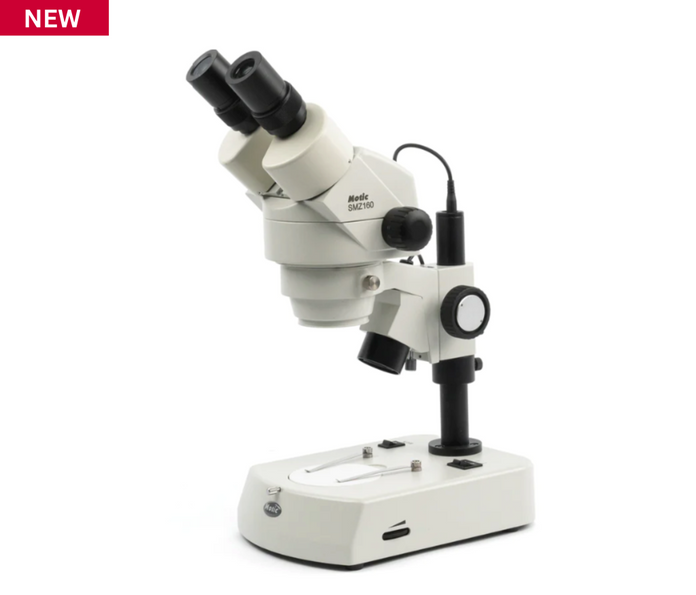

The SMZ-160 is a professional-quality stereo microscope for industrial and educational settings.

Features

The SMZ-160 is a professional-quality stereo microscope for industrial and educational settings. The large zoom ratio of 6:1 and a standard working distance of 100mm provide the flexibility to support a large number of potential applications while the addition of an auxiliary lens or substitute eyepieces extend the magnification up to a maximum of 180X.


Additional contrast methods such as polarization microscopy and darkfield microscopy are easily performed through the addition of optional accessories.

Specifications

Overview

  • Nominal Height:
    15.7" (39.88 cm)
  • Nominal Width:
    6.7" (17.02 cm)
  • Nominal Length:
    9.3" (23.62 cm)

Technical Data

  • Observation Tube:
    Binocular head
  • Optical System:
    Greenough
  • Inclination:
    45° inclined
  • Interpupillary Distance:
    50-75 mm
  • Diopter Adjustment:
    On both tubes, ±5 diopter
  • Eyepieces:
    Widefield WF10X/20mm
  • Objectives System:
    Zoom, ratio 6/1
  • Objectives:
    0.75X ~ 4.5X
  • Working Distance:
    100 mm
  • Stand Type:
    Pole type stand with transmitted illumination
  • Head Holder:
    For Ø 25mm column and Ø76mm head with incident illumination
  • Focus Mechanism:
    Coarse focusing system with tension adjustment
  • Focusing Stroke:
    43 mm

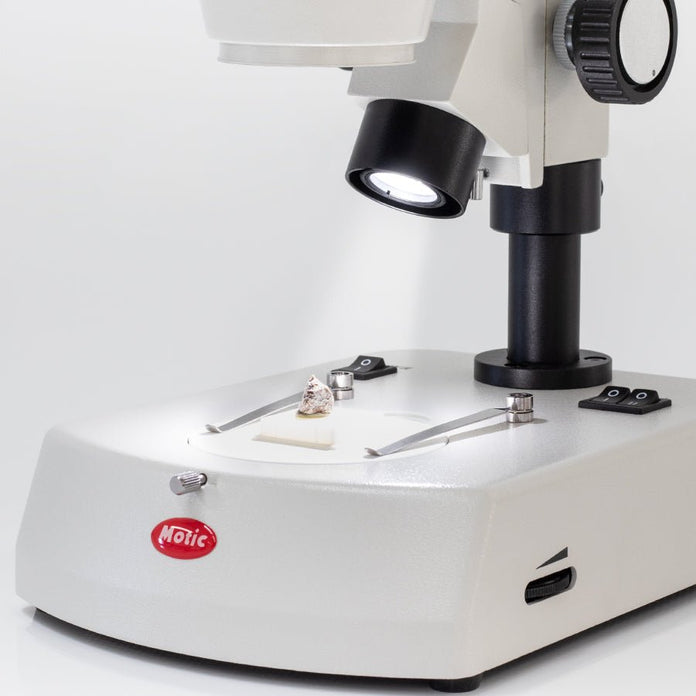

  • Incident Illumination:
    LED 3W with intensity control
  • Transmitted Illumination:
    LED 3W with intensity control
  • Transformer:
    External
  • Power Supply:
    100-240V (CE)
  • Accessories Included:
    Dust cover, black/white and frosted stage plates
  • Base:
    237 x 170 mm
  • Column/Arm:
    Height 215mm, Ø25mm
  • Net Weight:
    4.5kg
  • Standard Contrast Technique:
    Brightfield
