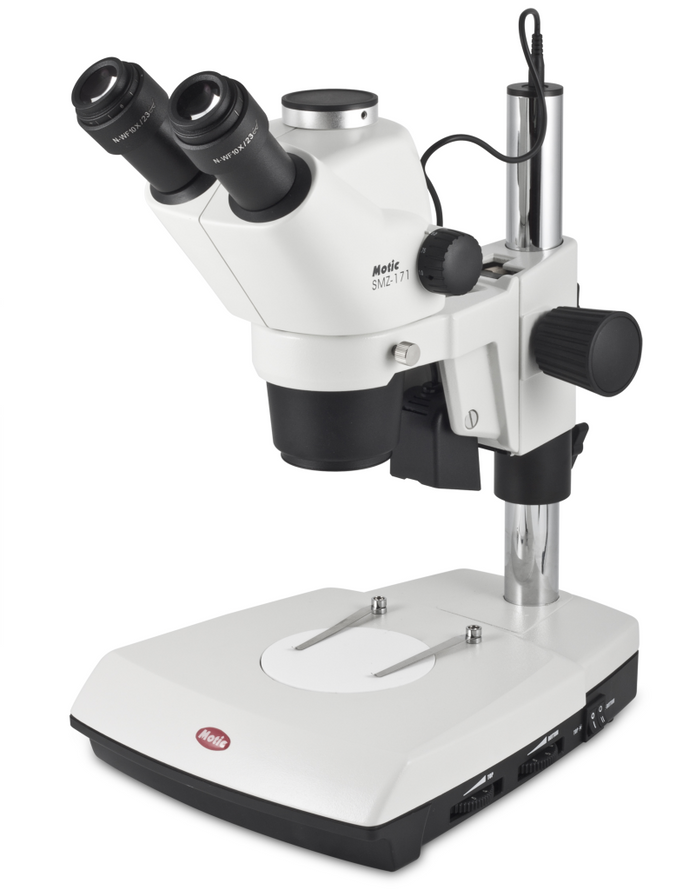

Motic Instruments - 1100200600767 - SMZ-171-TLED Stereo Microscopes

Motic Instruments - 1100200600767 - SMZ-171-TLED Stereo Microscopes

Motic Instruments - 1100200600767 - SMZ-171-TLED Stereo Microscopes

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
The SMZ171 model terminates Motic’s SMZ stereo microscope line by using modern ESD resistant materials and optimized LED illuminations for a wide range of biomedical and material science applications.

Features

A flexible stereo microscope for advanced research work in biomedicine and industrial quality control. The Greenough optical system delivers impressive 3-D images in a zoom of 6.7:1, giving a magnification range of 7.5X-50X in the standard setup. The implemented click-stops allow precise reproduction of magnification. Students and lab technicians benefit from the package solution with integrated transmitted/incident LED illumination, ready to start.


Flexible Stereo Microscope Solution - SMZ-171 Series


  • Flexibility for a large variety of samples: The 4 basic packages of the SMZ-171 represent the entry level of the SMZ-171 stereo line. The compact Plain stands are meant for incident light applications only
  • Improved resolution and transmission: Working with the SMZ-171, it is quite easy to drive down from sample overview to tiny structures. One rotation of the zoom knob give access to the full zoom range of 6,7:1, resulting in a magnification range of 7.5X-50X with standard WF10X/23mm eyepieces
  • Flexibility for opaque and transparent samples: Illumination is the key issue when using a stereo microscope. To reveal all information from the sample, the characteristics of the different light sources and illumination methods have to be understood

Watch the video

Watch the video

Specifications

Overview

  • Nominal Height:
    15.9" (40.39 cm)
  • Nominal Width:
    9.4" (23.88 cm)
  • Nominal Length:
    11.9" (30.23 cm)

Technical Data

  • Observation Tube:
    Binocular head
  • Optical System:
    Greenough
  • Inclination:
    45° inclined
  • Interpupillary Distance:
    52-75 mm
  • Diopter Adjustment:
    On both eyepieces, ±5 diopter
  • Eyepieces:
    Widefield N-WF10X/23mm with diopter adjustment
  • Objectives System:
    Zoom, ratio 6/7/1
  • Objectives:
    0.75X ~ 5X
  • Working Distance:
    110 mm
  • Stand Type:
    Pole type stand with transmitted illumination
  • Head Holder:
    For Ø32mm column and Ø76mm head
  • Focus Mechanism:
    Coarse focusing system with tension adjustment
  • Focusing Stroke:
    49 mm
  • Incident Illumination:
    LED 3W with intensity control
  • Transmitted Illumination:
    LED 3W with reflector and intensity control
  • Illumination Features:
    Transmitted light with tilting reflector for oblique illumination
  • Transformer:
    External
  • Power Supply:
    100-240V (CE)
  • Accessories Included:
    Dust cover, black/white and frosted stage plates
  • Base:
    303 x 239 mm
  • Column/Arm:
    Height 290mm, Ø32mm
  • Net Weight:
    6.2kg
  • Standard Contrast Technique:
    Brightfield
  • Polarization:
    Optional add-on
  • Darkfield:
    Optional add-on
