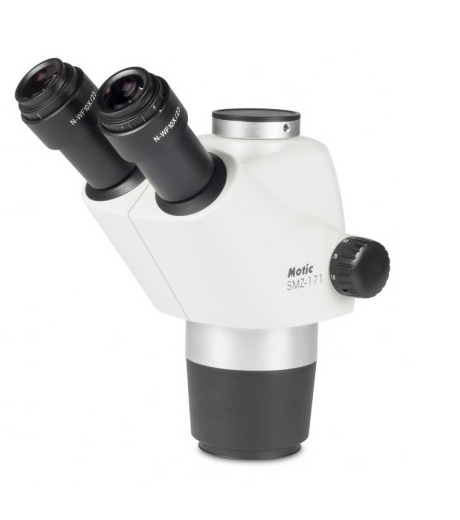

SMZ-171-TH Stereo microscope head.

Features

A stereo microscope head based on a Greenough optical system. The parfocal 6.7:1 zoom optics is meant for OEM purposes or the integration in experimental setups. The trinocular head with 45° inclination is adjustable in a range of 52-75mm Interpupillary distance. The Widefield eyepieces WF10X/23mm provide an enlarged sample overview. A working distance of 110mm gives freedom for manipulation work in a standard magnification range of 7.5X-50X. A fixed light split of 50:50 allows observation and documentation at the same time.

Specifications

Overview

  • Nominal Height:
    14.6" (37.08 cm)
  • Nominal Width:
    9.4" (23.88 cm)
  • Nominal Length:
    11.9" (30.23 cm)

Technical Data

  • Observation Tube:
    Trinocular head
  • Optical System:
    Greenough
  • Inclination:
    45° inclined
  • Trinocular Light Split:
    Fixed 50/50
  • Interpupillary Distance:
    52-75 mm
  • Diopter Adjustment:
    On both eyepieces, ±5 diopter
  • Eyepieces:
    Widefield N-WF10X/23mm with diopter adjustment
  • Objectives System:
    Zoom, ratio 6/7/1
  • Objectives:
    0.75X ~ 5X
  • Working Distance:
    110 mm
  • Accessories Included:
    Dust cover
  • Net Weight:
    1.4kg
  • Standard Contrast Technique:
    Brightfield
