Motic Instruments - 1100105400011 - PX43MET Inverted Industrial Microscopes
Features

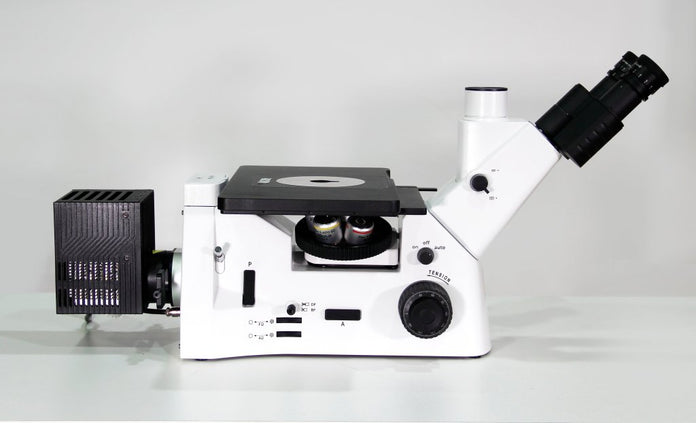

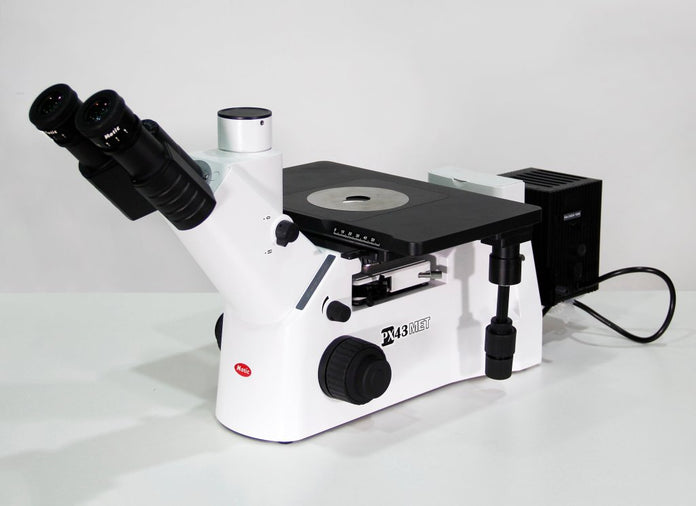

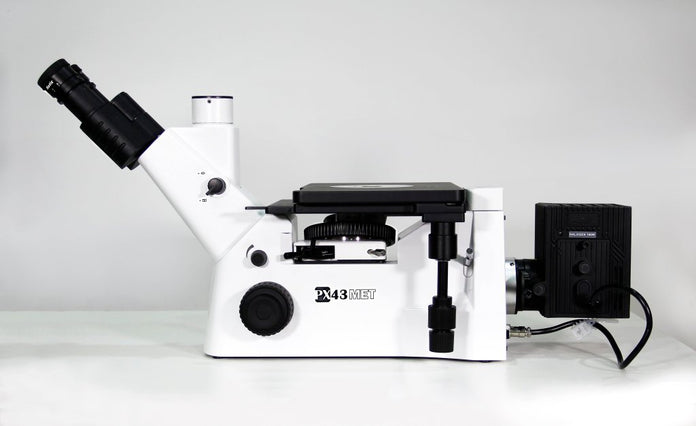

Motic’s PX43MET is a professional Inverted Metallurgical microscope designed to inspect polished cross-sections as well as larger, bulkier materials samples. The microscope is a best fit for automotive, machinery, and metal fabrication industries and similar fields.
This full featured microscope is capable of:
- DIC for better depth imaging
- Polarization
- Brightfield and Darkfield contrast methods
- Advanced measurement, image processing and documentation through a Moticam and the Motic Analysis Software
Specifications
Overview
Technical Data
-
Optical System:Color Corrected Infinity Optical System (CCIS)
-

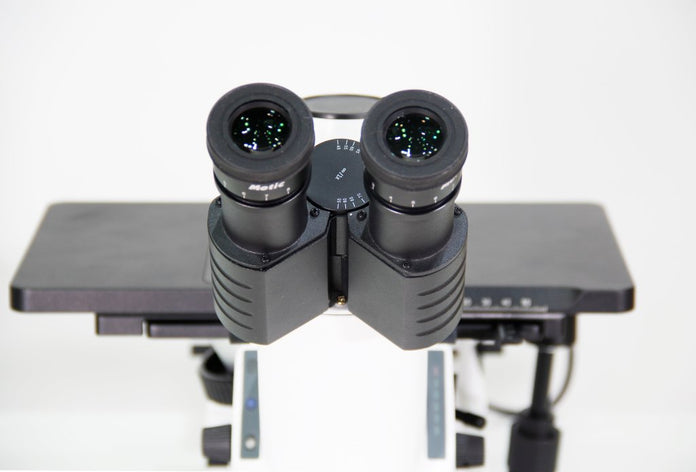

Observation Tube:360° swivel range, height difference 40 mm
-
Interpupillary Distance - Adjustment Range:48 mm to 75 mm
-

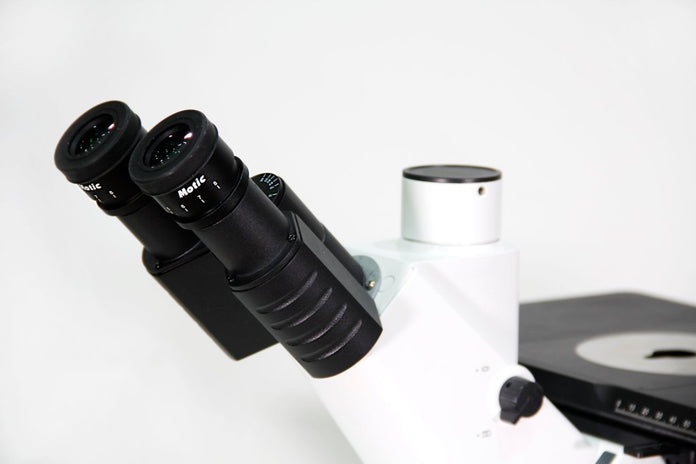

Eyepieces:UC-WF 10X/FN22
-
Trinocular Light Path:20/80
-
Nosepiece:Quintuple Revolving Nosepiece
-
Objectives:Plan S-Apo BD 5X, Plan S-Apo BD 10X, Plan S-Apo BD 20X, LPlan S-Apo BD 50X
-

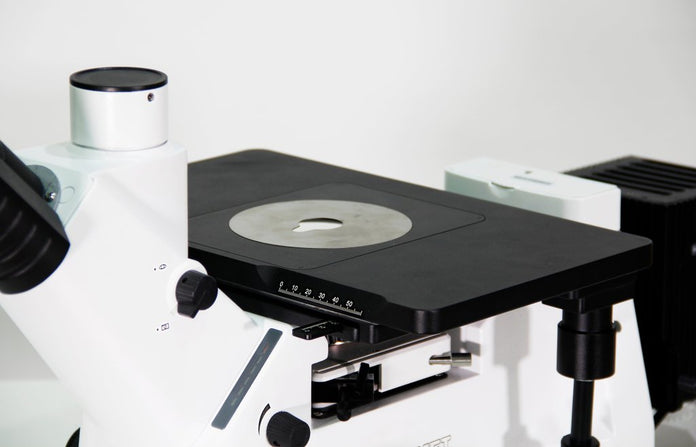

Stage Size (mm) - Size：320(W) x 194(L) mm:
-

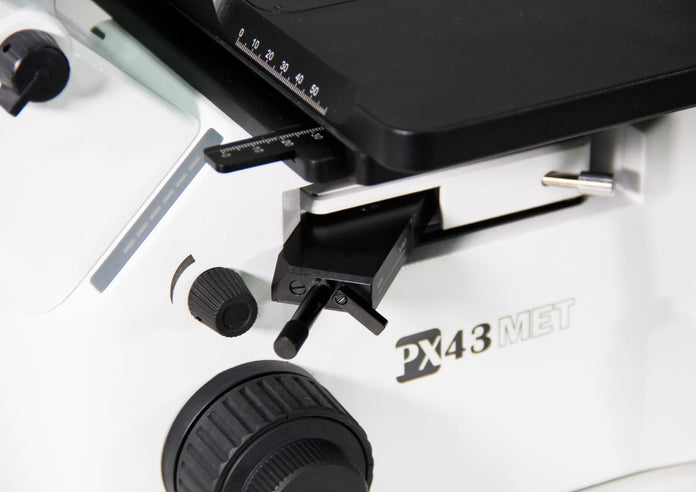

Stage Size (mm) - Stroke：50 x 50 mm:
-

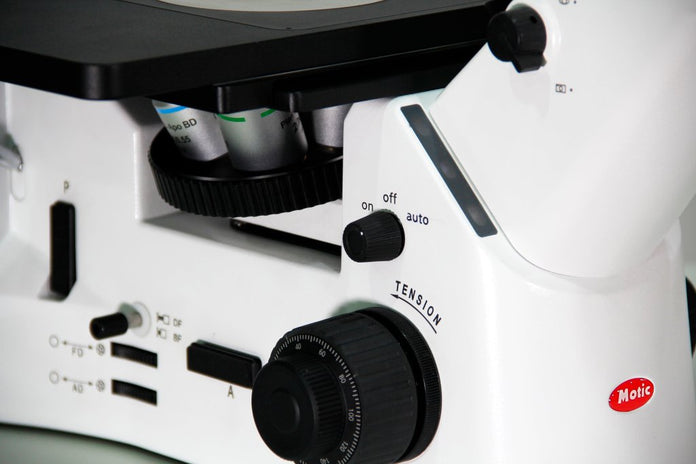

Focus:Course/Fine Focus Knob, Course 42mm/ revolution, Fine 0.2mm/ revolution, 0.002mm/ marks
-
Transmitted Light:Reflected Light 100W Light House RL100.00
-
Electronics:115/230V, 60/50Hz
-

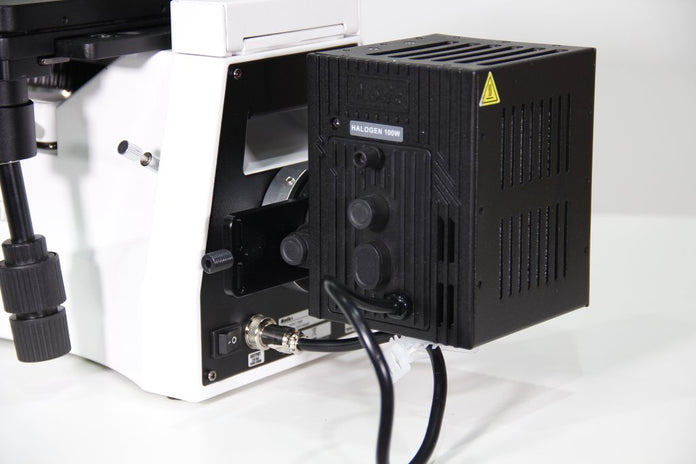

Halogen Light:12V/100W
-
DIC:Optional
-
Analyzer:Optional
-
Polarizer:Optional
