The new PA53 BIO upright laboratory microscopes are designed with the experienced expert in mind. In keeping with Motic’s mission of providing State-Of-The-Art technologies at affordable prices, we are proud to present multiple sophisticated solutions for the research work in hospitals and all life science laboratories. Our PA53 BIO and PA53 BIO FS6 models carry superb optics, ergonomic design and intuitive, automated controls for an efficient workflow, the whole at an unrivalled price/performance ratio. The modularity of the PA53 BIO series allows to create tailor-made solutions for your individual needs. Whether it is about color fidelity and extended visual field for pathology, examination of crystals in urine sediments with Phase Contrast and Polarization in urology or advanced FISH/HER2 analysis of chromosomes with Fluorescence: The PA53 BIO series covers all of your demands.

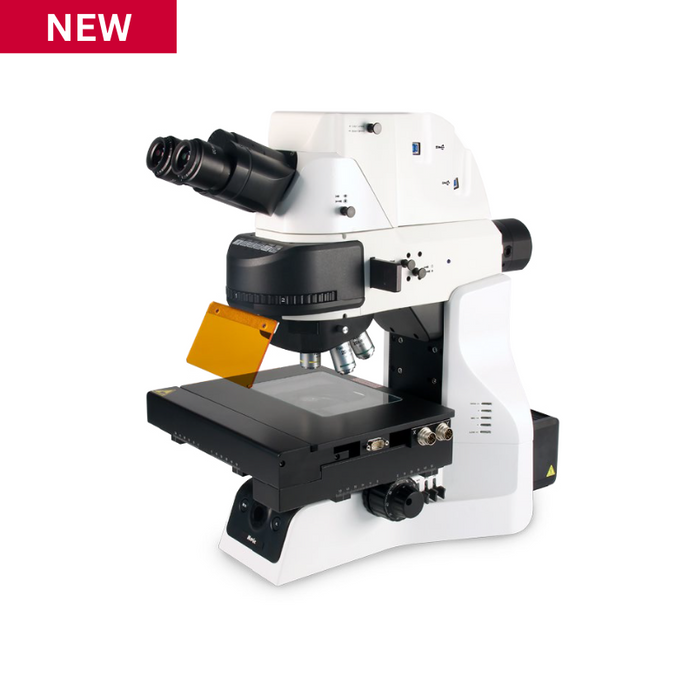

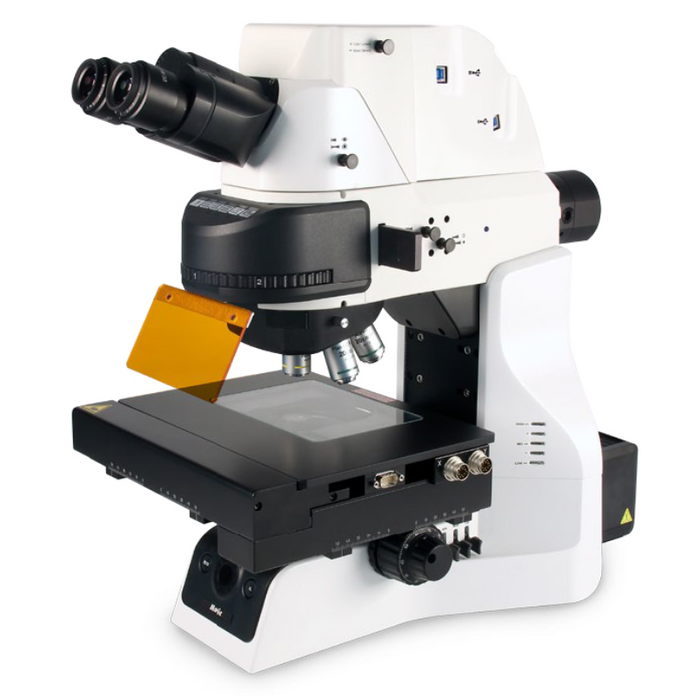

PA53 FS6 Scan, this scanning platform provides full flexibility on scan and stitch of different fluorescent sample. We can select the use of HBO illuminator or high quality LED illuminator, using combination of different fluorochromes; with or without extended focus (excellent solution for FISH), or z-stacked.

"Benefit of using microscope base digital slide scanning system like PA53 Scan".

• Better quality as it is completed optical path with full Kohler illumination setting
• High precision stage allow physical relocation of Region of Interest and rescan with high resolution high N.A. objective
• No limitation on the use of objective, super high resolution scan with oil immersion objective becoming possible
• No limitation on the use of contrasting methods, phase contrast, Polarizing contrast, etc… can be used. To scan sample without staining becoming possible
• PA53 Scan series using a specially designed tube with built-in 1.2 Mpixel camera for focusing and a 5 Mpxiel high resolution sCMOS camera for imaging
• Lumos LED is recommended for the scan which allow stable and homogenous illumination with very low consumable cost. HBO mercury burner can also be used if preferred
• 100mm x 100mm high precision motorized stage with smallest step size of 10nm (repeatability better than 200nm) is used, relocation even with 100x objective is not a problem
• Motorized 5x position nosepiece to allow smooth switching of objectives
