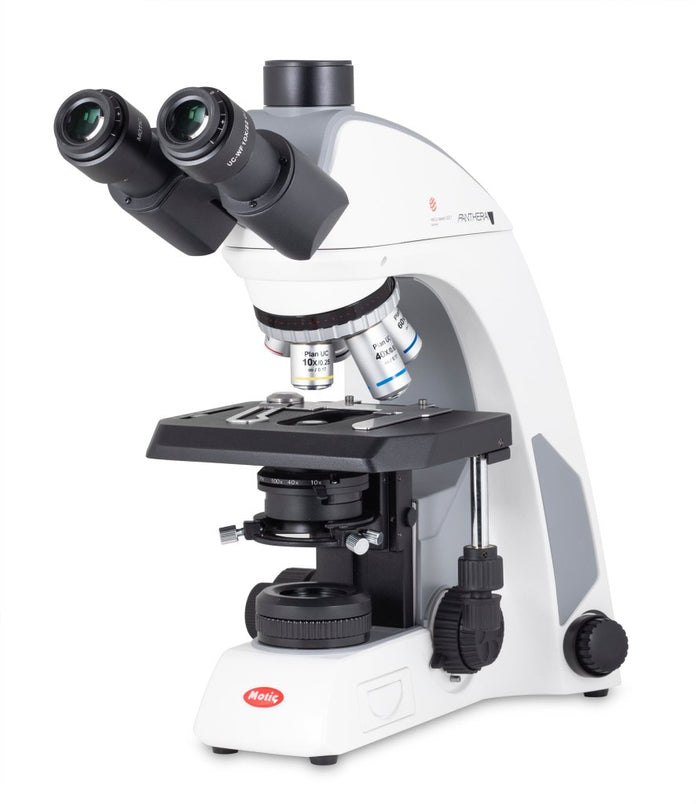

Motic Instruments - 1100104601161 - Panthera C2 Trinocular 50/50 Upright Microscopes, Simple Phase Package

Motic Instruments - 1100104601161 - Panthera C2 Trinocular 50/50 Upright Microscopes, Simple Phase Package

Motic Instruments - 1100104601161 - Panthera C2 Trinocular 50/50 Upright Microscopes, Simple Phase Package

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Panthera C2 is a new world-class level cased in a revolutionary technical future-orientated solution, now accessible for life sciences.

Features

The Panthera Generation 2 has been redesigned with better optics and a better lighting system. The components chosen for the Panthera microscopes have been analyzed down to the last detail to find the perfect design in terms of practicality and aesthetics. The new Panthera E2 has been designed to meet the educational needs of university labs and classrooms, and the new Panthera C2 is the perfect choice for usage in clinical and laboratory settings. With the new generation, there is a solution for everyone.


The Panthera phase package includes all the phase accessories required for phase contrast applications.


Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Specifications

Overview

  • Nominal Height:
    16" (40.64 cm)
  • Nominal Width:
    8.3" (21.08 cm)
  • Nominal Length:
    11.1" (28.19 cm)

Technical Data

  • Optical System:
    Color Corrected Infinity Optical System (CCIS)
  • Observation Tube:
    Trinocular head, Siedentopf type, 360° swiveling
  • Inclination:
    25° inclined, 360° swiveling
  • Trinocular Light Split:
    Fixed 50/50
  • Interpupillary Distance:
    48-75 mm
  • Diopter Adjustment:
    On both eyepieces, ±5 diopter
  • Eyepieces:
    Widefield UC-WF10X/20mm with diopter adjustment
  • Nosepiece:
    Reversed quintuple, coded
  • Objective Classification:
    CCIS UC Plan Achromatic (Pb free)
  • Objective Mounting Thread:
    W 4/5" x 1/36" (RMS standard)
  • Stand Type:
    Upright
  • Stage Size:
    185 x 145 mm
  • Travel Range X&Y:
    75 x 50 mm
  • Condenser:
    Phase contrast 5 position (BF, DF, Ph1, Ph2, Ph3) Turret Condenser
  • Diaphragm:
    Iris diaphragm
  • Focus Mechanism:
    Coaxial coarse and fine focusing system with tension adjustment
  • Fine Focus Precision:
    2 μm
  • Focusing Stroke:
    25 mm
  • Upper Limit Stop:
    Upper limit stop preset but adjustable
  • Filter Holder:
    On top of the illuminator with fixing cap
  • Transmitted Illumination:
    Koehler LED 3W & Quartz halogen 6V/30W with intensity control
  • Illumination Interchangeability:
    Halogen/LED and LED color temperature interchangeability
  • Transformer:
    Internal
  • Power Supply:
    110-240V (CE)
  • Other Features:
    USB 2.0 for external camera power
  • Accessories Included:
    Dust cover, power cord, Allen key, blue filter, halogen bulb, LED module
  • Net Weight:
    8.4kg
  • Phase Accessories:
    Phase slider PH2, Phase centering telescope
