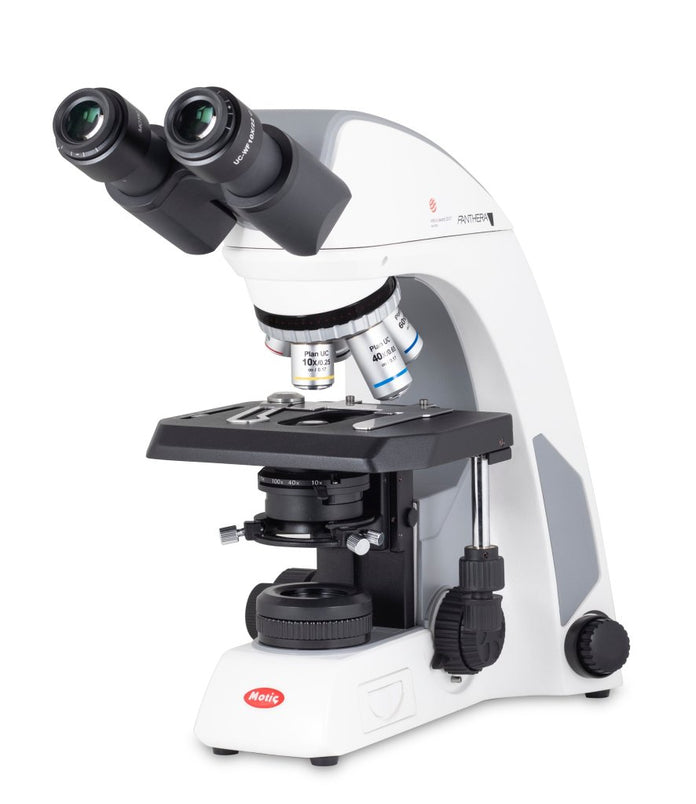

Panthera C2 is a new world-class level cased in a revolutionary technical future-orientated solution, now accessible for life sciences.

Features

The Panthera Generation 2 has been redesigned with better optics and a better lighting system. The components chosen for the Panthera microscopes have been analyzed down to the last detail to find the perfect design in terms of practicality and aesthetics. The new Panthera E2 has been designed to meet the educational needs of university labs and classrooms, and the new Panthera C2 is the perfect choice for usage in clinical and laboratory settings. With the new generation, there is a solution for everyone.


The Panthera C2 is prepared for Phase contrast with slider or turret condenser, Polarization contrast, and Darkfield. It is even possible to integrate a ready-to-go LED Fluorescence module, allowing to apply this advanced method without the multiple problems associated with mercury bulb usage.


Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Watch the video

Specifications

Overview

  • Nominal Height:
    16" (40.64 cm)
  • Nominal Width:
    8.3" (21.08 cm)
  • Nominal Length:
    11.1" (28.19 cm)

Technical Data

  • Optical System:
    Color Corrected Infinity Optical System (CCIS)
  • Observation Tube:
    Binocular head, Siedentopf type, 360° swiveling
  • Inclination:
    25° inclined, 360° swiveling
  • Interpupillary Distance:
    48-75 mm
  • Diopter Adjustment:
    On both eyepieces, ±5 diopter
  • Eyepieces:
    Widefield UC-WF10X/20mm with diopter adjustment
  • Nosepiece:
    Reversed quintuple, coded
  • Objective Classification:
    CCIS UC Plan Achromatic (Pb free)
  • Objective Mounting Thread:
    W 4/5" x 1/36" (RMS standard)
  • Stand Type:
    Upright
  • Stage Size:
    185 x 145 mm
  • Travel Range X&Y:
    75 x 50 mm
  • Diaphragm:
    Iris diaphragm
  • Focus Mechanism:
    Coaxial coarse and fine focusing system with tension adjustment
  • Fine Focus Precision:
    2 μm
  • Focusing Stroke:
    25 mm
  • Upper Limit Stop:
    Upper limit stop preset but adjustable
  • Filter Holder:
    On top of the illuminator with fixing cap
  • Transmitted Illumination:
    Koehler LED 3W & Quartz halogen 6V/30W with intensity control
  • Illumination Interchangeability:
    Halogen/LED and LED color temperature interchangeability
  • Transformer:
    Internal
  • Power Supply:
    110-240V (CE)
  • Other Features:
    USB 2.0 for external camera power
  • Accessories Included:
    Dust cover, power cord, Allen key, blue filter, halogen bulb, LED module
  • Net Weight:
    8.4kg
