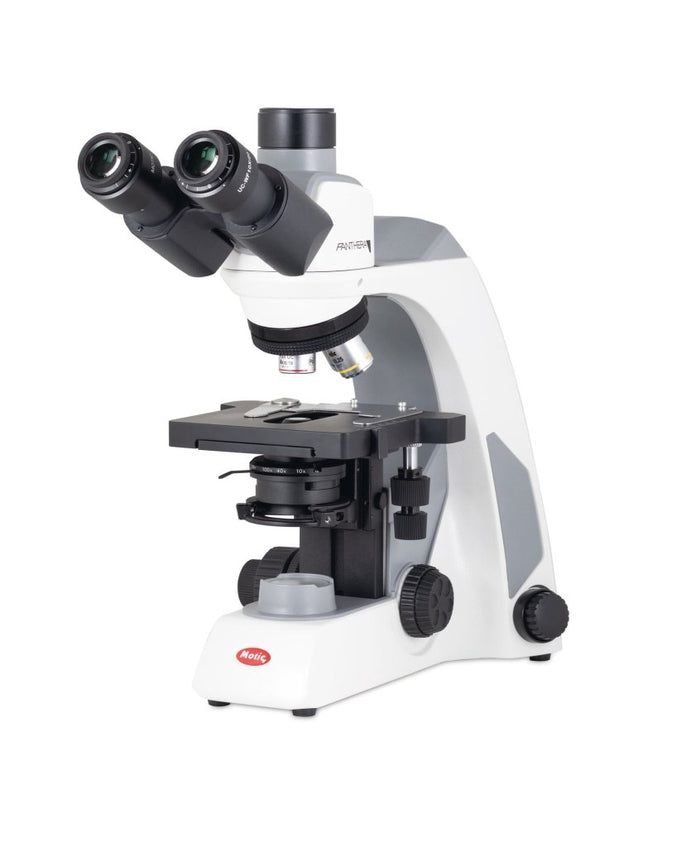

Motic Instruments - 1100104601126 - Panthera E2 Trinocular 50/50 Upright Microscopes

Motic Instruments - 1100104601126 - Panthera E2 Trinocular 50/50 Upright Microscopes
Motic Instruments - 1100104601126 - Panthera E2 Trinocular 50/50 Upright Microscopes

Motic Instruments - 1100104601126 - Panthera E2 Trinocular 50/50 Upright Microscopes

Contact Brent for Assistance

Need help right away? Give our customer service team a call for immediate attention

(510) 909-5846
Brent Kolhede

Your Zip Code: 000000

Change

Ask About This Item

Add the product to a quote to receive more information.

Ask an Expert
Panthera C2 is a new world-class level cased in a revolutionary technical future-orientated solution, now accessible for life sciences.

Features

The Panthera Generation 2 has been redesigned with better optics and a better lighting system. The components chosen for the Panthera microscopes have been analyzed down to the last detail to find the perfect design in terms of practicality and aesthetics. The new Panthera E2 has been designed to meet the educational needs of university labs and classrooms, and the new Panthera C2 is the perfect choice for usage in clinical and laboratory settings. With the new generation, there is a solution for everyone.


This new generation of light microscopes justifies every investment. Reliable, robust construction, modern design, and equipped with smart features for the ambitious work in education areas or small life science labs. A Fixed Koehler setup with 1W LED illumination power and LED intensity indicator guarantees fast access to convincing imaging results.


The Panthera E2 features new CCIS© Plan Ultra Contrast objectives with stunning image quality in the Bright field, Phase contrast, Darkfield, and Polarization.

Specifications

Overview

  • Nominal Height:
    15.6" (39.62 cm)
  • Nominal Width:
    8.3" (21.08 cm)
  • Nominal Length:
    11.1" (28.19 cm)

Technical Data

  • Optical System:
    Colour Corrected Infinity Optical System (CCIS)
  • Observation Tube:
    Trinocular head, Siedentopf type, 360° swiveling
  • Inclination:
    25° inclined, 360° rotating (storage saving), 360° swivelling
  • Trinocular Light Split:
    Fixed 50/50
  • Interpupillary Distance:
    48-75mm
  • Diopter Adjustment:
    On both eyepieces, ± 5 diopter
  • Eyepieces:
    Widefield UC-WF10X/20mm with diopter adjustment
  • Nosepiece:
    Reversed quadruple
  • Objective Classification:
    CCIS UC Plan Achromatic (Pb free)
  • Objectives:
    4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm)
  • Objective Mounting Thread:
    W 4/5"x1/36" (RMS standard)
  • Stand Type:
    Upright
  • Stage:
    Mechanical stage with built-in low position rackless coaxial stage control and sample holder
  • Stage Size:
    140x135mm
  • Travel Range X&Y:
    75x40mm
  • Condenser:
    Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
  • Diaphragm:
    Iris diaphragm
  • Focus Mechanism:
    Coaxial coarse and fine focusing system with tension adjustment
  • Fine Focus Precision:
    2 µm
  • Focusing Stroke:
    25 mm
  • Upper Limit Stop:
    Upper limit stop preset but adjustable
  • Filter Holder:
    On top of the illuminator
  • Transmitted Illumination:
    Fixed Koehler LED 1W with intensity control
  • Illumination Features:
    Nosepiece LED light intensity indicator
  • Transformer:
    Internal
  • Power Supply:
    110-240V (CE), USB 2.0 for battery pack
  • Other Features:
    USB 2.0 for external camera power
  • Accessories Included:
    Dust cover, power cord, Allen key, immersion oil (5ml)
  • Net Weight:
    7.5kg
