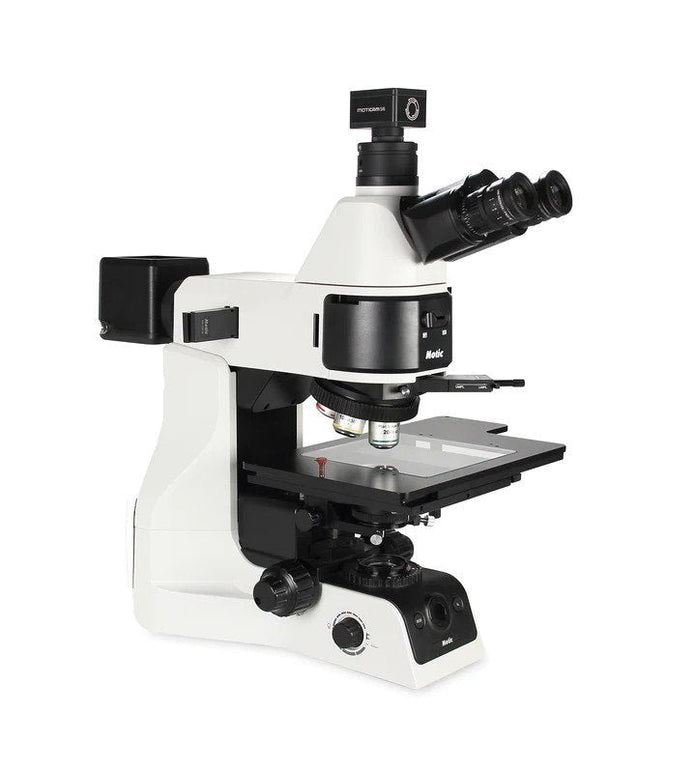

Motic new PA53 MET microscopes introduce a superior optical performance, implemented in an ergonomic hardware setup, and combined with automated functions for precise quantifications.

Features

The PA53MET provides customizable optics and lighting systems, such as BF, BF/DF or DIC to meet all user needs. Reflected Light and Transmitted Light can be used simultaneously for unique samples when needed. This microscope can be upgraded to a motorized stage for Low Magnification Tiling of large samples.

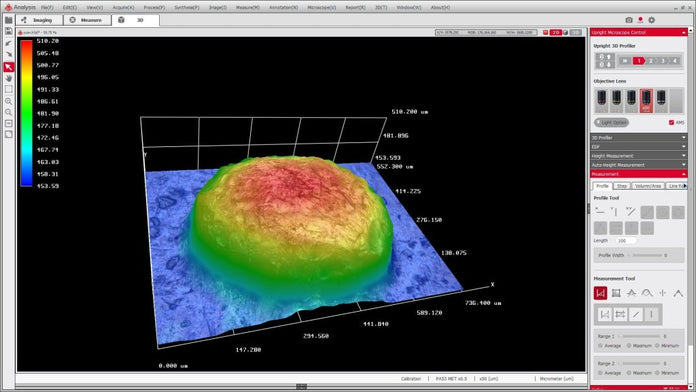

The PA53MET with 3D Profiler is a modular high-end Materials microscope, capable of fully motorized Z-axis, stage, and turret control. These features can be controlled via the software or through an ergonomic joystick and table-top focus stand. Motic’s Analysis Software adds highly accurate measurements in x,y, and z planes at submicron levels. Extended Depth of Field and brilliant 3D Image tools are included with this microscope and software package. A 6MP resolution of Moticam S6 camera is also included, which is dedicated to large-sized monitors and printing purposes.


The PA53MET features superior optical performance and next-generation technology.


Superior Optical Performance


Expertly designed, carefully crafted, high-performance Motic objective lenses provide excellent clarity in any observation environment. Experience this high optical performance for yourself and find out why so many top researchers, inspectors, and technicians praise the quality of Motic Instruments products.


Intelligent, Sleek Design


Advanced ergonomic design, compact size, carefully sourced high-quality materials, and versatile digital capabilities ensure minimal operator fatigue during extended periods of operation.


Innovative Module Design


The compact size of the PA53MET minimizes required installation space. Interchangeable individual modules meet the needs of any application. You can select the appropriate optional accessories for your task: reflected light illuminators, transmitted light illuminators, XY stage, Z-axis, etc.

Specifications

Overview

Technical Data

  • Optical System:
    Colour Corrected Infinity Optical System (CCIS)
  • Illumination:
    Reflected
  • Binocular (Optional):
    Erect type (F.N 25), 20° inclined
  • Trinocular:
    Erect type (F.N 25), 20° inclined
  • Trino Light Path Selection:
    2-step (100/0 | 0/100)
  • Eyepieces:
    10X (F.N 25), Diopter adjustable, Reticle optional
  • Brightfield:
    5-position Nosepiece for Brightfield objective lens with DIC slot
  • Plan S-APO:
    5X/0.15 W.D 20mm, 10X/0.3 W.D 12mm, 20X/0.45 W.D 3mm, 50X/0.8 W.D 1mm, 100X/0.9 W.D 0.5mm (Optional)
  • LPlan S-APO (Optional):
    20X/0.4 W.D 12mm, 50X/0.55 WD 8mm, 100X/0.8 W.D 3.3mm
  • Stroke Range:
    29.5 mm/Coarse and Fine focusing knob
  • Coarse:
    17.7 mm/revolution
  • Fine:
    0.1 mm/revolution (1 μm scale)
  • Focus:
    Upper limit stopper, Torque adjustment ring
  • 3D Profile Module:
    No
  • Transmitted Illumination:
    No
  • Condenser:
    No
  • Stage - 4x4 inch:
    Size 210(W) x 170(D) mm, Stroke 104(X) x 102(Y) mm, metal plate, glass plate
  • Stage - Optional:
    6x6" stage, 6x6" stage, 8" wafer stage, 12" wafer stage
  • Stage - Dimension:
    Approx. 246(W) x 572(D) x 514(H)
  • Stage - Weight:
    Approx. 19kg
