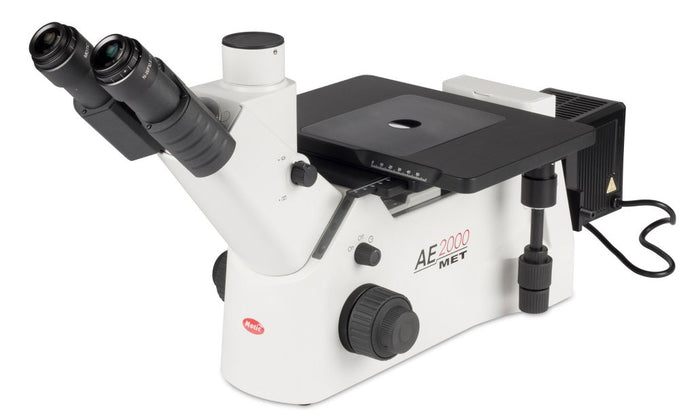

Motic’s AE2000MET is an Inverted Metallurgical microscope designed to inspect polished cross-sections as well as larger, bulky samples within industries such as automotive, machinery, and metal fabrication.

Features

With the new AE2000MET, Motic introduces an Inverted Metallurgical microscope dedicated to the inspection of bulky samples in automotive, machinery and steel industry. Large metal pieces or die casting parts, too large to be treated with an upright microscope model, can easily be examined to perform failure analysis, material research and quality control. Incident Bright Field/Dark Field illumination is an integral part of the instrument’s performance.


AE2000MET Series - Inverted Metallurgical Microscope


With the new AE2000MET, Motic introduces an Inverted Metallurgical microscope dedicated to the inspection of bulky samples in automotive, machinery and steel industry. Large metal pieces or die casting parts, too large to be treated with an upright microscope model, can easily be examined to perform failure analysis, material research and quality control.


  • Robust manufacturing quality for a long lifetime

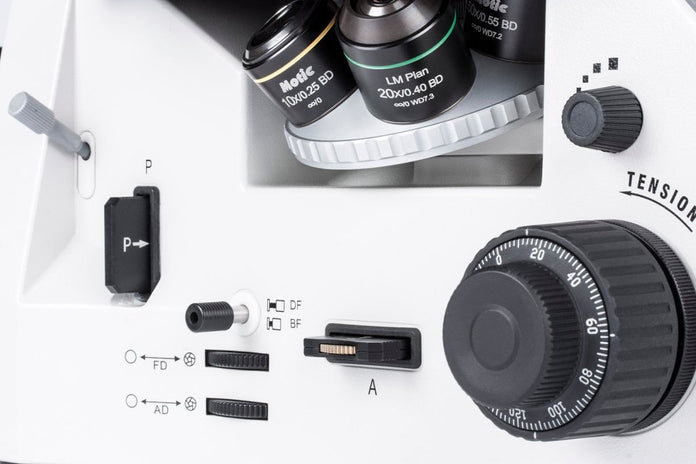

  • New BF/DF objectives for metallurgy
  • Sufficient power resources

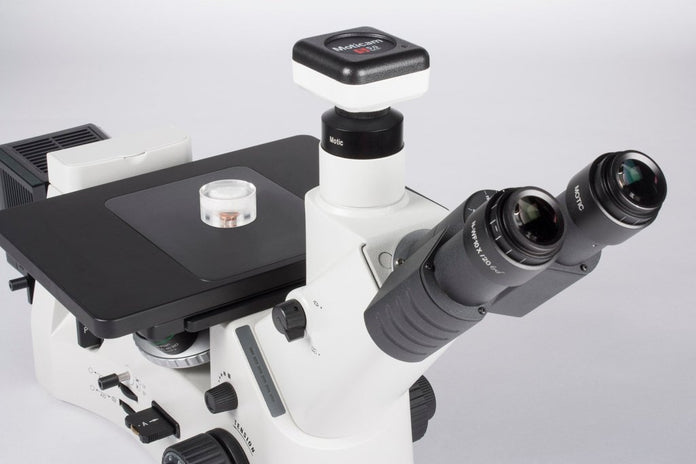

  • A flexible upgrade for digital results

Specifications

Overview

  • Nominal Height:
    13.6" (34.54 cm)
  • Nominal Width:
    11" (27.94 cm)
  • Nominal Length:
    26.5" (67.31 cm)

Technical Data

  • Optical System:
    Colour Corrected Infinity Optical System (CCIS)
  • Observation Tube:
    Trinocular head, Siedentopf type, 360° swiveling
  • Inclination:
    45° inclined
  • Interpupillary Distance:
    48-75 mm
  • Diopter Adjustment:
    On both eyepieces, ±5 diopter
  • Eyepieces:
    Widefield N-WF10X/20mm with diopter adjustment
  • Nosepiece:
    Side facing quintuple
  • Objective Classification:
    CCIS LM Plan Achromatic, DIN
  • Objectives:
    5X/0.13 (WD 17.3mm), 10X/0.25 (WD 16.3mm), 20X/0.40 (WD 7.3mm), 50X/0.55 (WD 7.2mm)
  • Objective Mounting Thread:
    M32
  • Stand Type:
    Inverted
  • Stage:
    Mechanical stage, hard coated with built-in low position coaxial stage control with round and oval stage inserts
  • Stage Size:
    280 x 192 mm
  • Travel Range X&Y:
    50 x 50 mm
  • Focus Mechanism:
    Coaxial coarse and fine focusing system with tension adjustment
  • Fine Focus Precision:
    2 μm
  • Focusing Stroke:
    10 mm
  • Transmitted Illumination:
    Koehler Quartz halogen 12V/100W with intensity control, External lamphouse
  • Illumination Features:
    Sleeping mode
  • Transformer:
    External
  • Power Supply:
    100-240V (CE)
  • Accessories:
    Dust cover, power cord, Allen key, blue filter
  • Net Weight:
    13kg
